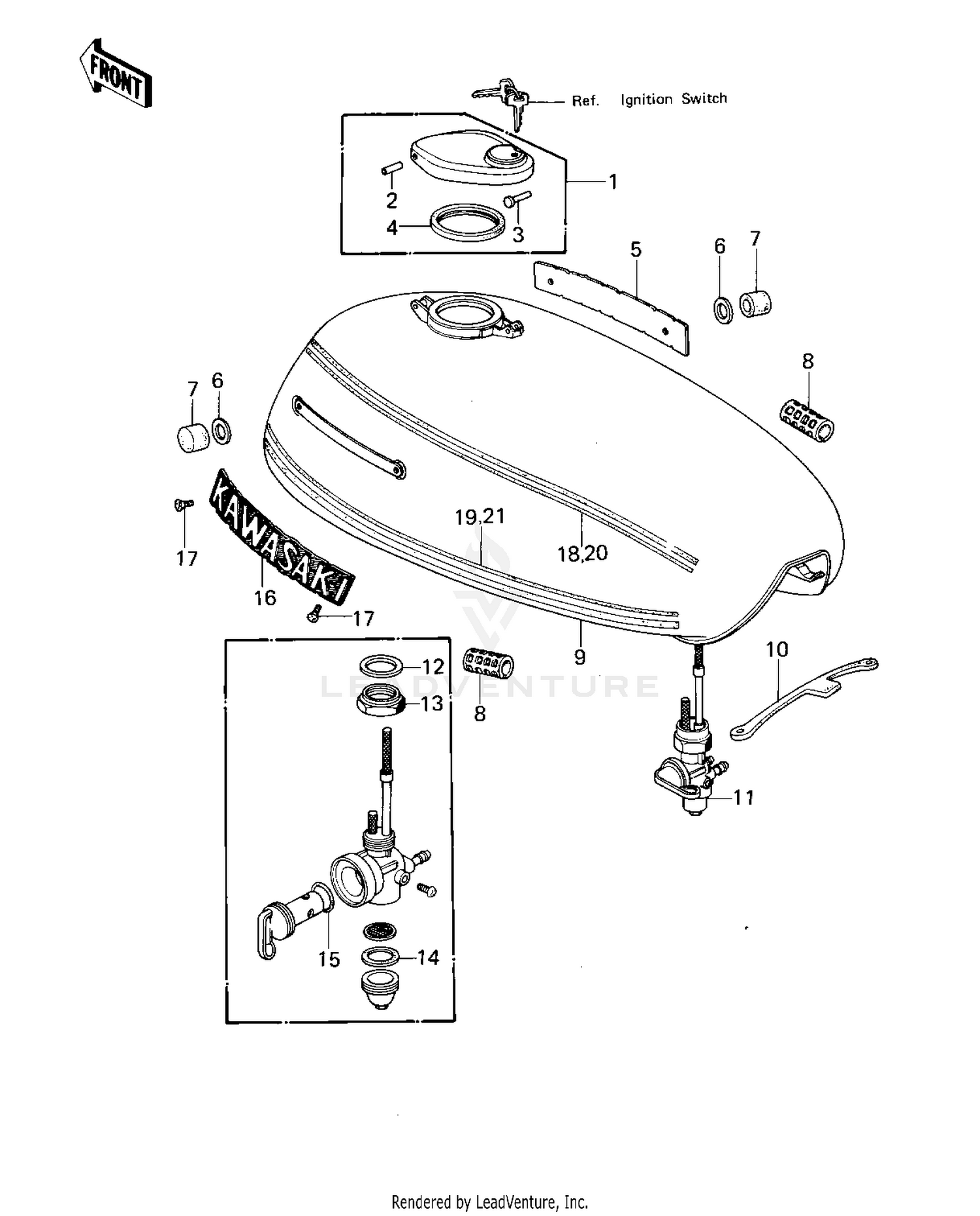

Fuel Tank (kz1000-a1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP,FUEL TANK
51048-012
|
$119.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,CAP HINGE
92043-127
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,HOOK
92043-126
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET-FUEL TANK CAP
51059-008
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM,FUEL TANK
56014-1006
|
$126.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,10.5X26X2.3
92022-044
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER,FUEL TANK
92075-084
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK-FUEL,D.WINE RED
51001-1008-4H
|
$841.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK-FUEL,D.SKY BLUE
51001-1008-4J
|
$841.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND,FUEL TANK
92072-042
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
TAP ASSY,FUEL
51023-1021
|
$151.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
PACKING
92065-081
Superseded by 43049-1071
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL COCK JOINT NUT
51035-009
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
PACKING
51037-010
Superseded by 43049-1070
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING,10MM
670B2010
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM,FUEL TANK
56014-1006
|
$126.83 | ||
|
Unavailable |
|||
|
#17
SCREW-CSK-CROS
221C0306
Superseded by 221AB0306
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
