1980 Kawasaki KZ1000B/K LTD Front Brake ('79-'80 B3/b4) OEM Parts

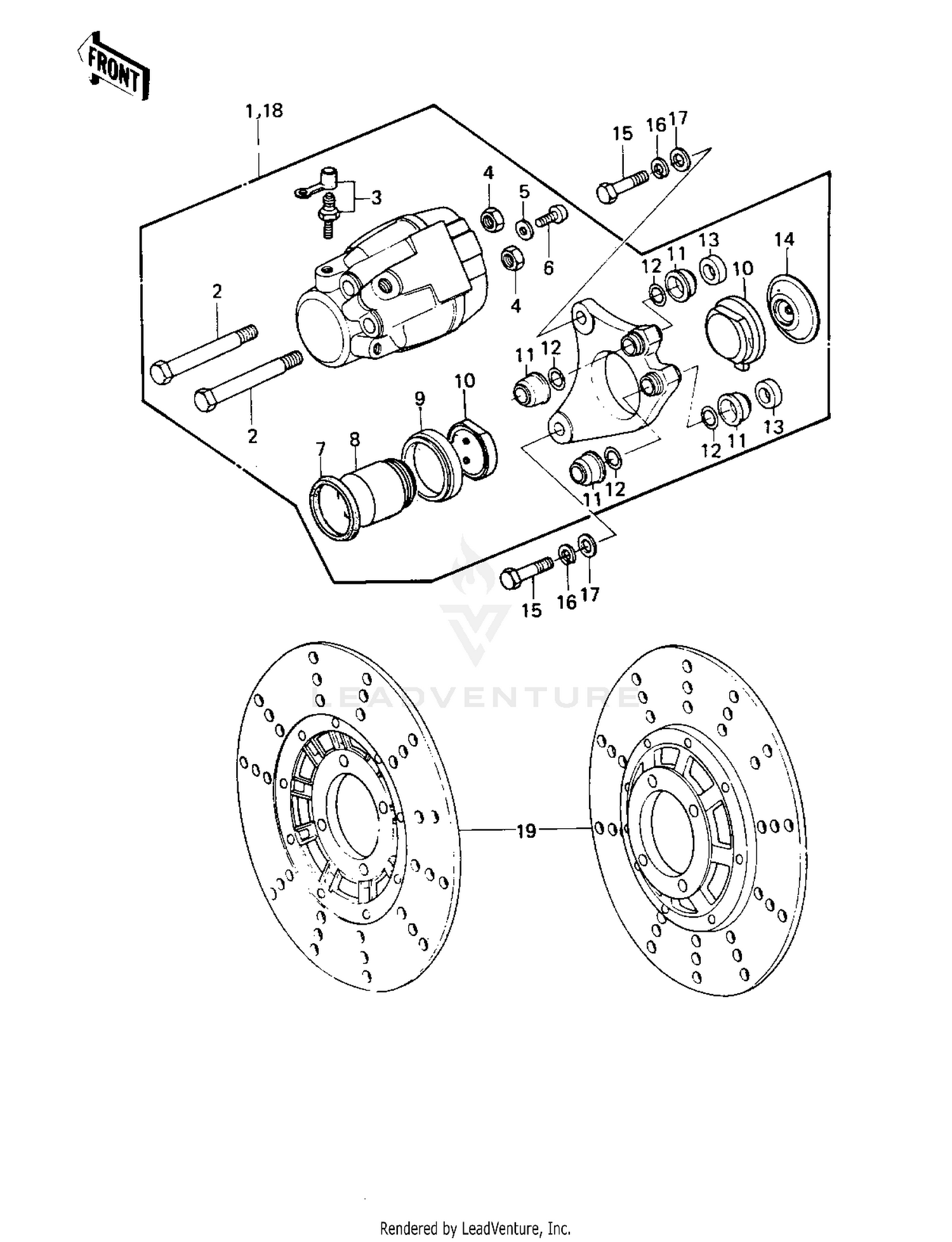

Front Brake ('79-'80 B3/b4) Diagram

Item	MSRP	Qty
#1 CALIPER ASSY,L.H, 43041-1024	$471.59
Available to order. Add to View Price
#2 BOLT 43045-006	$39.27
Unavailable
#3 BLEEDER SET 43085-001	$23.70
Available to order. Add to View Price
#4 NUT-HEX-FINE,10MM 315B1000 Superseded by 315AA1000	$0.58
Available to order. Add to View Price
#5 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#6 SCREW-PAN-CROS,6X12 220B0612 Superseded by 220AA0612	$1.16
Available to order. Add to View Price
#7 PACKING,PISTON SEAL 43049-002 Superseded by 43049-1098	$13.41
Available to order. Add to View Price
#8 PISTON,BRAKE,42M/M 43020-1012	$104.28
Available to order. Add to View Price
#9 DUST SEALD,RUBBER 43054-003	$16.64
Available to order. Add to View Price
#10 PAD SET 43082-1001	$85.48
Available to order. Add to View Price
#11 DUST SHILD,SHAFT 43052-005	$12.06
Available to order. Add to View Price
#12 0 RING 43053-006	$11.98
Available to order. Add to View Price
#13 PLUG 43088-002	$10.38
Unavailable
#14 SPACER 43040-004	$9.65
Unavailable
#15 BOLT 92007-032	$13.33
Available to order. Add to View Price
#15 BOLT,FLANGED,10X38 92001-1293	$9.18
Available to order. Add to View Price
#16 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#17 WASHER-PLAIN-SMALL,10MM 410B1000 Superseded by 410AA1000	$0.58
Available to order. Add to View Price
#18 CALIPER ASSY,R.H 43041-1025	$299.27
Available to order. Add to View Price
#19 DISC PLATE,FRONT BRAK 41080-1022	$475.44
Available to order. Add to View Price
