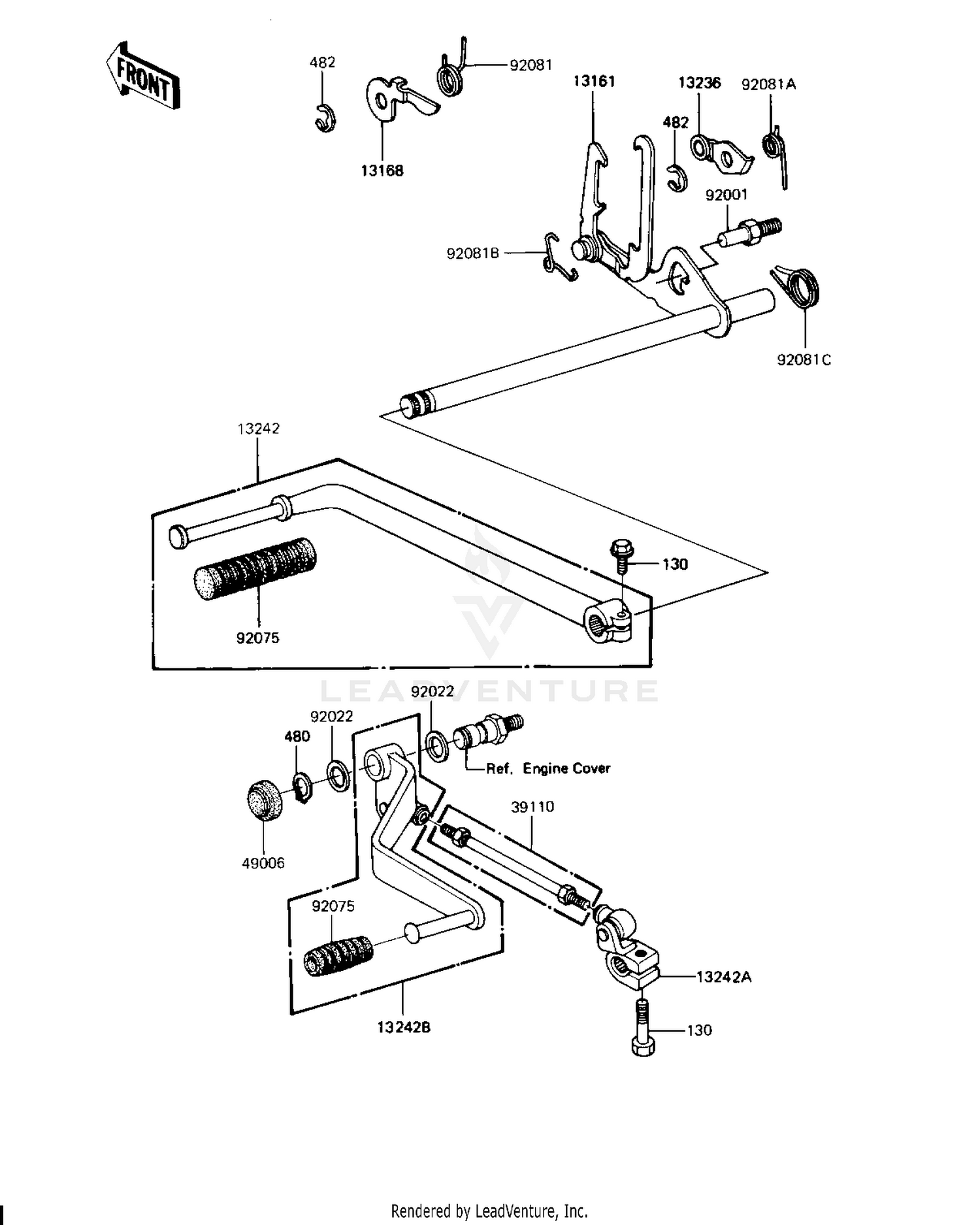

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHA
13161-1023
|
$90.76 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,GEAR POSITIONIN
13168-1074
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,NEUTRAL PO
13236-1029
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#13242
PEDAL ASSY,GEAR CHANG
13242-006
|
$94.89 | ||
|
Available to order. Add to View Price |
|||
|
#13242A
LEVER-ASSY-CHANGE,ROD
13242-1035
|
$80.11 | ||
|
Available to order. Add to View Price |
|||
|
#13242B
LEVER-ASSY-CHANGE,PDL
13242-1047
|
$56.64 | ||
|
Available to order. Add to View Price |
|||
|
#39110
ROD-ASSY-TIE
39110-1002
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CHANGE LEVER
49006-1061
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.5X22X1.2
92022-072
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,POSITIONING LE
92081-1284
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1285
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130P0620
Superseded by 130CA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,12MM
480J1200
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,6MM
482J6000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
