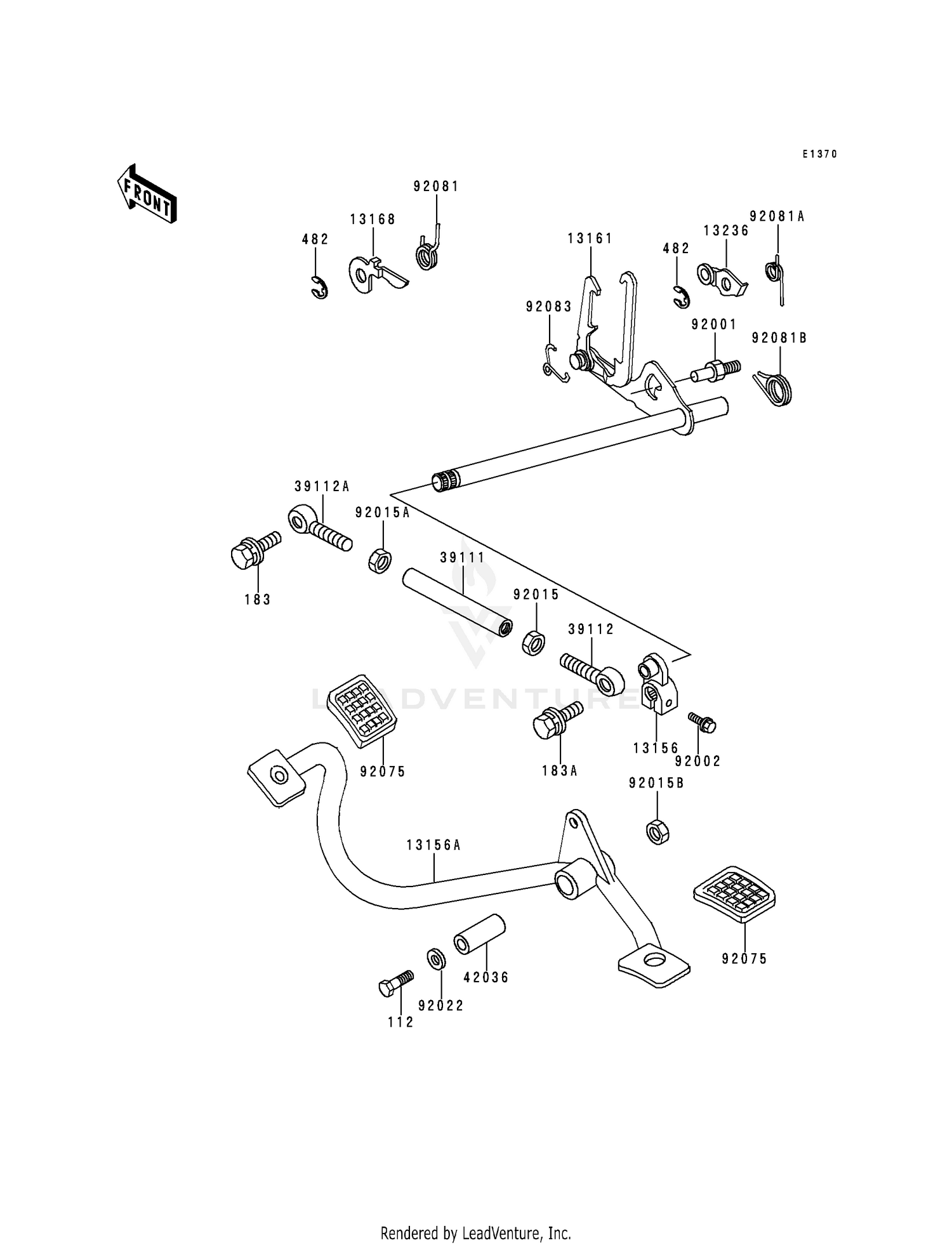

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET
112Y1085
Superseded by 112BD1085
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183Y0825
Superseded by 183BD0825
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#183A
BOLT-UPSET-WS-SMALL
183Y0835
Superseded by 183BD0835
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,6MM
482J6000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#13156
LEVER,GEAR CHANGE
13156-4001
|
$50.54 | ||
|
Available to order. Add to View Price |
|||
|
#13156A
LEVER-CHANGE,PEDAL
13156-4002
|
$98.07 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER-COMP-CHANGE SHA
13161-1023
|
$90.76 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,GEAR POSITIONIN
13168-1074
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,NEUTRAL PO
13236-1029
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-4001
|
$41.92 | ||
|
Available to order. Add to View Price |
|||
|
#39112
ROD END,TIE RH MALE
39112-1001
|
$45.18 | ||
|
Available to order. Add to View Price |
|||
|
#39112A
ROD END,TIE LH MALE
39112-1002
|
$45.18 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,CHANGE LEVER
42036-4006
|
$17.28 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RETURN SPRING
92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1237
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,RH THREAD
92015-1005
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LH THREAD
92015-1006
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,10MM
92015-1962
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X26X2.3
92022-044
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
92075-4031
|
$21.21 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,POSITIONING LE
92081-1284
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1285
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHANGE PEDAL R
92081-1589
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#92083
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
