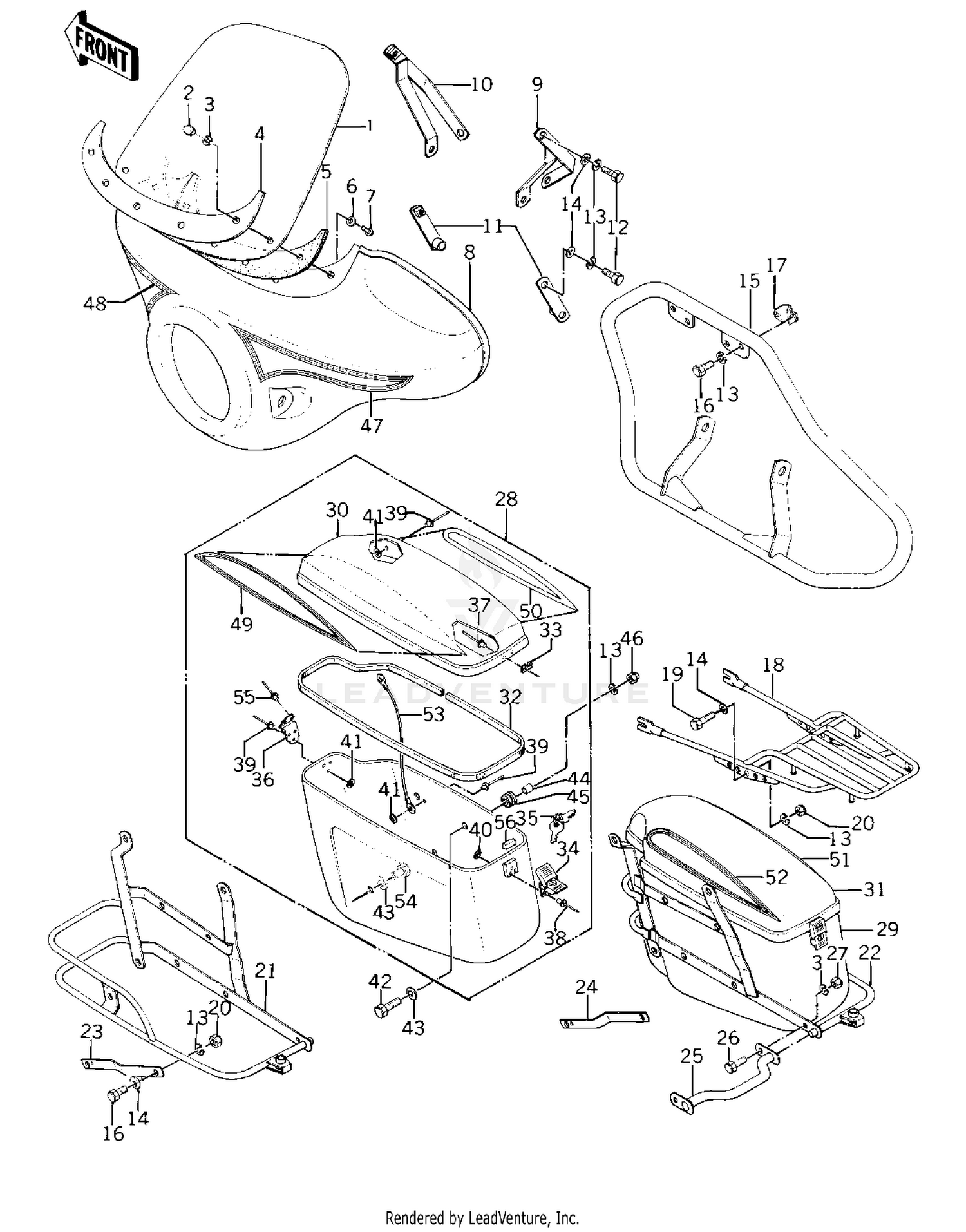

Fairing/guards/saddlebags Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
55043-001
|
$69.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,6MM
92015-009
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE,WINDSHIELD
55045-001
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL,WINDSHIELD
55044-001
|
$6.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
WINDSHIELD BODY
55042-001-8D
|
$407.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,UPPER LH
55046-004
|
$37.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,UPPER RH
55046-005
|
$37.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,LOWER
55046-006
|
$17.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD
55024-006
|
$103.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-SMALL-UPSET,8X20
115G0820
Superseded by 115BA0820
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,GUARD
55025-018
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CARRIER
53029-059
|
$137.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT HEX HEAD 8X35
110N0835
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET,SADDLEBAG LH
58052-003
|
$137.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,SADDLEBAG R.H
58052-004
|
$137.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,SDBAG L.LOWER
58052-005
|
$22.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET,SDBAG R.LOWER
58052-006
|
$22.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET,SDBAG REAR
58052-007
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
SADDLEBAG LEFT
58051-005-8D
|
$366.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
SADDLEBAG,RIGHT
58051-006-8D
|
$366.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
LID,SADDLEBAG LH
14025-1009-8D
|
$128.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
LID,SADDLEBAG RH
14025-1010-8D
|
$128.33 | ||
|
Available to order. Add to View Price |
|||
|
#32
TRIM SEAL SADDLEBAG
39145-4001
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
LATCH,SADDLBAG LID
49031-1003
|
$13.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
LOCK,SADDLEBAG
49031-1002
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#35
KEY SET-TWO KEYS
27008-1001
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
HINGE,SADDLEBAG
53009-1003
|
$17.66 | ||
|
Available to order. Add to View Price |
|||
|
#37
RIVET,SDBAG LID LATCH
92039-1003
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
RIVET,SADDLEBAG LOCK
92039-1002
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
RIVET,SADDLBAG HINGE
92039-1004
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER,RIVET
92022-1015
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER,RIVET
92022-1016
|
$0.24 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#44
COLLAR
92027-280
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER,SADDLEBAG
92075-303
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT FUEL TANK FRONT
92020-007
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#47
DECAL,WINDSHIELD LH
56029-028
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#48
DECAL,WINDSHIELD RH
56029-029
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#49
DECAL,LH SDBAG OUTER
56029-024
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#50
DECAL,LH SDBAG INNER
56029-025
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#51
DECAL,RH SDBAG OUTER
56029-026
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#52
DECAL,RH SDBAG INNER
56029-027
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#53
LANYARD,SADDLEBAG
39073-4001
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT-SMALL-UPSET,8X22
115B0822
|
$4.12 | ||
|
Unavailable |
|||
|
#55
RIVET SDBAG HINGE-LID
92039-4001
|
$0.24 | ||
|
Available to order. Add to View Price |
|||
|
#56
DAMPER,SADDLEBAG LID
92075-4001
|
$0.26 | ||
|
Available to order. Add to View Price |
|||
