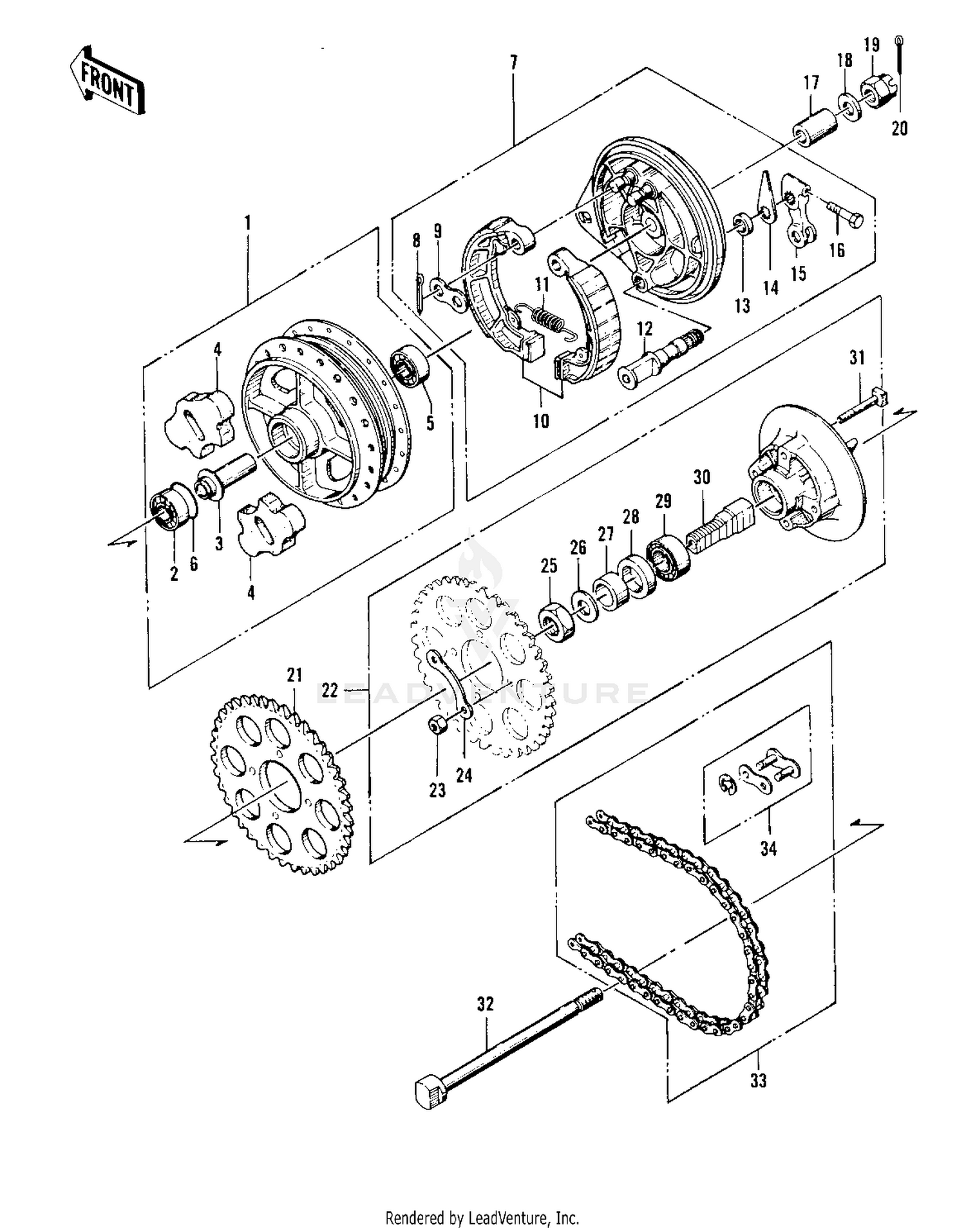

Rear Hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM ASY,RR BK,BUFF
42005-044-80
|
$518.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING-BALL,#6303C3
601B6303
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER,RR HUB BEARING
42010-027
|
$18.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER REAR HUB SHOCK
42014-008
|
$43.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING BALL #6303Z
601B6303Z
|
$23.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL-ASY,RR BRK,BUFF
42006-055-80
|
$307.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-COTTER,2.0X25
550D2025
Superseded by 550AA2025
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,BRAKE SHOE
41045-007
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHOE-BRAKE
42019-003
Superseded by 41048-1122
|
$45.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING BRAKE SHOE
41049-003
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAM SHAFT,REAR BRAKE
42026-024
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,BRAKE CAM
41051-001
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
INDICATOR,RR BK SHOE
41085-016
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER,REAR BRAKE CAM
42029-036
|
$53.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR,REAR AXLE
42032-053
|
$34.86 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,17.3X32X3.2
42046-009
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR SPROCKET,45T
42041-145
|
$164.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
COUPLING ASSY,RR HUB
42008-024
|
$167.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER SPROCKET LOCK
92088-005
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT SLEEVE
42045-006
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,PLAIN,24MM
92022-293
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR,RR HUB COUPLNG
42037-026
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#30
SLEEVE,RR HUB COUPLNG
42036-021
|
$38.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, RR SPROCKET FIT
92003-156
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
AXLE,REAR
42031-050
|
$51.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN,525X94 SH
92057-029
|
$55.91 | ||
|
Available to order. Add to View Price |
|||
|
#34
CHAIN JOINT 530
92058-008
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
