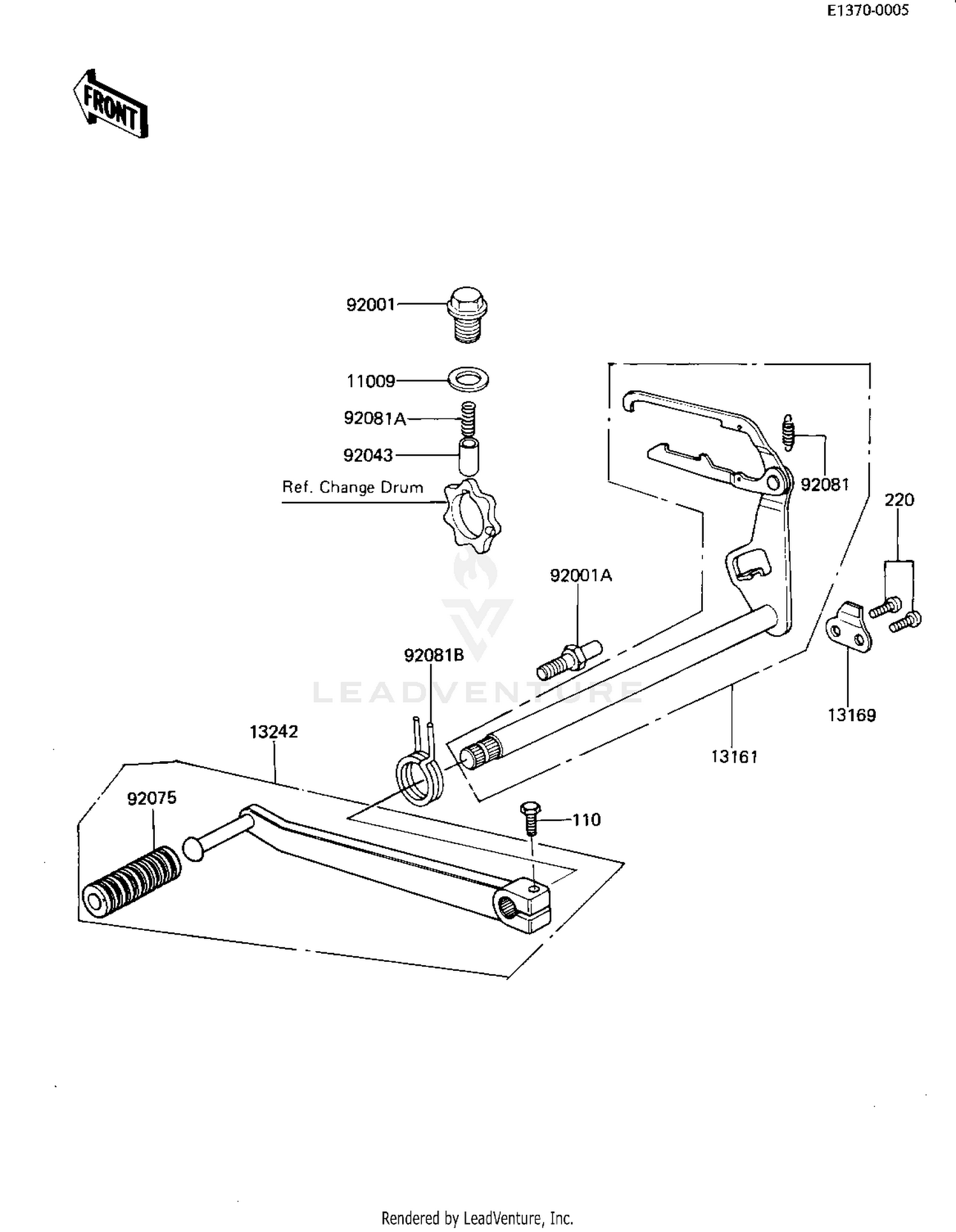

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,15.5X22X1
11009-1008
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER COMP,CHNG SHAFT
13161-1001
|
$83.73 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,GEAR SHIFT LEV
13169-011
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13242
PEDAL ASSY,GEAR SHIFT
13242-017
|
$142.46 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,NEUTRAL POSITION
92001-1037
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-076
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-076
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-112
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
