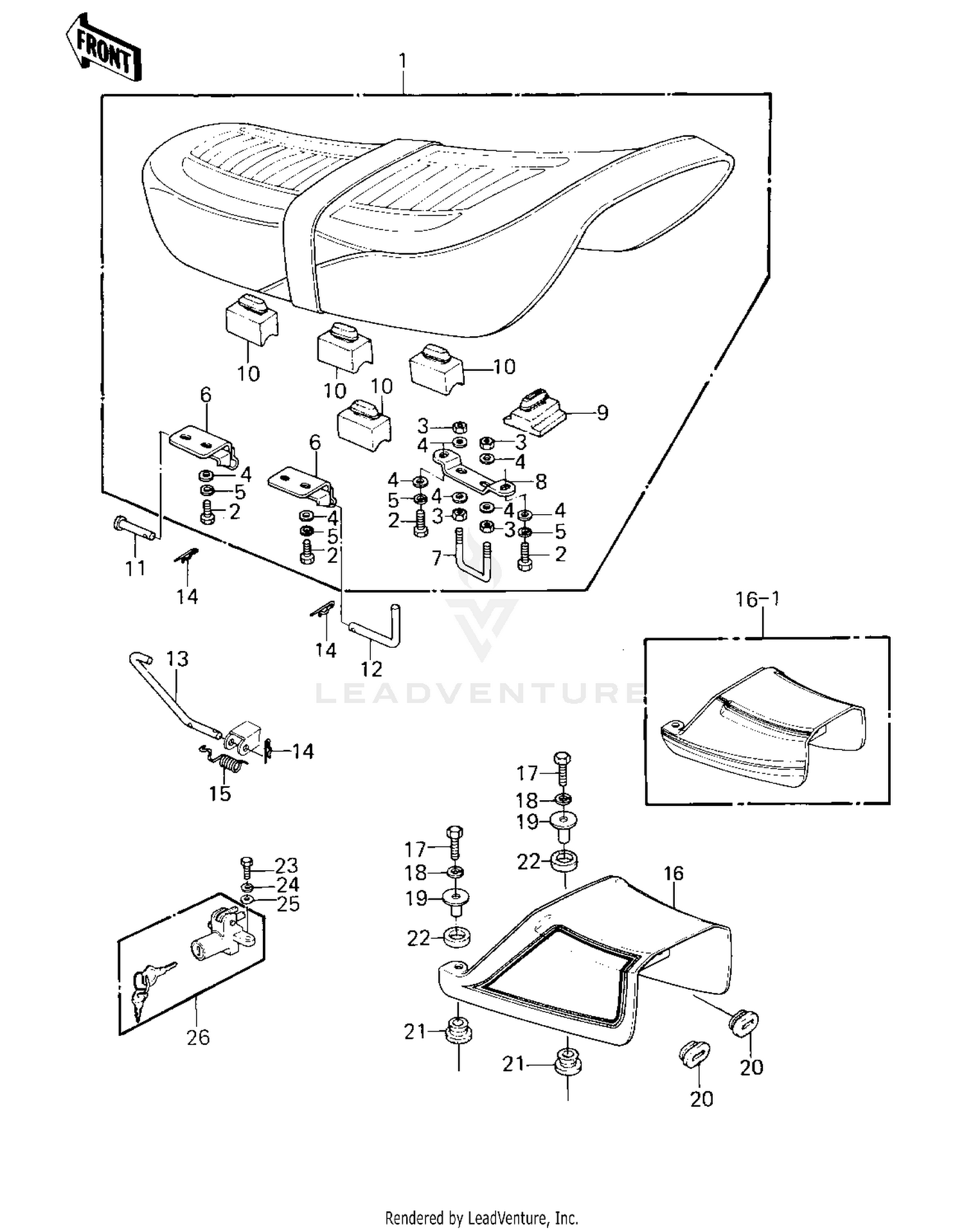

Seat/seat Covers ('80-'81 A1/a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT-ASSY,DUAL
53001-1133
|
$506.50 | ||
|
Available to order. Add to View Price |
|||
|
#1
SEAT-ASSY,DUAL
53001-1133
|
$506.50 | ||
|
Unavailable |
|||
|
#2
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
HINGE,SEAT,FRONT
53009-1010
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CATCH, SEAT
53056-002
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT CATCH
53058-001
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,SEAT
92075-1061
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER RUBBER-SEAT
92075-156
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
53011-002
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN,DUAL SEAT PIVOT
53011-008
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK SEAT
53054-001
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN-SNAP,1.2X21.2
554A0600
Superseded by 554DA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,SEAT HOOK
92081-1053
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,SEAT,EBONY
14025-5023-8G
|
$190.49 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
COVER-SEAT,L.P.RED
14025-1046-D9
|
$203.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#19
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET,SIDE COVER
92071-072
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Unavailable |
|||
|
#24
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#25
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#26
LOCK-ASSY,SEAT
27016-5010
|
$107.80 | ||
|
Available to order. Add to View Price |
|||
