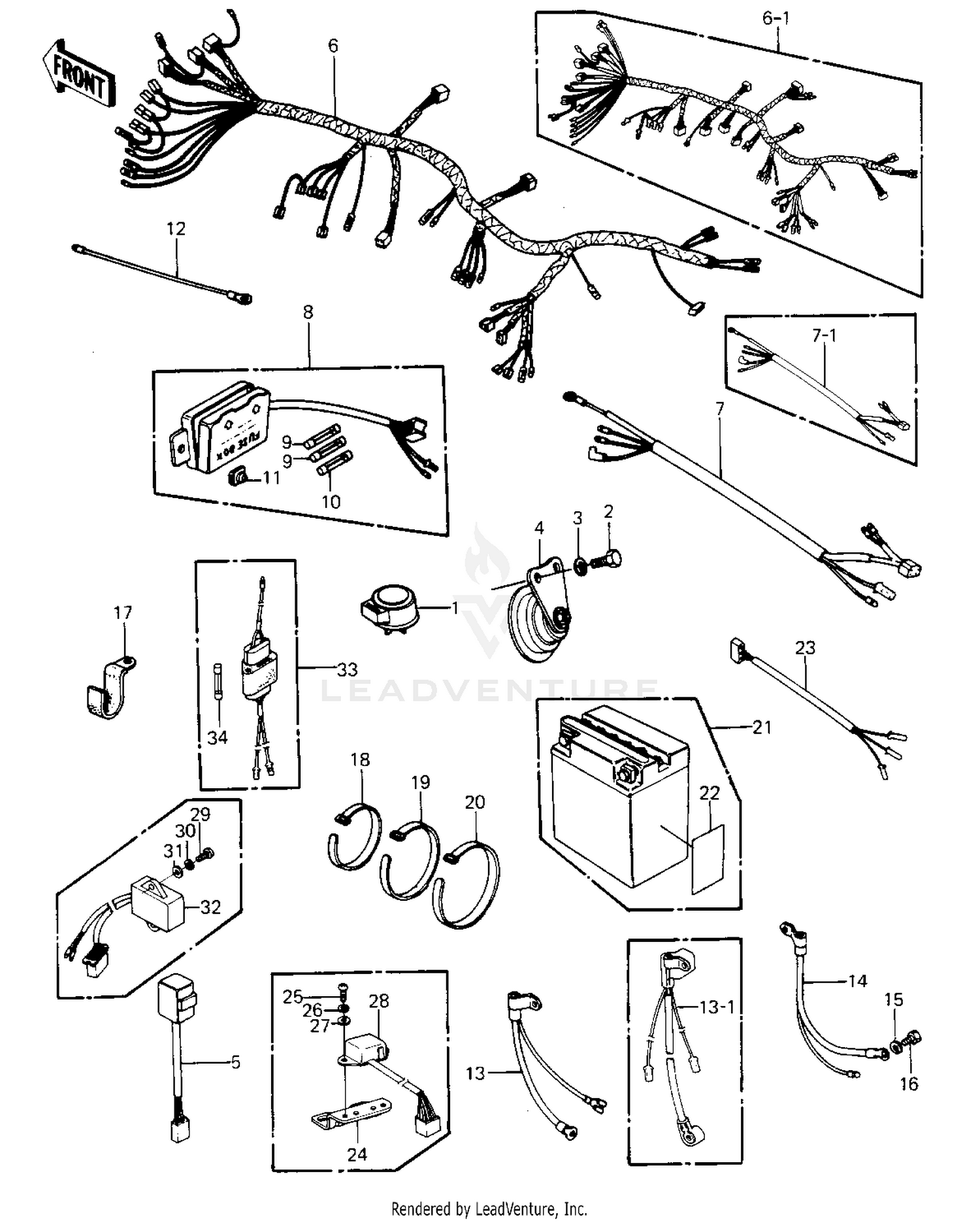

Chassis Electrical Equipment ('80-'81 C1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY-ASSY
27002-011
Superseded by 27002-0003
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
HORN
27003-1014
|
$149.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH,OUTAGE,INDICTR
28019-001
|
$62.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRING HARNESS,MAIN
26001-1162
|
$214.77 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
HARNESS,MAIN
26001-1175
|
$229.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRING HARNESS,SUB
26001-1051
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
HARNESS,SUB
26001-1202
|
$79.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE ASSY
26004-1002
|
$97.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE,GLASS TUBE,6.4X25,20
26006-005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER RUBBER,FUSE
92075-279
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE,LEAD
26011-095
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE-LEAD,BATTERY(T)
26011-1155
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#13-1
WIRE-LEAD,BATTERY
26011-1156
|
$39.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE,LEAD,BATTERY(-)
26011-1032
|
$35.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,6X10
92001-137
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
YUA BAT YB12A-A
26012-1004
Superseded by 26012-1061
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRING HARNESS,TL LMP
26002-046
|
$17.35 | ||
|
Unavailable |
|||
|
#24
BRACKET,RESERVE LIGHT
11034-1850
|
$48.34 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#27
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH,RESERVE LIGHTI
27010-1024
|
$101.08 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#31
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Unavailable |
|||
|
#32
SWITCH,TURN SIGNAL OP
27010-1016
|
$221.16 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE-ASSY,ACCESSORY
26004-1014
|
$67.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE,GLASS TUBE,6.4X30,10
26006-1002
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
