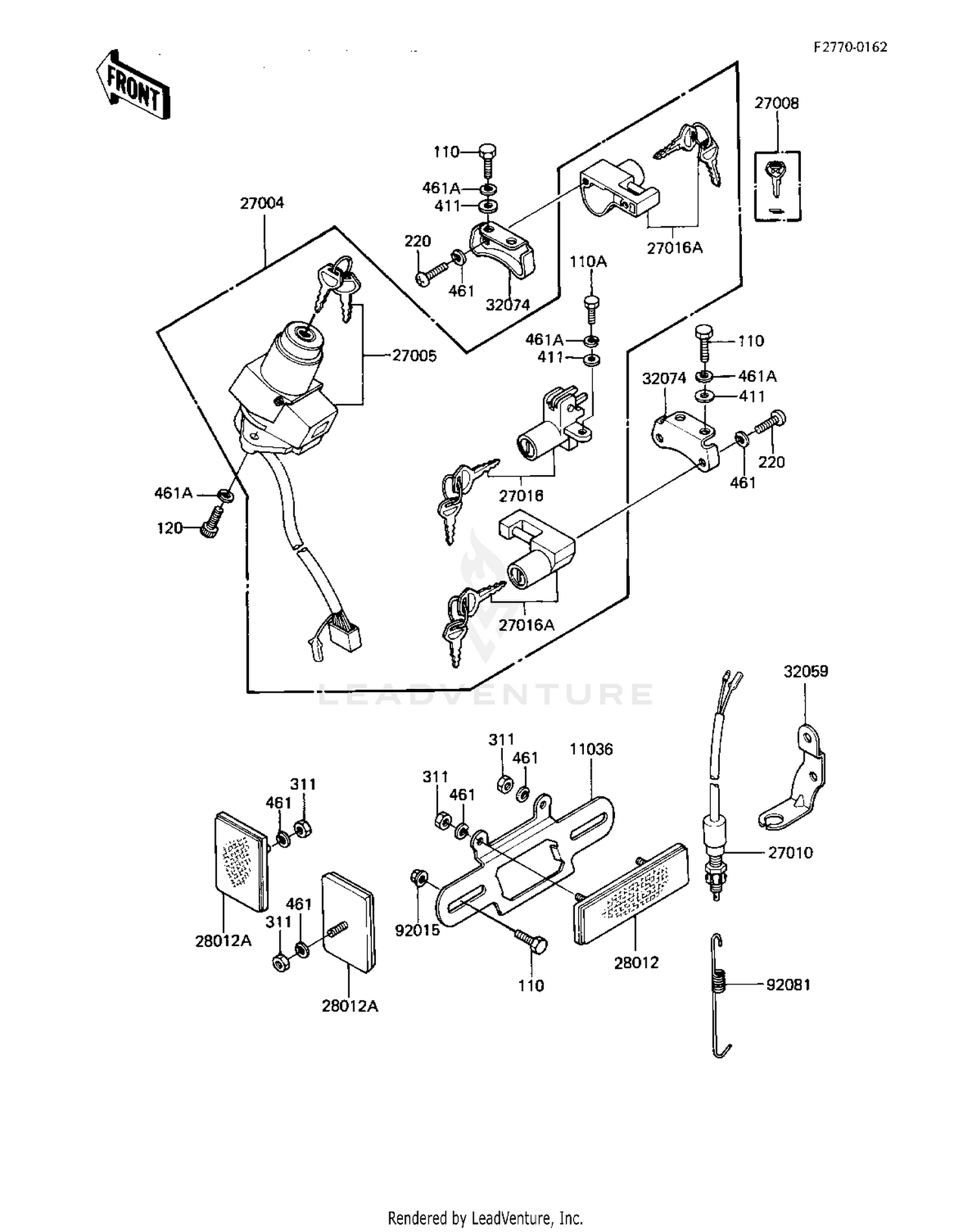

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11036
BRACKET,REFLECTOR,RR
11036-1150
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#27004
SWITCH-ASSY
27004-5150
|
$547.30 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-5024
|
$184.54 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,REAR BRAKE
27010-1019
Superseded by 27010-1474
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT
27016-5010
|
$107.80 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK ASSY,HELMET
27016-5038
|
$80.79 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX,FR
28012-1009
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#32059
BRACKET-SWITCH
32059-1024
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#32074
BRACKET-LOCK
32074-1041
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE LAMP SWITCH
27011-004
Superseded by 92145-0683
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT,SOCKET,6X16
120Q0616
Superseded by 92002-1166
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
