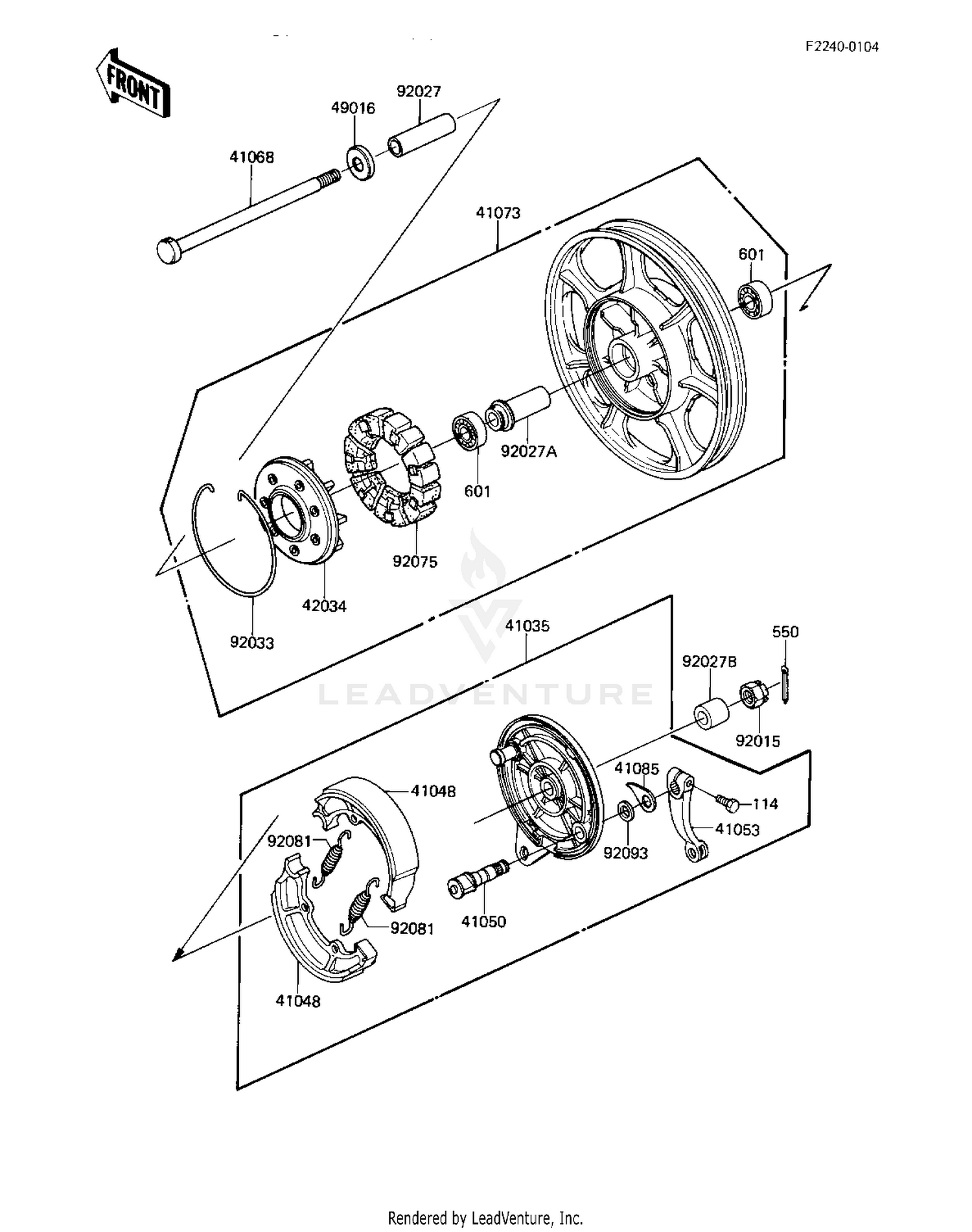

Rear Wheel/hub/brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1110
|
$281.92 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
42019-012
Superseded by 41048-1070
|
$49.66 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM SHAFT,BRAKE
41050-017
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
42029-039
Superseded by 41053-1072
|
$63.27 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1086
|
$70.60 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,F.BLACK
41073-1161-21
|
$515.52 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR,BRAKE SHOE
41085-004
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42034
COUPLING,RR HUB
42034-1029
|
$182.42 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1038
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,17.2X25X79
92027-1415
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=60
92027-1416
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,AXLE,17.2X30X3
92027-1466
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,194MM
92033-1075
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,RR HUB SHOCK
92075-1372
|
$105.16 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
41049-012
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD-BRAKE CAM
41051-003
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT HEX HEAD 8X28
114G0828
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6303Z
601B6303Z
|
$23.63 | ||
|
Available to order. Add to View Price |
|||
