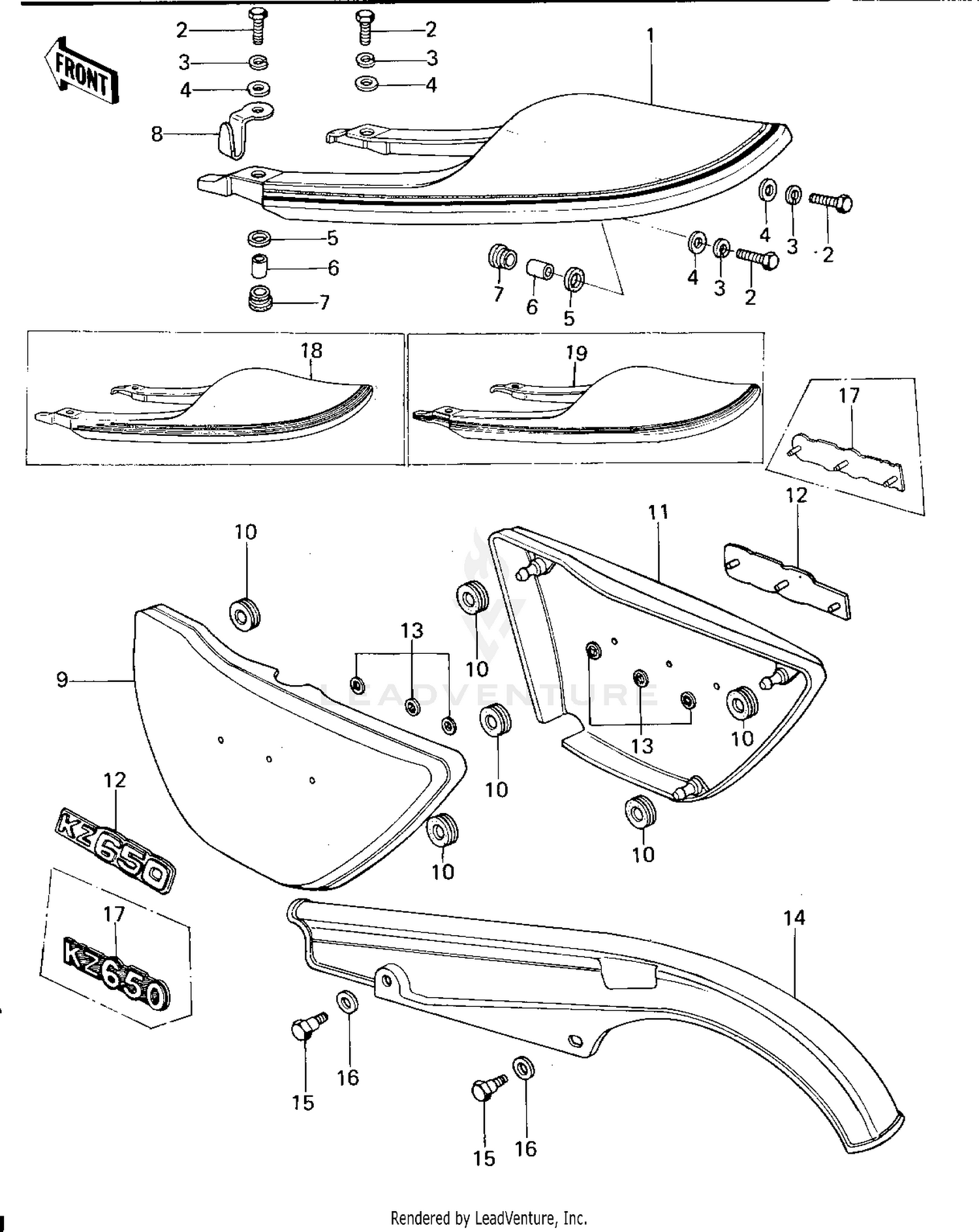

Side Covers/chain Cover/seat Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,REAR,SEAT,C.S.R
53043-016-3R
|
$177.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,REAR SEAT,C.E.G
53043-016-4U
|
$172.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,7X24X1.6
92022-228
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR,6.8X10X12
92027-241
Superseded by 92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,HELMET HOLDER
32122-057
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,SIDE,L.H,S.RED
36001-1034-3R
|
$115.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,SIDE,L.H,E.GREN
36001-1034-4U
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,SIDE,L.H,D.BLUE
36001-5012-7Z
|
$82.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,SIDE,L.H,B.RED
36001-1034-A1
|
$100.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,LH SIDE,EBONY
36001-057-8G
|
$70.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER-SIDE LH,RED $$
36001-1034-A5
|
$104.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,SIDE,L.H,E.GREN
36001-1034-4U
|
$100.20 | ||
|
Unavailable |
|||
|
#9
SIDE COVER,EBONY
36001-1034-8G
|
$96.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,SIDE,R.H,S.RED
36001-1035-3R
|
$105.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,SIDE,R.H,E.GREN
36001-1035-4U
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,SIDE,R.H,D.BLUE
36001-5013-7Z
|
$82.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,SIDE,R.H,B.RED
36001-1035-A1
|
$105.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,RH SIDE,EBONY
36007-054-8G
|
$70.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER-SIDE RH,RED $$
36001-1035-A5
|
$95.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,SIDE,R.H,E.GREN
36001-1035-4U
|
$100.20 | ||
|
Unavailable |
|||
|
#11
SIDE COVER,EBONY
36001-1035-8G
|
$110.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM,SIDE COVER
56018-256
|
$39.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,PUSH,3MM
92018-005
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE-CHAIN
36014-068
|
$138.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEAX HEAD,6X14
92001-115
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
MARK,SIDE COVER
56018-1063
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,REAR SEAT,D.BLU
53043-016-7Z
|
$157.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,REAR SEAT,B.RED
53043-016-A1
|
$205.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,REAR FNDR,EBONY
53043-016-8G
|
$216.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,SEAT,C.P.RED
53043-016-A5
|
$120.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,SEAT,C.E.GREEN
14025-5009-4U
|
$131.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
REAR FENDER COVER,EBY
53043-5503-8G
|
$111.72 | ||
|
Available to order. Add to View Price |
|||
