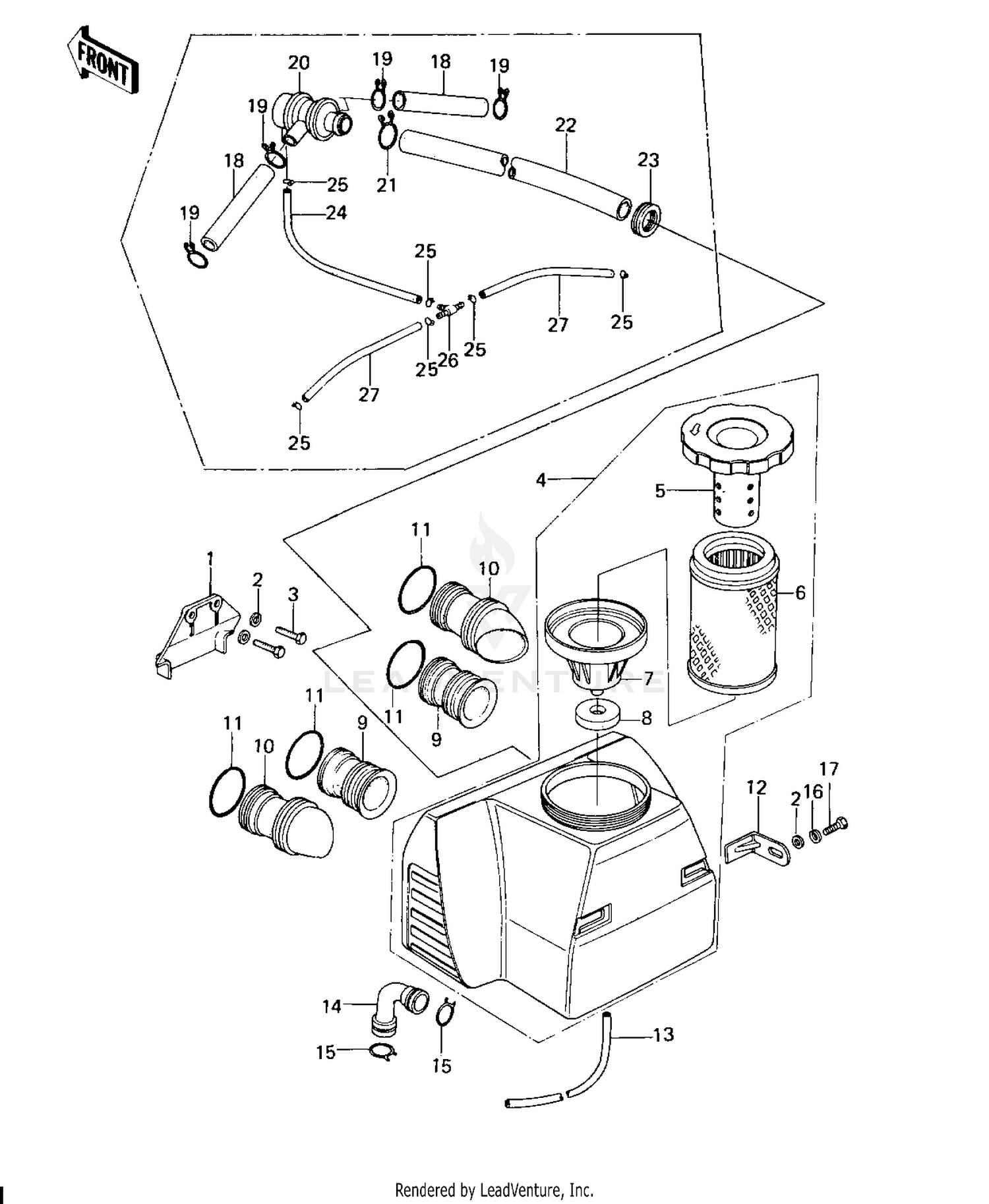

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAFFLE PLT,AIR CLEANE
11019-003
|
$14.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER-ASSY
11010-1079
|
$108.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER-ASSY
11010-1079
|
$108.88 | ||
|
Unavailable |
|||
|
#4
FILTER-ASSY-AIR
11010-1078
|
$112.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,AIR CLEANER
11012-069
|
$18.77 | ||
|
Unavailable |
|||
|
#6
ELEMENT,AIR CLNR
11013-1006
|
$31.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER,INLET PIPE
11033-006
|
$15.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,HOLDER
11039-003
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
INLET DUCT,#2,3
11015-057
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
INLET PIPE,#1.4
11015-063
|
$35.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING COIL
92081-047
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,AIR CLEANER
32070-038
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNAVAILABLE IN PRICE BOOK
700Q6200
|
|||
|
Unavailable |
|||
|
#14
TUBE,BREATHER
92059-137
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP BREATHER PIPE
92037-028
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE,14X20X100
92059-1042
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP,TUBE
92037-213
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE ASSY,AIR SWITCH
16126-1005
|
$183.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,TUBE
92037-1076
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE,19X25X415
92059-1041
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET,AIR CLEANER
92071-1013
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE,4X9X650
92059-1043
Superseded by 92059-1846
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
FITTING,TUBE,T-TYPE
92005-1017
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
TUBE,4X9X935,WHITE
92059-1162
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
