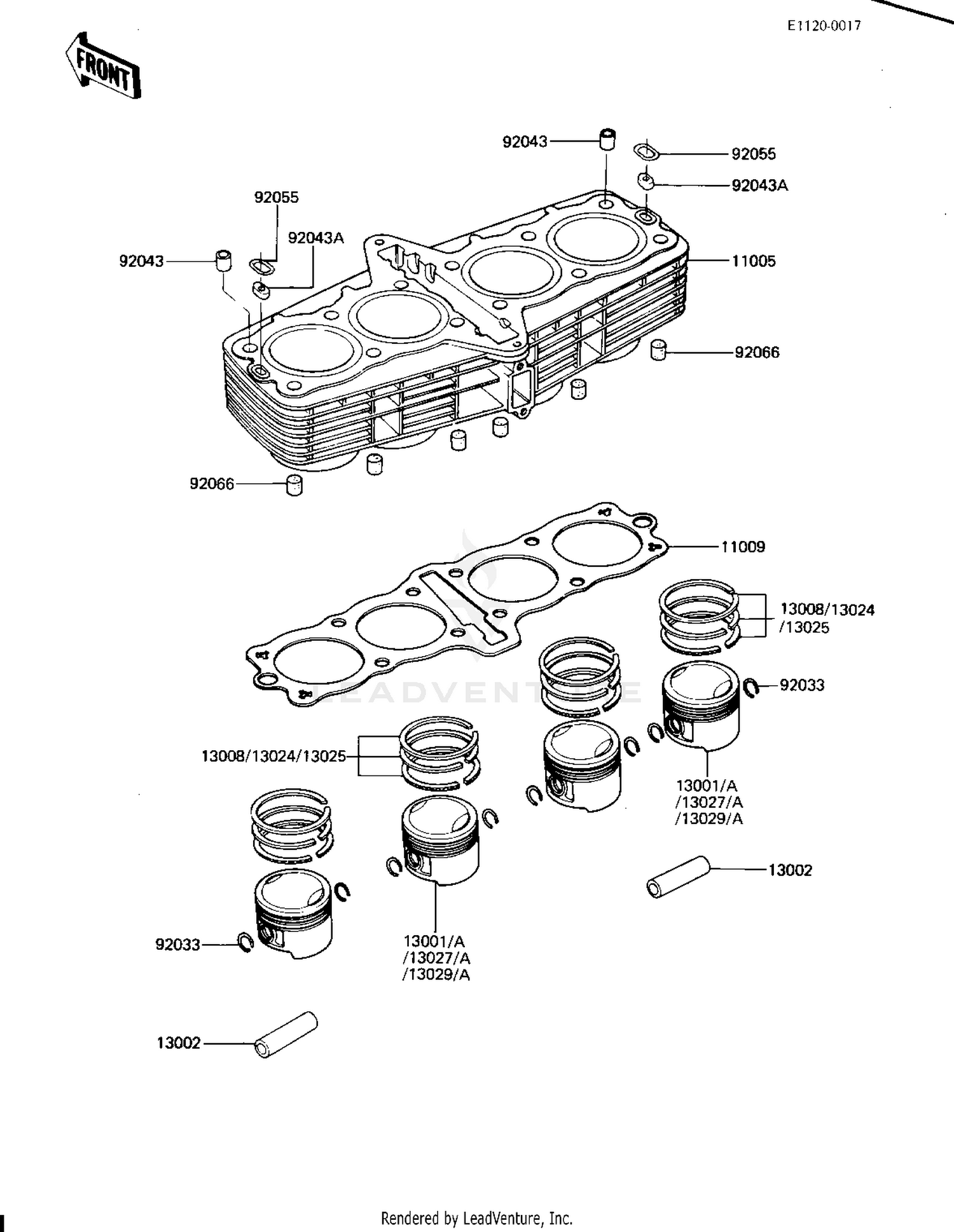

Cylinder/pistons ('81-'82 H1/h2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE,SILVE
11005-1123
|
$570.07 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER BASE
11060-1144
Superseded by 11060-1726
|
$35.78 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON,STD
13001-1002
|
$118.40 | ||
|
Available to order. Add to View Price |
|||
|
#13001A
PISTON-ENGINE,STD
13001-1072
|
$51.82 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-032
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING SET,PISTON,STD
13008-059
|
$135.22 | ||
|
Available to order. Add to View Price |
|||
|
#13024
RING SET,0.040",O.S.
13024-060
|
$107.37 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING SET,0.020",O.S.
13025-061
|
$100.61 | ||
|
Available to order. Add to View Price |
|||
|
#13027
PISTON,0.040",O.S.
13027-069
|
$102.01 | ||
|
Available to order. Add to View Price |
|||
|
#13027A
PISTON-ENGINE LL,O/S
13027-1033
|
$58.13 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON,0.020",O.S.
13029-077
|
$118.40 | ||
|
Available to order. Add to View Price |
|||
|
#13029A
PISTON-ENGINE L,0/S 0
13029-1034
|
$64.93 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,OIL LINE
92043-1210
Superseded by 92043-1546
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1147
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DAMPER
92066-1016
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
