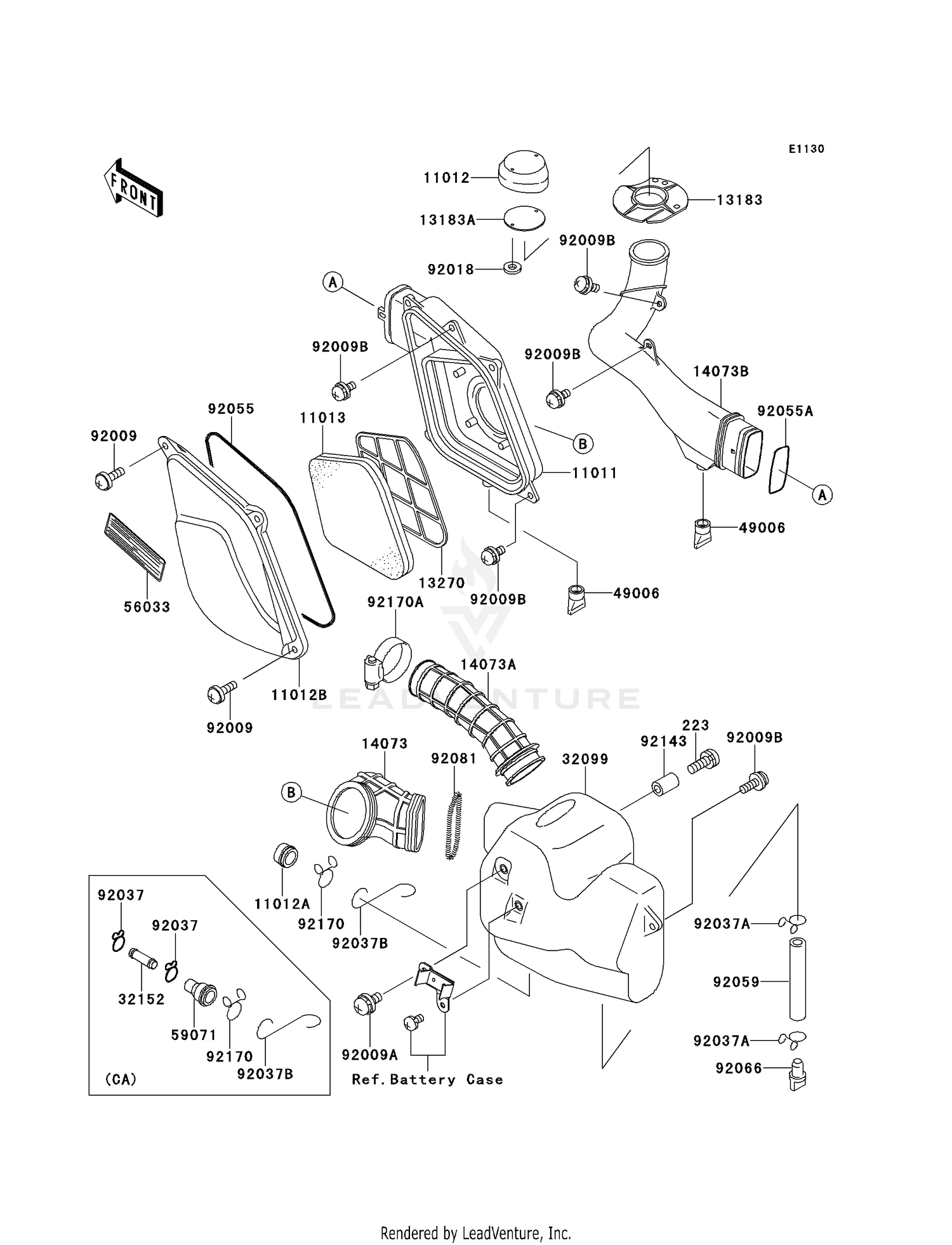

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#223
SCREW-PAN-WS-CROS
223C0635
Superseded by 223AB0635
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11011
CASE-AIR FILTER
11011-1442
|
$77.20 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1537
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,HEAD
11012-1544
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#11012B
CAP,CAR FILTER
11012-1902
|
$29.94 | ||
|
Available to order. Add to View Price |
|||
|
#11013
ELEMENT-AIR FILTER
11013-1145
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1019
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#13183A
PLATE
13183-1020
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,ELEMENT
13270-1317
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,CHAMBER-AIRFILTE
14073-1266
|
$30.14 | ||
|
Available to order. Add to View Price |
|||
|
#14073A
DUCT,AIR FILTER
14073-1611
|
$33.42 | ||
|
Available to order. Add to View Price |
|||
|
#14073B
DUCT,SNORKL
14073-1629
|
$70.13 | ||
|
Available to order. Add to View Price |
|||
|
#32099
CASE,AIR CHAMBER
32099-1155
|
$90.12 | ||
|
Available to order. Add to View Price |
|||
|
#32152
PIPE
32152-1567
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1292
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#56033
LABEL-MANUAL,MAINTENA
56033-1079
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#59071
JOINT
59071-1168
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X18
92009-1181
Superseded by 92172-0002
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X14
92009-1275
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,6X16
92009-1276
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92018
NUT,PUSH,3MM
92018-005
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,12.5MM
92037-1271
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1821
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,AIR FILTER CAS
92055-1344
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,57.3X3
92055-1345
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7X10X100
92059-1736
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
92066-1211
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,DUCT
92081-1638
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1046
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,TUBE
92170-1445
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1674
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
