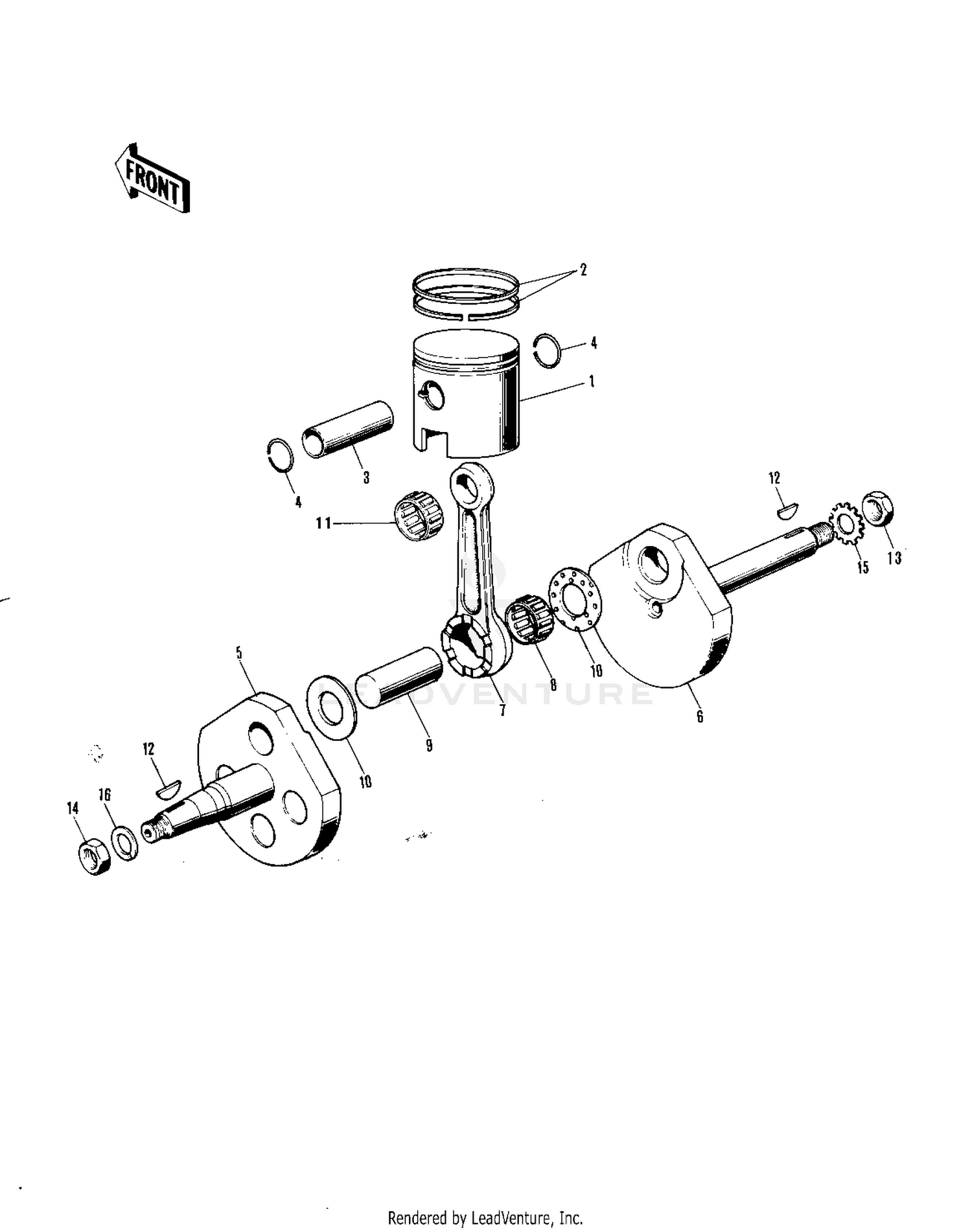

1974 Kawasaki MT1 CRANKSHAFT/PISTON ('71-'75) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 PISTON,STD 13001-047	$57.08
Available to order. Add to View Price
#1 PISTON,0.020' O.S 13029-047	$42.53
Available to order. Add to View Price
#1 PISTON,0.040' O.S 13027-027	$49.88
Available to order. Add to View Price
#2 RING SET,STD 13008-029	$78.32
Unavailable
#2 RING SET,0.020' O.S 13025-034	$48.91
Available to order. Add to View Price
#2 RING SET,0.040' O.S 13024-037	$40.48
Available to order. Add to View Price
#3 PIN-PISTON 13002-019	$16.44
Unavailable
#4 RING-SNAP,PISTON PIN 92036-007	$3.57
Available to order. Add to View Price
# CRANK - CONROD ASSY 13036-030	$112.77
Available to order. Add to View Price
#5 CRANKSHAFT L.H 13037-043	$80.28
Available to order. Add to View Price
#6 CRANKSHAFT R.H 13038-039	$101.93
Available to order. Add to View Price
# CONNECTING ROD SET 13044-015	$93.91
Available to order. Add to View Price
#8 NEEDLE BEARING-BG END 13034-002	$20.48
Available to order. Add to View Price
#9 CRANK PIN 13035-024	$15.40
Available to order. Add to View Price
#10 WASHER-SIDE 92026-002	$4.93
Available to order. Add to View Price
#11 BEARING-SMALL END 13033-028 Superseded by 13033-0002	$15.66
Available to order. Add to View Price
#12 KEY,WOODRUFF 92038-001	$4.66
Available to order. Add to View Price
#13 NUT,12MM 92016-024	$5.46
Available to order. Add to View Price
#14 NUT-HEX-FINE 314B1000 Superseded by 314AA1000	$0.67
Available to order. Add to View Price
#15 WASHER LOCK 12MM 464H1200	$4.28
Available to order. Add to View Price
#16 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
