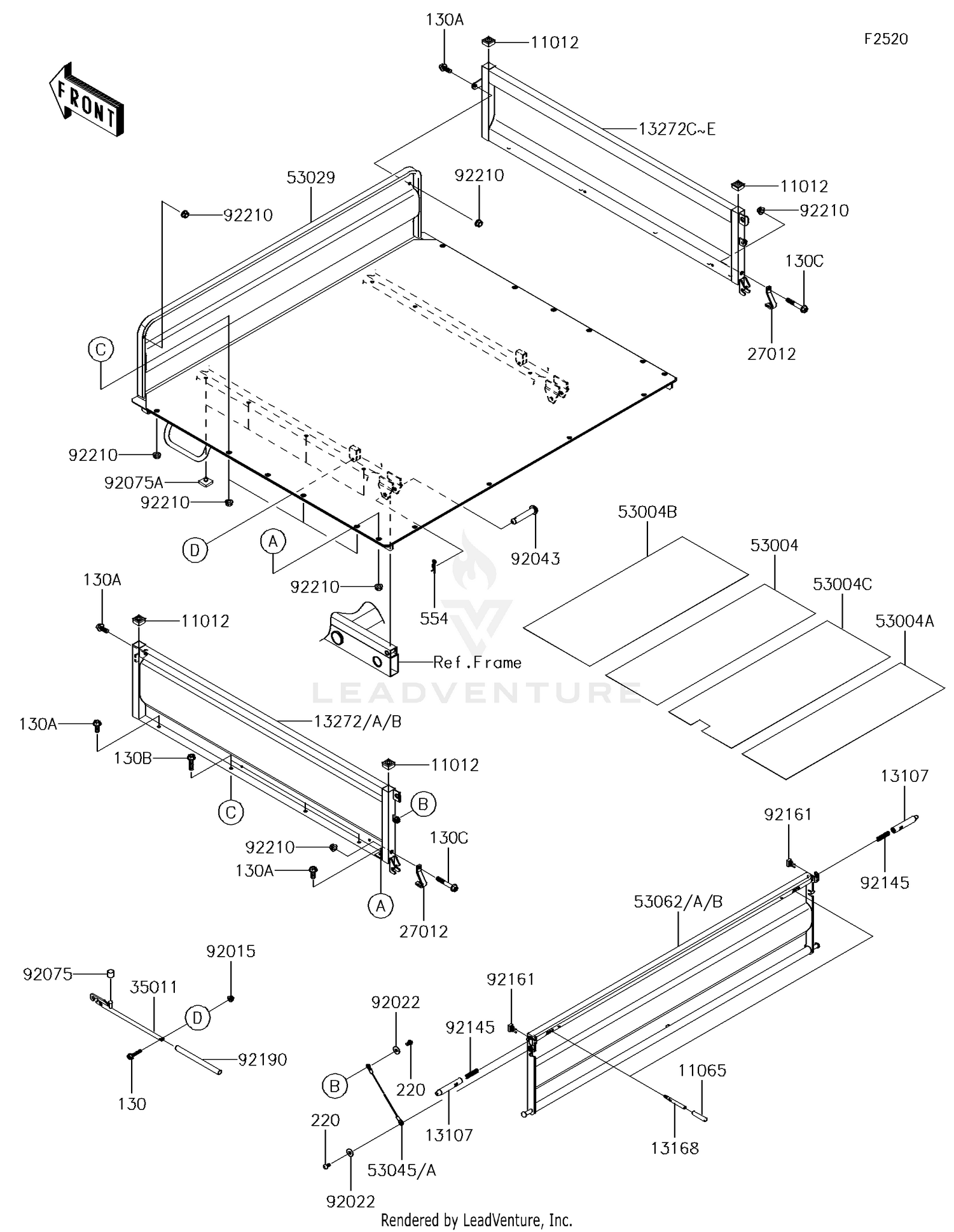

2018 Kawasaki MULE 4010 4X4 Carrier(s) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1784
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0126
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-0082
|
$56.56 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER
13168-0090
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,SIDE,LH,D.R.RED
13272-1231-16M
|
$212.65 | ||
|
Available to order. Add to View Price |
|||
|
#13272A
PLATE,SIDE,LH,W.GREEN
13272-1231-398
|
$222.89 | ||
|
Available to order. Add to View Price |
|||
|
#13272B
PLATE,SIDE,LH,T.GREEN
13272-1231-42T
|
$212.65 | ||
|
Available to order. Add to View Price |
|||
|
#13272C
PLATE,SIDE,RH,D.R.RED
13272-1232-16M
|
$212.65 | ||
|
Available to order. Add to View Price |
|||
|
#13272D
PLATE,SIDE,RH,W.GREEN
13272-1232-398
|
$222.89 | ||
|
Available to order. Add to View Price |
|||
|
#13272E
PLATE,SIDE,RH,T.GREEN
13272-1232-42T
|
$212.65 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK,TAIL GATE
27012-0022
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,CARRIER STOPPER
35011-1648
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#53004
MAT,CARRIER
53004-0031
|
$105.80 | ||
|
Available to order. Add to View Price |
|||
|
#53004A
MAT,CARRIER
53004-0032
|
$105.80 | ||
|
Available to order. Add to View Price |
|||
|
#53004B
MAT,CARRIER
53004-0034
|
$105.80 | ||
|
Available to order. Add to View Price |
|||
|
#53004C
MAT
53004-1159
|
$106.31 | ||
|
Available to order. Add to View Price |
|||
|
#53029
CARRIER,BASE PLATE,T.BLACK
53029-0063-388
|
$918.43 | ||
|
Available to order. Add to View Price |
|||
|
#53045
HOOK-ASSY,TAIL GATE
53045-0004
Superseded by 53045-0031
|
$27.09 | ||
|
Available to order. Add to View Price |
|||
|
#53045A
HOOK-ASSY,TAIL GATE
53045-0031
|
$27.09 | ||
|
Unavailable |
|||
|
#53062
GATE-TAIL,D.R.RED
53062-0001-16M
|
$370.86 | ||
|
Available to order. Add to View Price |
|||
|
#53062A
GATE-TAIL,W.GREEN
53062-0001-398
|
$388.59 | ||
|
Available to order. Add to View Price |
|||
|
#53062B
GATE-TAIL,T.GREEN
53062-0001-42T
|
$370.86 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,6MM
92015-1675
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X18X1.2
92022-1545
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,12X65
92043-1428
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1817
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1882
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,TENSIONER
92145-1215
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0258
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,13X16X200
92190-1401
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,8MM
92210-0555
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X30
130BA0630
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X20
130BB0820
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,8X30
130BB0830
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#130C
BOLT-FLANGED,8X50
130BB0850
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X10
220AB0610
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#554
PIN-SNAP,12MM
554DA1200
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
