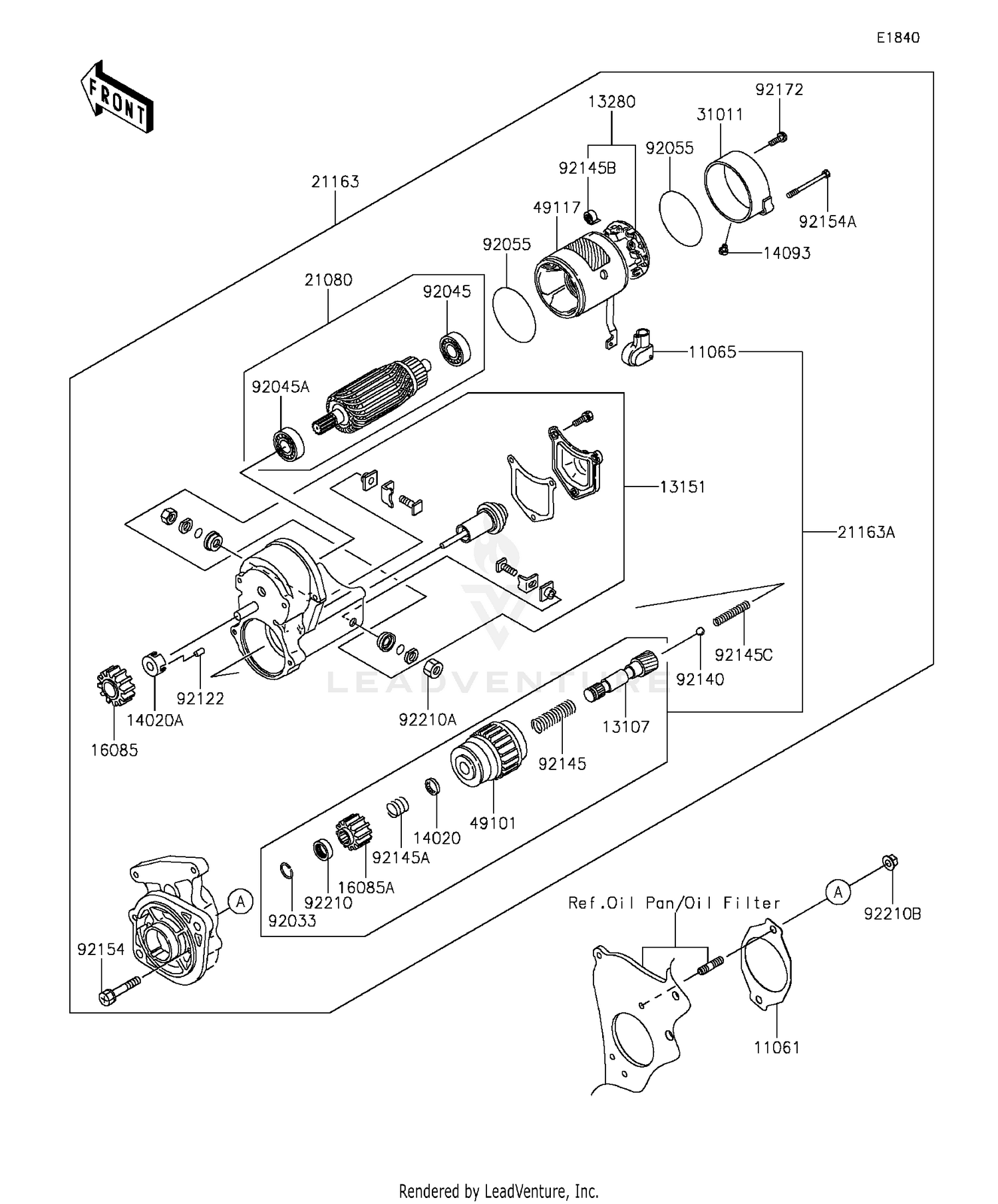

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,STARTER
11061-1195
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0939
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-0841
|
$123.81 | ||
|
Available to order. Add to View Price |
|||
|
#13151
SWITCH-COMP,MAGNET
13151-0573
|
$776.13 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER
13280-0863
|
$62.25 | ||
|
Available to order. Add to View Price |
|||
|
#14020
RETAINER
14020-0020
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#14020A
RETAINER
14020-0021
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER
14093-0449
|
$14.72 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR,PINION
16085-0649
|
$193.09 | ||
|
Available to order. Add to View Price |
|||
|
#16085A
GEAR,PINION
16085-0652
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#21080
ARMATURE
21080-0010
|
$477.41 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-0752
|
$1,152.36 | ||
|
Available to order. Add to View Price |
|||
|
#21163A
STARTER-ELECTRIC
21163-0753
|
$432.97 | ||
|
Available to order. Add to View Price |
|||
|
#31011
FRAME
31011-0029
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#49101
CLUTCH,STARTER
49101-0002
|
$250.74 | ||
|
Available to order. Add to View Price |
|||
|
#49117
YOKE
49117-0593
|
$126.63 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0775
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-0808
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL
92045-0809
|
$30.62 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0863
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER
92122-0048
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#92140
BALL
92140-0017
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1713
|
$14.72 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1714
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING
92145-1715
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92145C
SPRING
92145-1716
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT
92154-2072
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT
92154-2073
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0988
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-1470
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-1472
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,8MM
92210-1473
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
