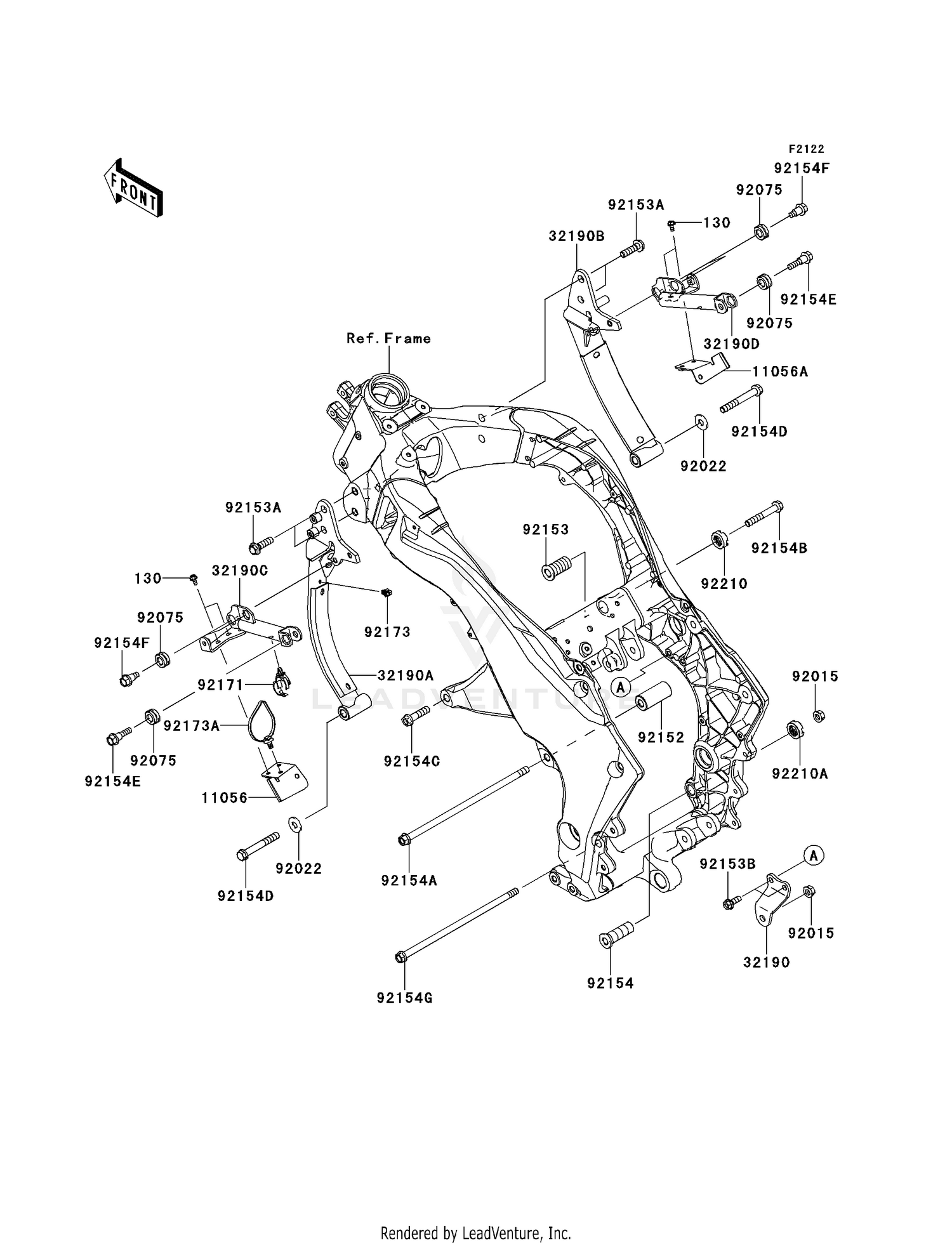

Engine Mount Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,5X10
130BB0510
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET,HEAT SHIELD,LH
11056-0550
Superseded by 11056-3781
|
$8.01 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,HEAT SHIELD,R
11056-0551
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#32190
BRACKET-ENGINE,CR CASE UPP,BLK
32190-0458-18R
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#32190A
BRACKET-ENGINE,F.S.BL
32190-0580-18R
|
$161.28 | ||
|
Available to order. Add to View Price |
|||
|
#32190B
BRACKET-ENGINE,F.S.BL
32190-0581-18R
|
$161.28 | ||
|
Available to order. Add to View Price |
|||
|
#32190C
BRACKET-ENGINE,LH
32190-0582
|
$36.04 | ||
|
Available to order. Add to View Price |
|||
|
#32190D
BRACKET-ENGINE,RH
32190-0583
|
$36.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1180
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X26X2.3,BLACK
92022-1396
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1898
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,11X26X56.5
92152-0853
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,20X43
92153-0488
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,10X35
92153-0802
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,8X20
92153-1554
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,ENGINE MOUNT,18X53.5
92154-0267
|
$27.43 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,10X270
92154-0268
|
$27.69 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,10X65
92154-0312
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#92154C
BOLT,FLANGED,10X40
92154-0313
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92154D
BOLT,FLANGED,10X75
92154-0449
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#92154E
BOLT,FLANGED,8X35
92154-0742
|
$10.23 | ||
|
Available to order. Add to View Price |
|||
|
#92154F
BOLT,FLANGED,8X20
92154-0749
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92154G
BOLT,FLANGED,10X255
92154-0827
|
$24.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,20MM DIA.
92171-0069
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0215
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#92173A
CLAMP
92173-0742
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,20MM
92210-0591
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,18MM
92210-1203
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
