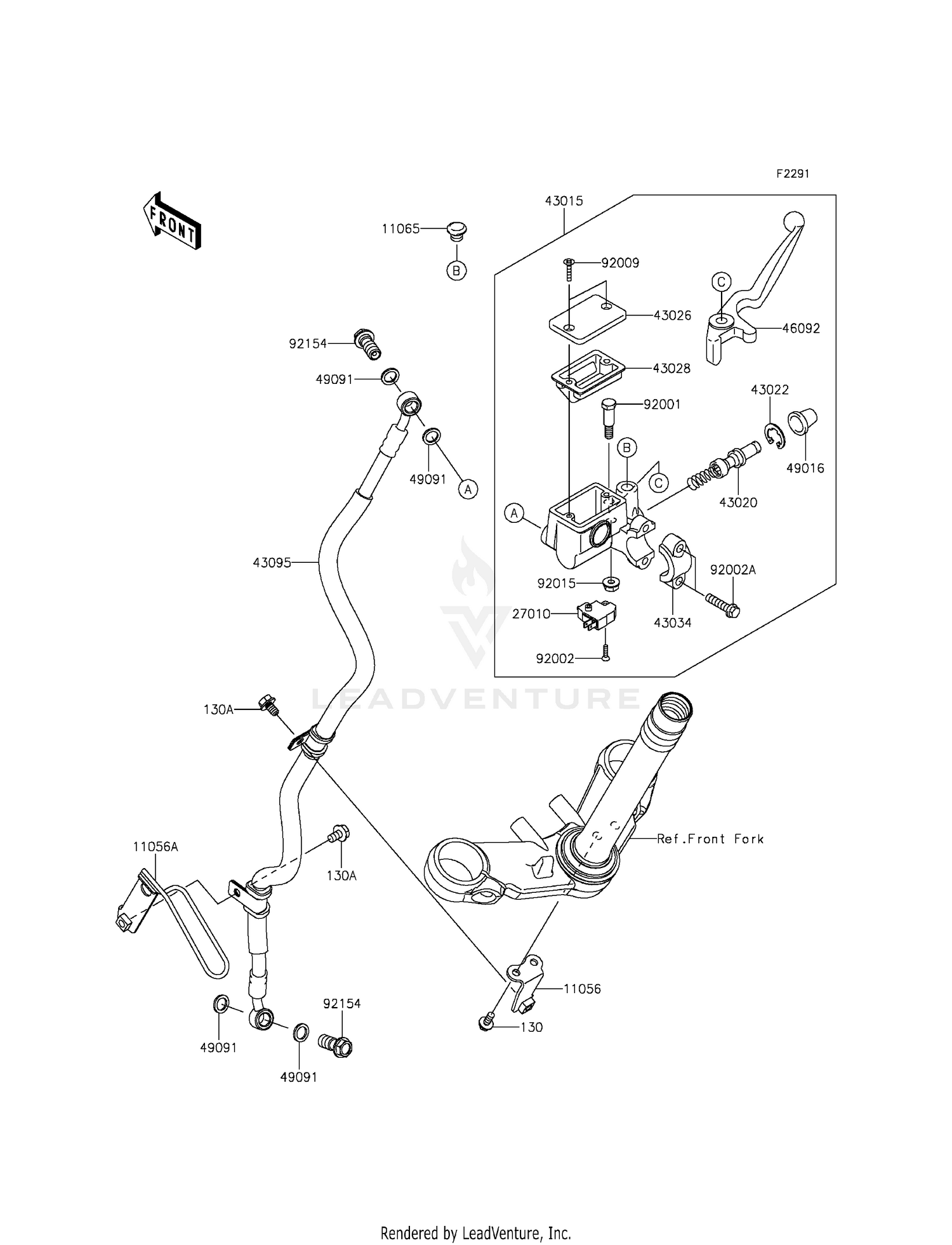

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,5X12
130BB0512
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET
11056-2214
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET
11056-2300
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,DUMMY
11065-0218
Superseded by 11065-0921
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1170
|
$28.14 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0611
Superseded by 43015-0727
|
$214.94 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0022
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1074
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR,731MM
43095-0843
|
$76.44 | ||
|
Available to order. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-0028
|
$15.73 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FRONT BRAKE LEVER
92001-1728
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1894
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,OIL,L=23
92154-0226
Superseded by 92154-4239
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
