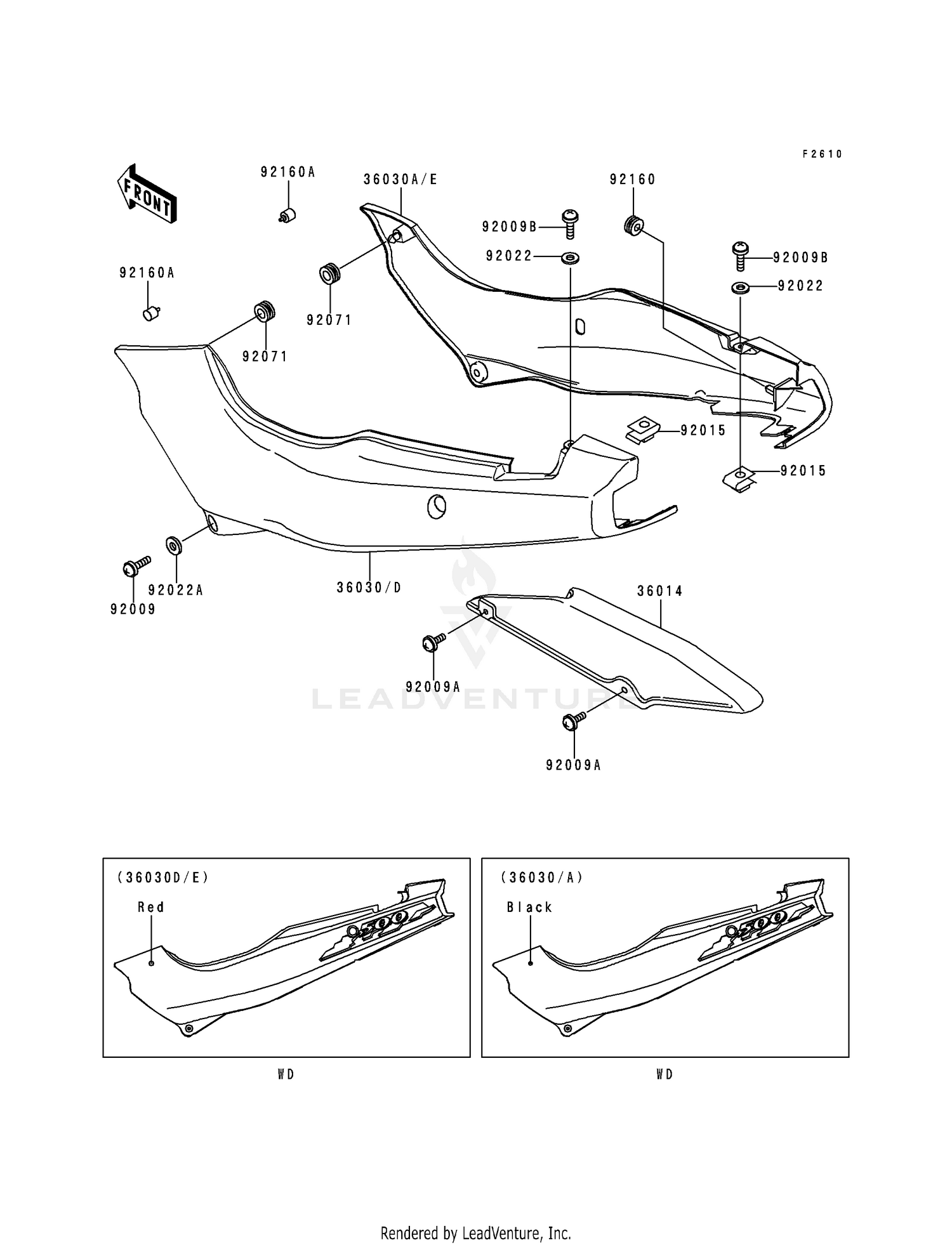

Side Covers/chain Cover (ex500-d1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36014
CASE-CHAIN
36014-1164
|
$104.58 | ||
|
Available to order. Add to View Price |
|||
|
#36030
COVER-SIDE,LH,P.P.BLA
36030-5280-20
|
$387.64 | ||
|
Available to order. Add to View Price |
|||
|
#36030A
COVER-SIDE,RH,P.P.BLA
36030-5281-20
|
$387.64 | ||
|
Available to order. Add to View Price |
|||
|
#36030D
COVER-SIDE,LH,C.W.RED
36030-5284-H3
|
$387.64 | ||
|
Available to order. Add to View Price |
|||
|
#36030E
COVER-SIDE,EH,C.W.RED
36030-5285-H3
|
$387.64 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X10
92009-1402
Superseded by 92172-0005
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,5X16,BLACK
92009-1654
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,5MM
92015-1710
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.5X16X1.0
92022-1654
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1162
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1555
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
