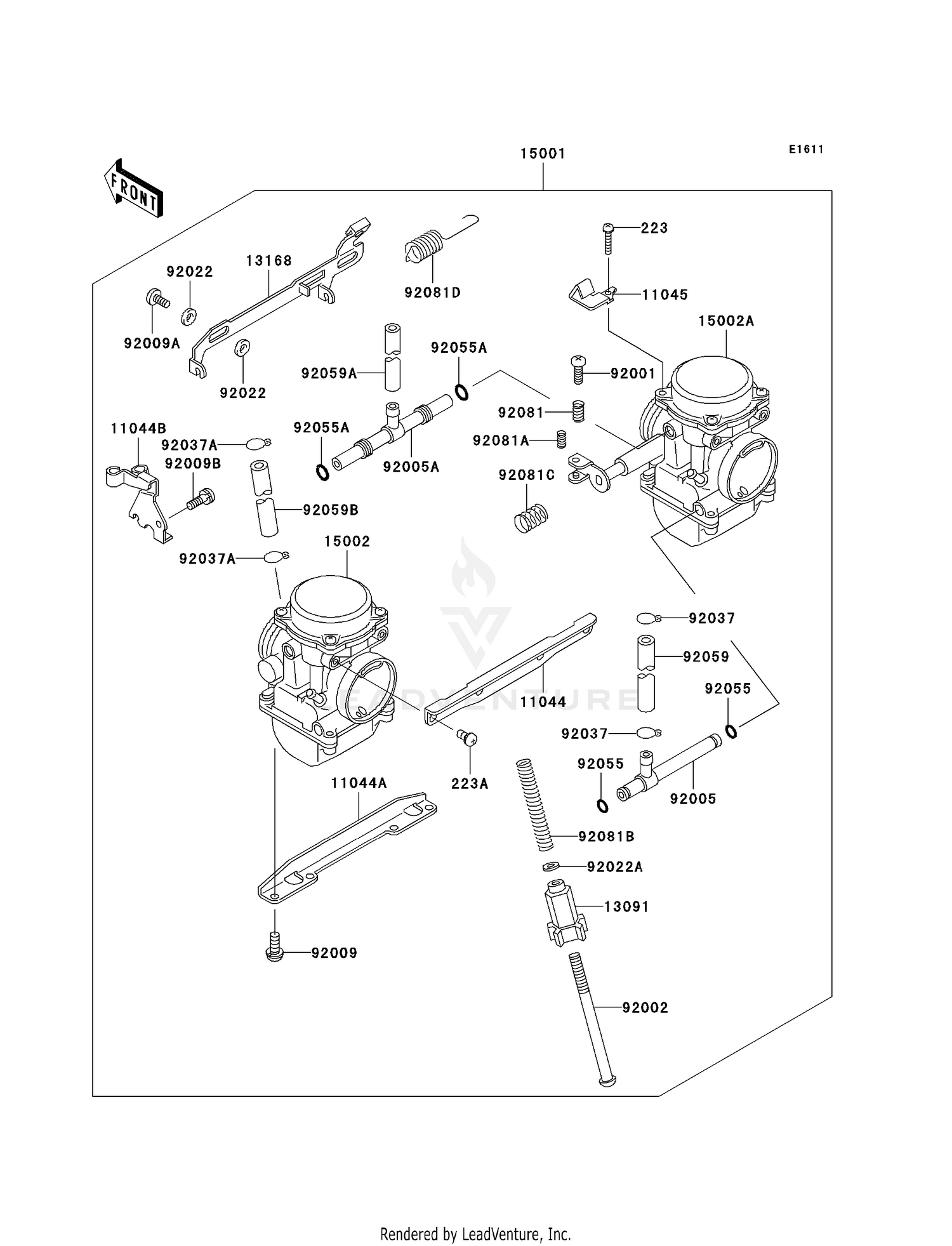

Carburetor (d6f/d7f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#223
SCREW-PAN-WS-CROS
223AB0420
Superseded by 223C0420
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS,5X10
223AB0510
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11044
BRACKET,CARBURETOR ST
11044-1313
|
$65.02 | ||
|
Available to order. Add to View Price |
|||
|
#11044A
BRACKET,CARBURETOR ST
11044-1314
|
$65.00 | ||
|
Available to order. Add to View Price |
|||
|
#11044B
BRACKET,THROTTLE CABLE
11044-1546
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET
11045-1824
|
$70.66 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,THROTTLE STOP SCREW
13091-1382
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER
13168-1360
|
$78.87 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1334
|
$1,187.56 | ||
|
Available to order. Add to View Price |
|||
|
#15002
CARBURETOR,LH
15002-1492
|
$641.15 | ||
|
Available to order. Add to View Price |
|||
|
#15002A
CARBURETOR,RH
15002-1493
|
$652.78 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,THROTTLE ADJUST
92001-1998
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,THROTTLE STOP SC
92002-1552
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1133
|
$50.98 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1134
|
$58.65 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-PAN-WS-CROS,6X1
92009-1129
Superseded by 223AA0616
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1262
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,PLAIN,STOP SPRING
92022-1480
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FUEL TUBE
92037-1075
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1477
Superseded by 92037-1142
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1004
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1223
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7.3X12.5X400
92059-1236
Superseded by 92190-1063
|
$36.40 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X500
92059-1465
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,5X9X140
92059-1634
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE STOP
92081-1875
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING
92081-1876
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#92081D
SPRING,STARTER LEVER
92081-1893
|
$23.46 | ||
|
Available to order. Add to View Price |
|||
