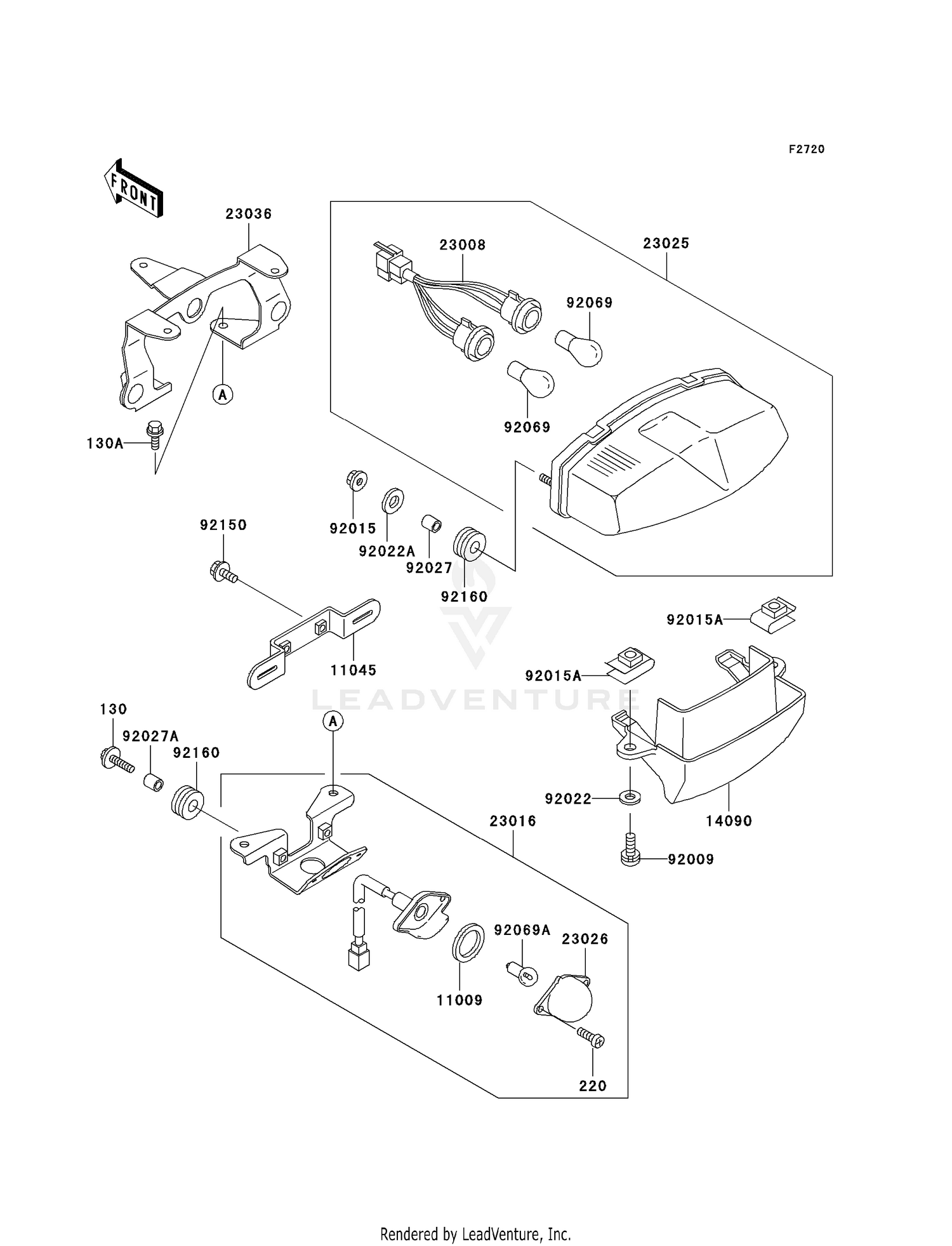

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X25
130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X12
130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X10
220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,LICENSE PLATE LAMP
11009-1372
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,LICENSE
11045-1387
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,LICENSE LAMP
14090-1487
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,TAIL LAMP
23008-1413
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP ASSY-LIC PLATE
23016-1132
|
$70.13 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL
23025-1313
|
$187.93 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,LAMP
23026-1054
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#23036
BRACKET-TAIL LAMP
23036-1130
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X16,BLACK
92009-1654
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,5MM
92015-1710
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.5X20X1.6
92022-1557
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 21/5W
92069-063
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 5W
92069-1055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X14
92150-1133
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1162
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
