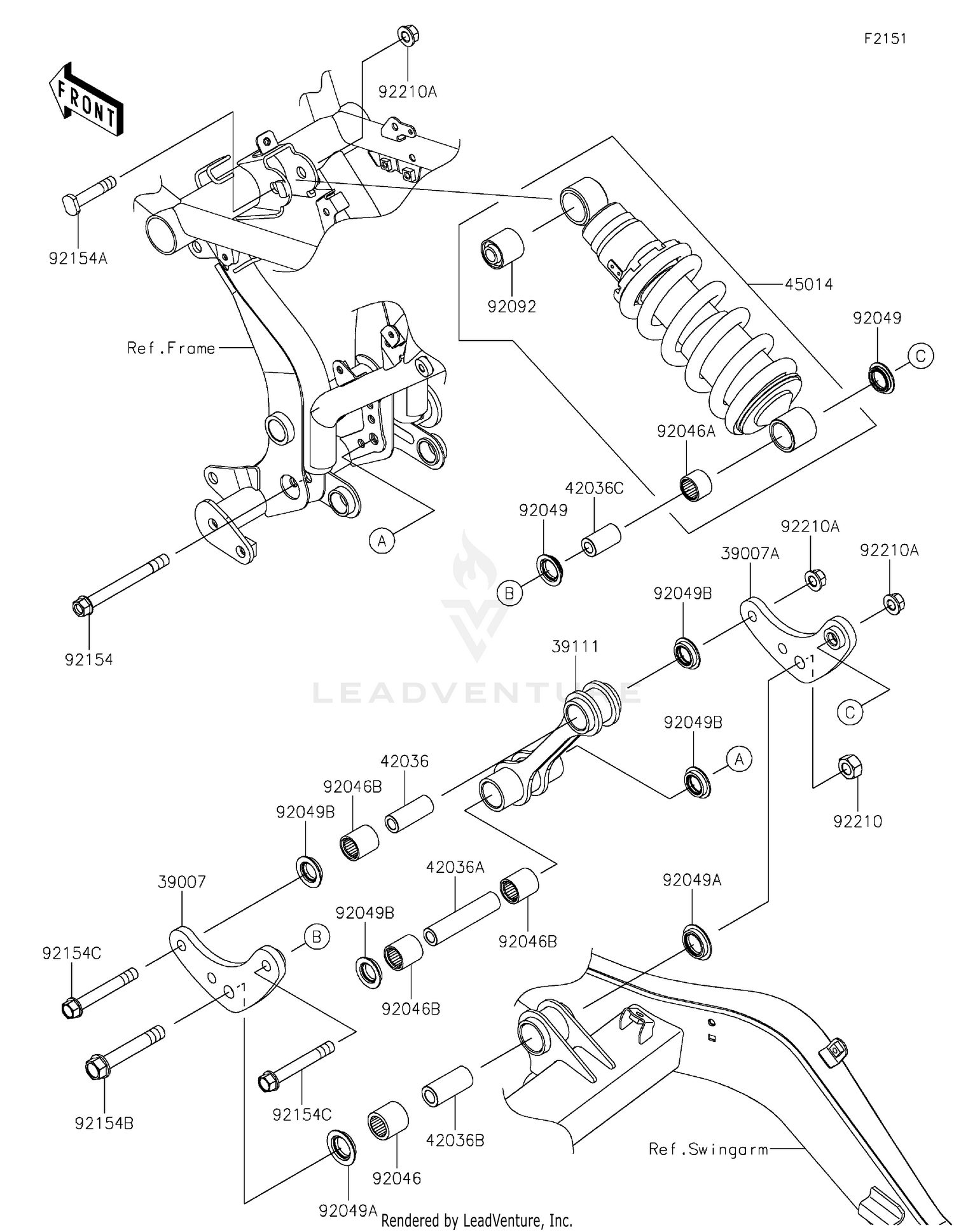

Suspension/shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39007
ARM-SUSP,LH
39007-0401
|
$71.08 | ||
|
Available to order. Add to View Price |
|||
|
#39007A
ARM-SUSP,RH
39007-0402
|
$71.08 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-0343
|
$150.09 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,10.1X17X44.5
42036-0718
|
$23.16 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,10.1X17X79.8
42036-0787
|
$28.66 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,12.1X20X44.5
42036-0788
|
$24.07 | ||
|
Available to order. Add to View Price |
|||
|
#42036C
SLEEVE,10.1X18X32
42036-1344
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER,P.SILVER
45014-0565-458
|
$447.18 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,7E-HVS20X27X25
92046-1236
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,SFYZM182417
92046-1272
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,SFYZM172425
92046-1273
|
$17.06 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0133
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,ARM
92049-1109
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,MHA17245.7F
92049-1223
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-1058
|
$28.72 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X100
92154-1257
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,10X50
92154-2165
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,12X75
92154-2166
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#92154C
BOLT,FLANGED,10X75
92154-2226
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,12MM
92210-0274
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,FLANGED,10MM
92210-1139
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
