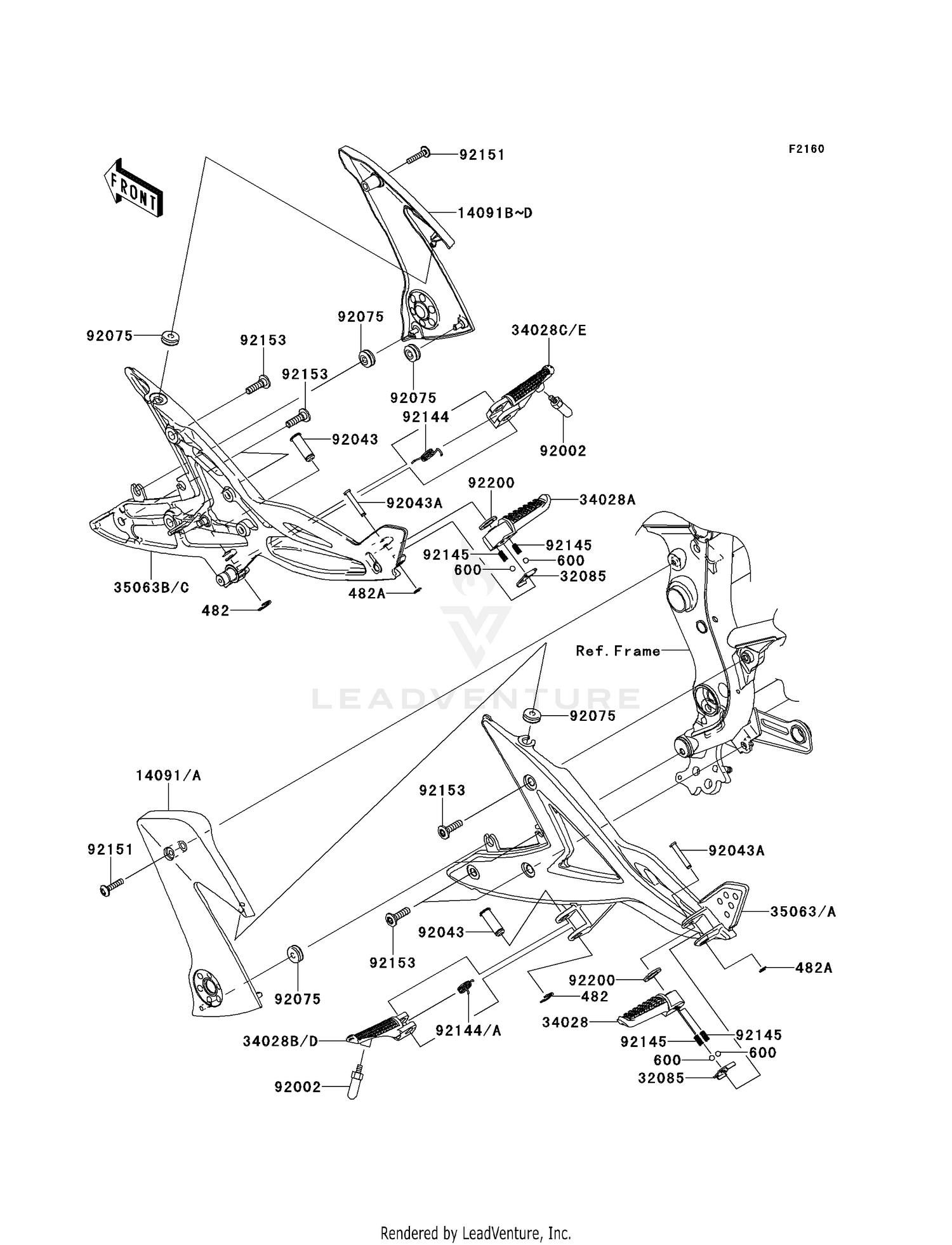

Footrests Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#482
CIRCLIP-TYPE-E,10MM
482L0100
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#482A
CIRCLIP-TYPE-E
482L5000
Superseded by 482EA5000
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,PIVOT,LH,S.F.C.
14091-0461-837
|
$35.50 | ||
|
Available to order. Add to View Price |
|||
|
#14091C
COVER,PIVOT,RH,S.F.C.
14091-0462-837
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,REAR STEP
32085-0047
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#34028
STEP,RR,LH
34028-0004
|
$69.26 | ||
|
Available to order. Add to View Price |
|||
|
#34028A
STEP,RR,RH
34028-0005
|
$69.26 | ||
|
Available to order. Add to View Price |
|||
|
#34028B
STEP,FR,LH
34028-0029
Superseded by 34028-0059
|
$87.54 | ||
|
Available to order. Add to View Price |
|||
|
#34028C
STEP,FR,RH
34028-0030
Superseded by 34028-0060
|
$87.54 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,STEP,LH,M.SILVER
35063-0285-735
|
$165.87 | ||
|
Available to order. Add to View Price |
|||
|
#35063C
STAY,STEP,RH,M.SILVER
35063-0286-735
|
$165.87 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,BANK SENSOR
92002-1995
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,12X36.5
92043-0028
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6X40
92043-1595
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1067
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,STEP RETURN
92144-1567
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,STEP RETURN
92144-1568
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1319
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X30
92151-1605
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X30
92153-1630
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,16X26X2.3
92200-0043
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
