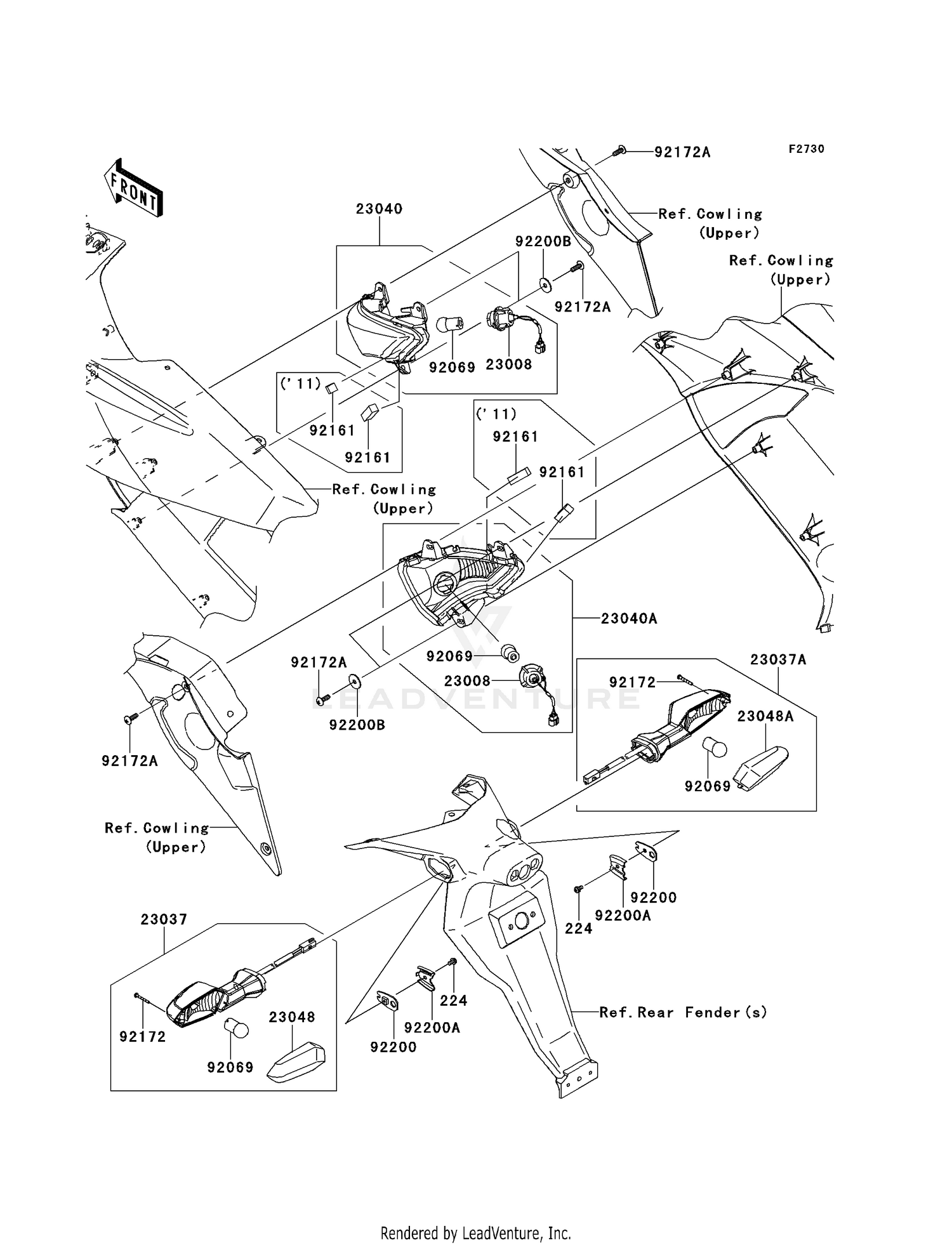

2009 Kawasaki NINJA 650R TURN SIGNALS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#224
SCREW-PAN-WP-CROS,4X8
224AB0408
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SIGNAL LA
23008-0101
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#23037
LAMP-ASSY-SIGNAL,RR,L
23037-0161
Superseded by 23037-0299
|
$88.59 | ||
|
Available to order. Add to View Price |
|||
|
#23037A
LAMP-ASSY-SIGNAL,RR,R
23037-0162
Superseded by 23037-0301
|
$55.00 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP-SIGNAL,FR,LH
23040-0097
|
$69.52 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,FR,RH
23040-0098
|
$69.52 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP,RR,LH
23048-0014
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#23048A
LENS-SIGNAL LAMP,RR,RH
23048-0015
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 10W
92069-0024
Superseded by 92069-0106
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,2.9X22
92172-0395
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,TAPPING,5X16
92172-0427
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,SIGNAL LAMP
92200-0164
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,SIGNAL LAMP
92200-0165
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,5.5X20X1.2
92200-0284
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
