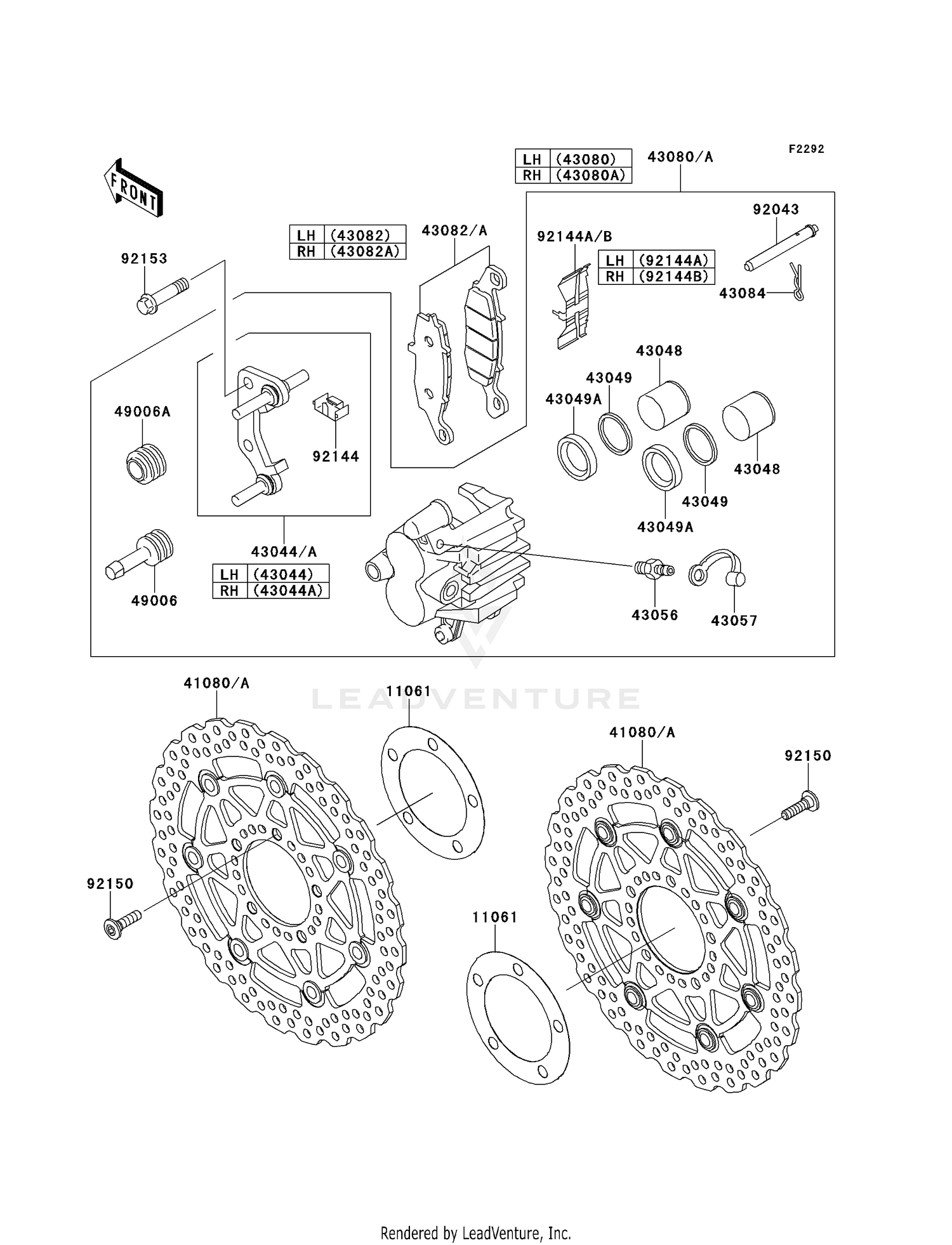

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,DISC PLATE
11061-0029
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#41080A
DISC,FR,BLACK+DISC SI
41080-0103-11I
|
$339.23 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER,FR,LH
43044-1115
|
$142.56 | ||
|
Available to order. Add to View Price |
|||
|
#43044A
HOLDER-COMP-CALIPER,FR,RH
43044-1116
|
$138.27 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-1073
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-1068
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1092
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-1054
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,FR,LH,BLACK
43080-5017-DJ
|
$307.49 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,FR,RH,BLACK
43080-5028-DJ
|
$366.73 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE,LH
43082-0050
|
$55.72 | ||
|
Available to order. Add to View Price |
|||
|
#43082A
PAD-ASSY-BRAKE,RH
43082-0051
|
$55.72 | ||
|
Available to order. Add to View Price |
|||
|
#43084
CLAMP,PAD
43084-003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1054
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1095
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,PAD
92043-1489
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,STOPPER
92144-1831
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,PAD,LH
92144-1832
|
$25.41 | ||
|
Available to order. Add to View Price |
|||
|
#92144B
SPRING,PAD,RH
92144-1844
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X30
92150-1771
Superseded by 92154-1865
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,10X41
92153-0587
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
