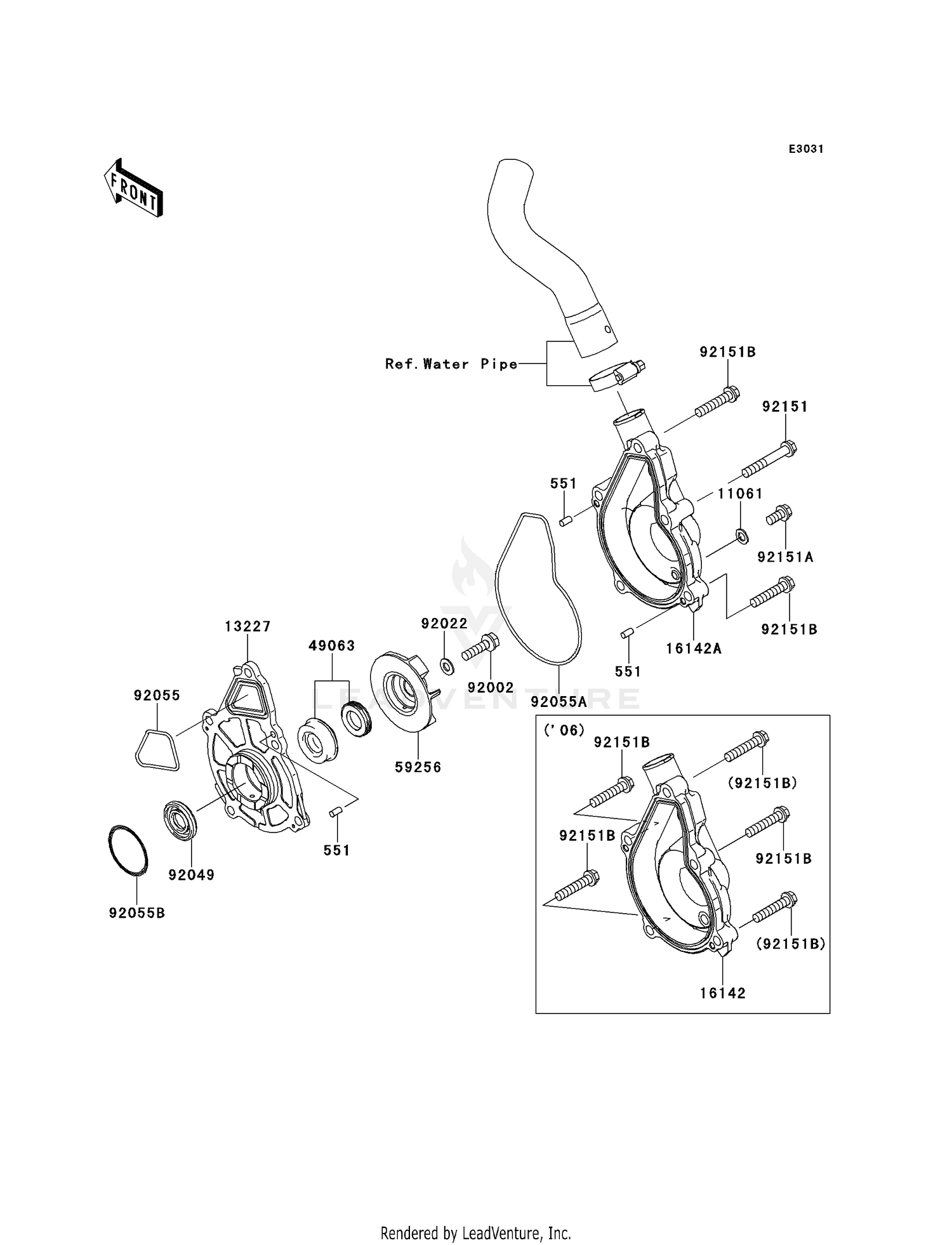

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET
11061-0107
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#13227
HOUSING
13227-0012
|
$47.11 | ||
|
Available to order. Add to View Price |
|||
|
#16142A
COVER-PUMP
16142-0047
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-1055
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-0007
|
$29.29 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X22
92002-1154
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,12X28.55X5
92049-1259
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,CASE-HOUSING
92055-0082
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,HOUSING-PUMP COVER
92055-0083
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,33.2MM
92055-1155
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X40
92151-1131
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT-FLANGED-SMALL,6X12
92151-1133
Superseded by 132BC0612
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT-FLANGED-SMALL,6X30
92151-1134
Superseded by 132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
