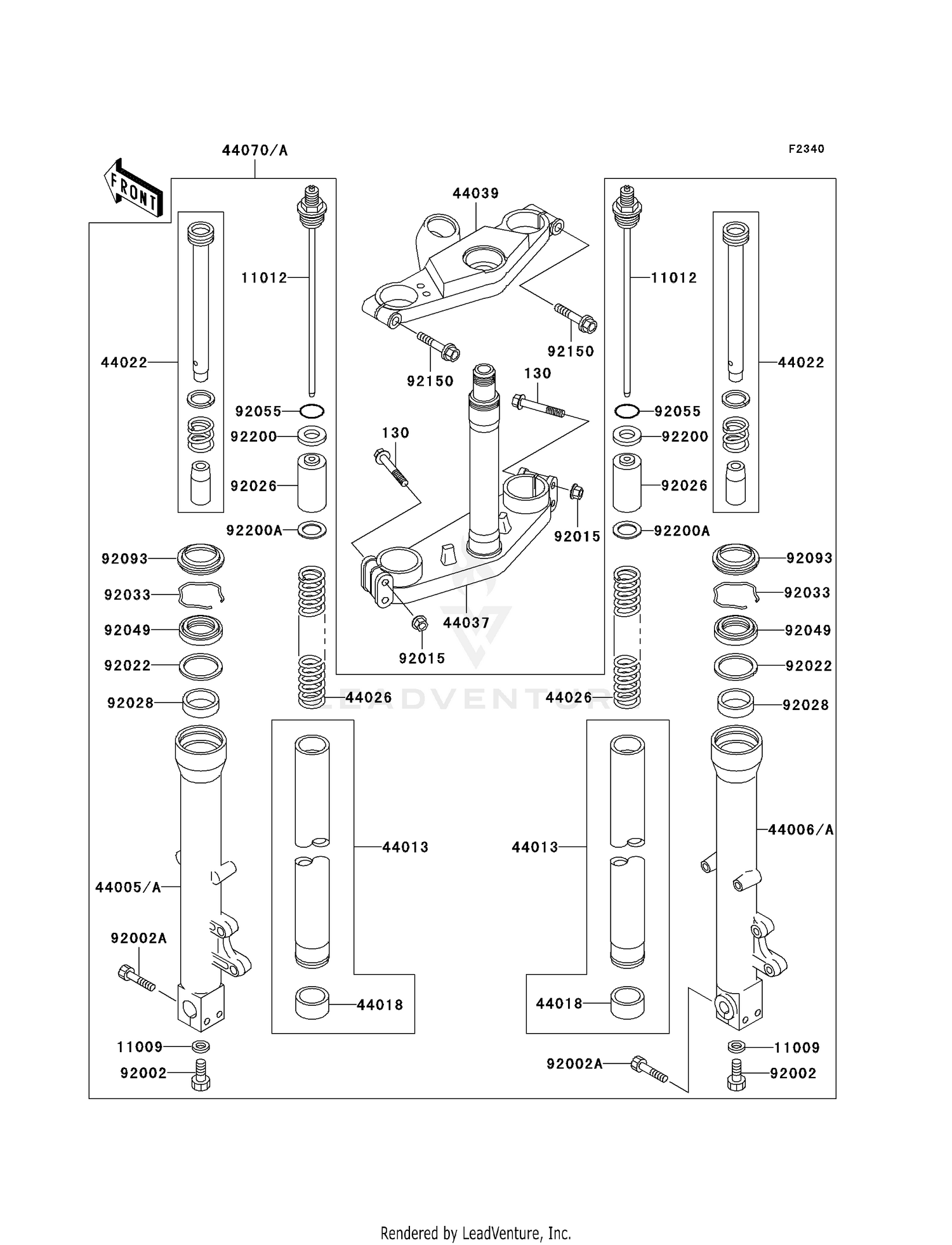

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X50
130G0850
Superseded by 130BA0850
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,FORK DRAIN PLUG
11009-1553
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK
11012-1848
|
$215.98 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER,
44005-1324-EZ
Superseded by 44005-1378-EZ
|
$496.31 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1322-EZ
Superseded by 44006-1377-EZ
|
$407.67 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1384
|
$400.01 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK,INNER PIPE
44018-1056
|
$27.35 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1287
|
$192.20 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1579
|
$77.59 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1312
|
$539.04 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,C.G
44039-1237-EZ
|
$267.35 | ||
|
Available to order. Add to View Price |
|||
|
#44070
DAMPER-ASSY,FORK SET,
44070-1396-EZ
Superseded by 44070-1588-EZ
|
$1,579.00 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FORK DRAIN
92002-1650
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT-SOCKET,8X45
92002-1847
Superseded by 120CA0845
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1485
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK,L=125
92026-1421
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1581
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1392
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1330
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,10X45
92150-1210
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1023
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1253
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
