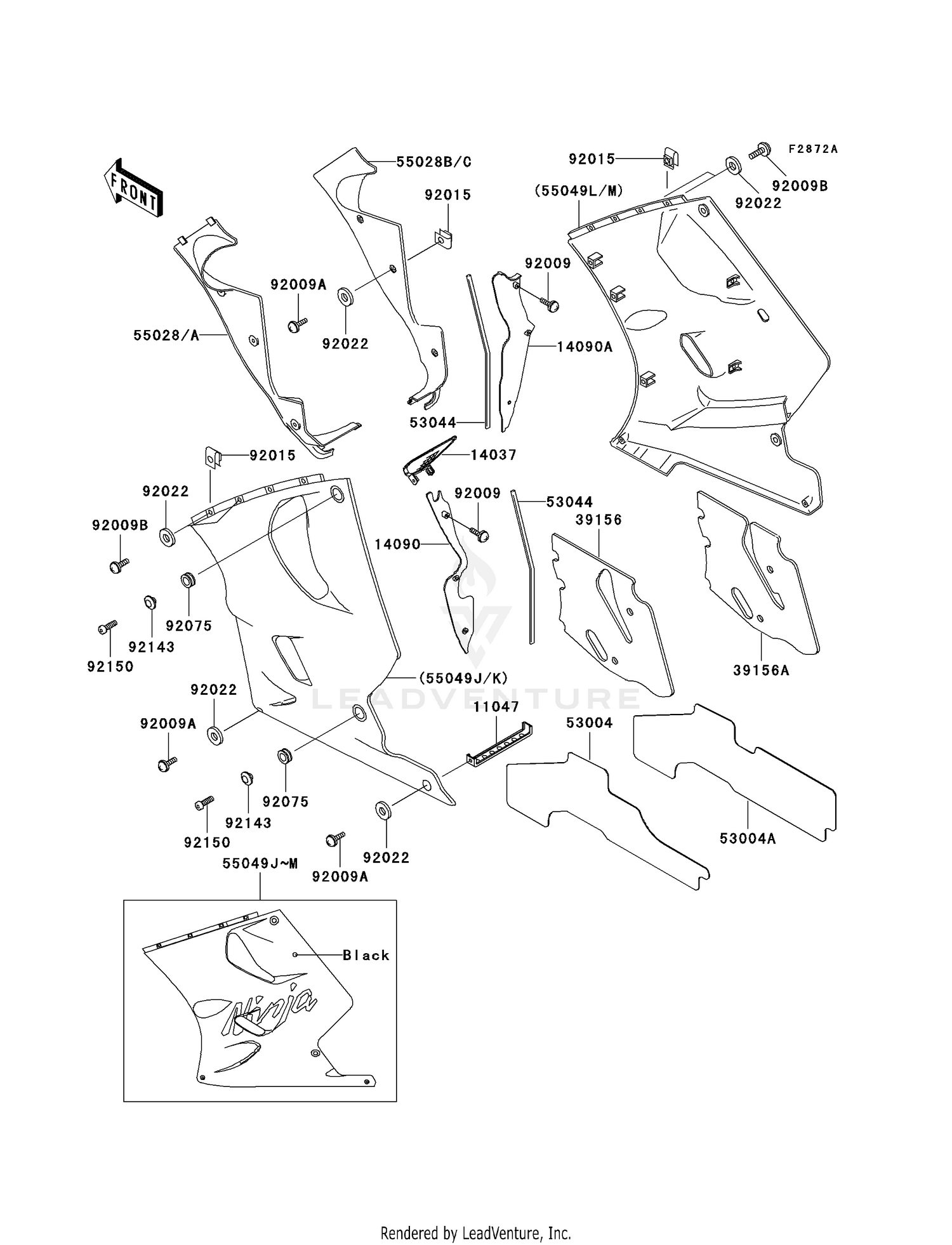

Cowling Lowers (zx1100-d2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11047
BRACKET
11047-1080
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN,FR COWLING
14037-1176
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,HEAT GUARD,LH
14090-1283
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,HEAT GUARD,RH
14090-1284
|
$32.60 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,LWR COWLING,LH,UP
39156-1310
|
$17.25 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,LWR COWLING,RH,UP
39156-1311
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#53004
MAT,LWR COWLING,LH,LW
53004-1074
|
$89.19 | ||
|
Available to order. Add to View Price |
|||
|
#53004A
MAT
53004-1075
|
$102.68 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,INNER COVER,RH
53044-1213
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#55028
COWLING,FR,LH,P.G.BLACK
55028-1298-RL
|
|||
|
Unavailable |
|||
|
#55028A
COWLING-FR,LH,P.G.BLK
55028-1298-86
|
$40.07 | ||
|
Available to order. Add to View Price |
|||
|
#55028B
COWLING,FR,RH,P.G.BLACK
55028-1299-RL
|
|||
|
Unavailable |
|||
|
#55028C
COWLING-FR,RH,P.G.BLK
55028-1299-86
|
$62.39 | ||
|
Available to order. Add to View Price |
|||
|
#55049J
COWLING.,LWR,LH,P.G.BLACK
55049-5231-RL
|
|||
|
Unavailable |
|||
|
#55049K
COWLING-LWR,LH,P.G.BL
55049-5231-86
|
$537.73 | ||
|
Available to order. Add to View Price |
|||
|
#55049L
COWLING.,LWR,RH,P.G.BLACK
55049-5232-RL
|
|||
|
Unavailable |
|||
|
#55049M
COWLING-LWR,RH,P.G.BL
55049-5232-86
|
$504.70 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X14
92009-1197
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X16,BLACK
92009-1654
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW
92009-1656
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,5MM
92015-1798
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1634
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,BLACK
92143-1226
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,6X18
92150-1553
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
