2006 Kawasaki NINJA ZX-14 Fuel Tank OEM Parts

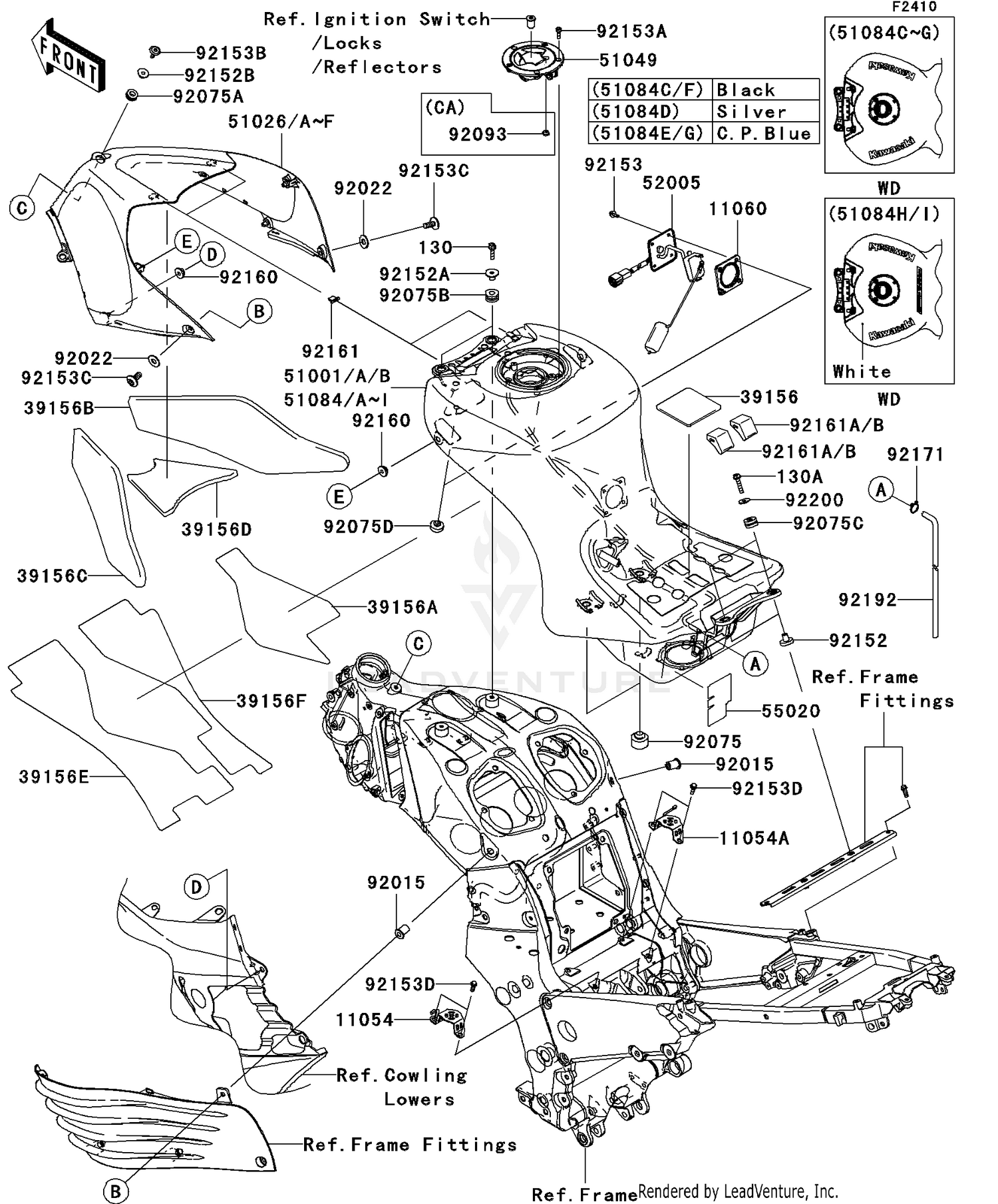

Fuel Tank Diagram

Item	MSRP	Qty
#11054 BRACKET,FUEL TANK,CNT,LH 11054-0681	$9.33
Available to order. Add to View Price
#11054A BRACKET,FUEL TANK,CNT 11054-0690	$12.87
Available to order. Add to View Price
#11060 GASKET,FUEL GAUGE 11060-1952	$20.44
Available to order. Add to View Price
#39156 PAD,SEAT 39156-0129	$5.79
Available to order. Add to View Price
#39156A PAD,FUEL TANK,RH 39156-0147	$8.69
Available to order. Add to View Price
#39156B PAD,FUEL TANK COVER,R 39156-0159	$22.48
Available to order. Add to View Price
#39156C PAD,FUEL TANK COVER,L 39156-0160	$22.48
Available to order. Add to View Price
#39156D PAD,FUEL TANK COVER,C 39156-0161	$15.50
Available to order. Add to View Price
#39156E PAD,FUEL TANK,LH 39156-0173	$42.51
Available to order. Add to View Price
#39156F PAD,FUEL TANK,RH 39156-0174	$42.51
Available to order. Add to View Price
#51001 TANK-COMP-FUEL,EBONY 51001-0160-H8 Superseded by 51001-0182-H8	$1,198.26
Available to order. Add to View Price
#51001A TANK-ASSY-FUEL,P.RED 51001-0160-234 Superseded by 51073-0016-234	$1,198.26
Available to order. Add to View Price
#51001B TANK-ASSY-FUEL,C.T.BL 51001-0160-235 Superseded by 51073-0016-235	$1,066.92
Available to order. Add to View Price
#51026 COVER TANK,FUEL,EBONY 51026-0007-H8	$279.35
Available to order. Add to View Price
#51026C COVER TANK,FUEL,P.RED 51026-0007-234	$267.16
Available to order. Add to View Price
#51026D COVER TANK,FUEL,C.T.B 51026-0007-235	$292.49
Available to order. Add to View Price
#51049 CAP-TANK,FUEL 51049-0012 Superseded by 51049-0744	$130.51
Available to order. Add to View Price
#51084 TANK-COMP-FUEL,EBONY 51084-5431-H8	$1,094.74
Available to order. Add to View Price
#51084A TANK-COMP-FUEL,P.RED 51084-5431-234	$1,094.74
Available to order. Add to View Price
#51084B TANK-COMP-FUEL,C.T.BL 51084-5431-235	$1,109.27
Available to order. Add to View Price
#130 BOLT-FLANGED,6X25 130BA0625	$1.17
Available to order. Add to View Price
#130A BOLT-FLANGED,6X30 130BA0630	$1.42
Available to order. Add to View Price
#52005 GAUGE,FUEL 52005-0026	$201.05
Available to order. Add to View Price
#55020 GUARD,FUEL TANK 55020-0290	$16.83
Available to order. Add to View Price
#92015 NUT,RUBBER,6MM 92015-1692	$7.09
Available to order. Add to View Price
#92022 WASHER,6.5X16X1 92022-1143	$3.80
Available to order. Add to View Price
#92075 DAMPER 92075-015	$4.84
Available to order. Add to View Price
#92075A DAMPER 92075-1634	$4.54
Available to order. Add to View Price
#92075B DAMPER,10X24X12 92075-1690	$4.84
Available to order. Add to View Price
#92075C DAMPER 92075-209	$4.54
Available to order. Add to View Price
#92075D DAMPER,9X24X14 92075-281	$6.02
Available to order. Add to View Price
#92093 SEAL,FUEL TANK CAP 92093-1030	$7.50
Available to order. Add to View Price
#92152 COLLAR 92152-0364	$10.90
Available to order. Add to View Price
#92152A COLLAR 92152-0365	$1.31
Available to order. Add to View Price
#92152B COLLAR 92152-0424	$5.88
Available to order. Add to View Price
#92153 BOLT,FLANGED,5X12 92153-1421 Superseded by 92154-1856	$1.73
Available to order. Add to View Price
#92153A BOLT,SOCKET,5X16 92153-1616	$1.31
Available to order. Add to View Price
#92153B BOLT,SOCKET,6X23 92153-1626 Superseded by 92153-1267	$2.72
Available to order. Add to View Price
#92153C BOLT,SOCKET,6X30 92153-1627 Superseded by 92151-1605	$2.28
Available to order. Add to View Price
#92153D BOLT,FLANGED,6X20 92153-1694	$2.09
Available to order. Add to View Price
#92160 DAMPER 92160-1613	$3.62
Available to order. Add to View Price
#92161 DAMPER 92161-0365	$5.16
Available to order. Add to View Price
#92161A DAMPER 92161-0430 Superseded by 92161-0458	$8.77
Available to order. Add to View Price
#92171 CLAMP 92171-0573	$1.31
Available to order. Add to View Price
#92192 TUBE,DRAIN 92192-0374 Superseded by 92192-0693	$19.32
Available to order. Add to View Price
#92200 WASHER,6.5X20X1.6 92200-0283	$1.36
Available to order. Add to View Price
