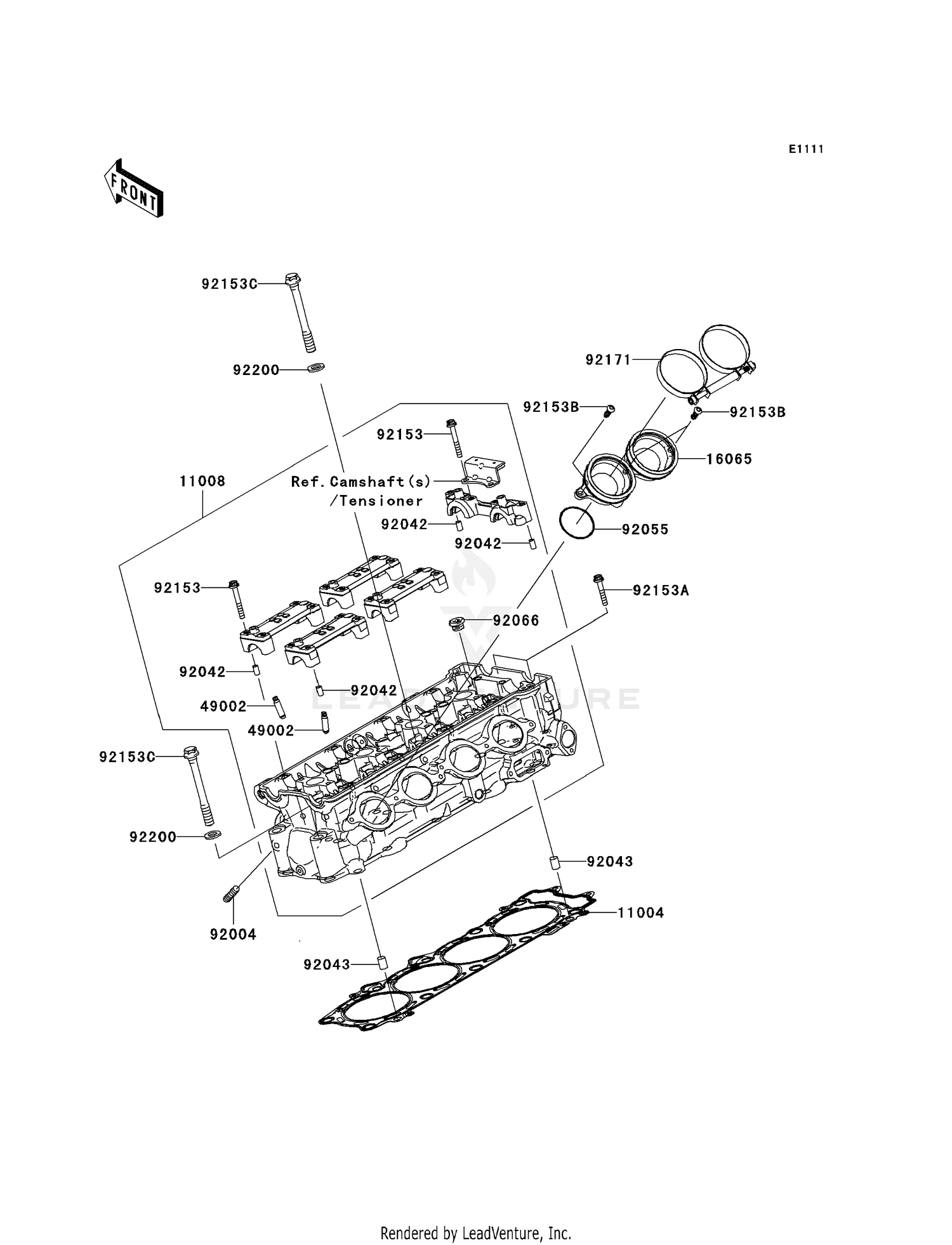

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11004
GASKET-HEAD
11004-0059
|
$136.56 | ||
|
Available to order. Add to View Price |
|||
|
#11008
HEAD-COMP-CYLINDER
11008-0125
Superseded by 11008-0743
|
$2,898.89 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-0026
|
$62.63 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-0014
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X22
92004-0025
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8.2X10X14
92043-1264
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,47X1.9
92055-1600
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,18X10
92066-0016
Superseded by 92066-0832
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X45
92153-0656
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X35
92153-1556
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,TORX,6X18
92153-1629
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,FLANGED-SHALL,11
92153-1674
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0759
Superseded by 92171-1892
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,11.5X21X2.3
92200-0341
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
