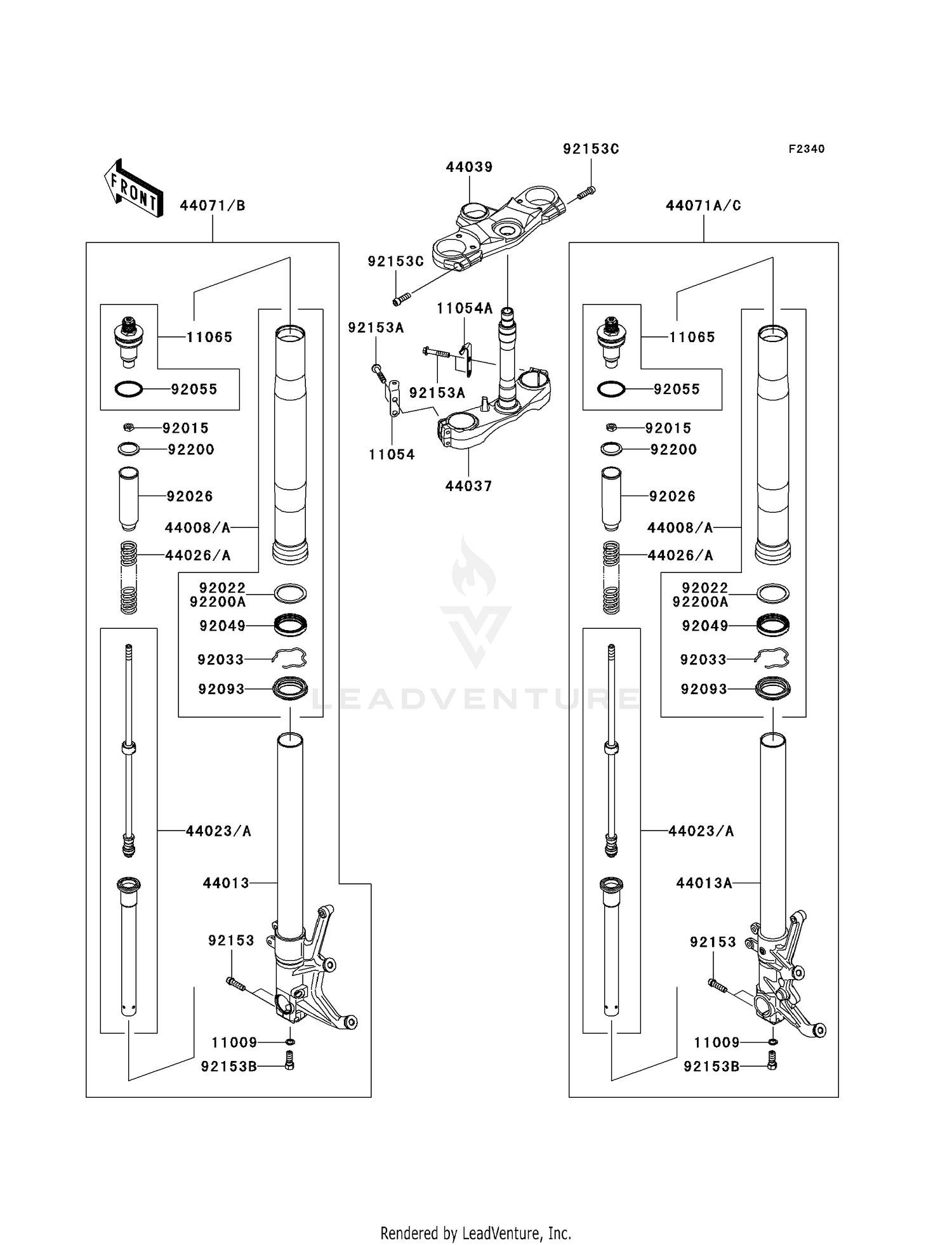

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1325
Superseded by 44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,HARNESS CLAMP,LH
11054-0480
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#11054A
BRACKET,UNDER BRACKET,RH
11054-0481
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0147
|
$195.57 | ||
|
Available to order. Add to View Price |
|||
|
#44008A
PIPE-FORK OUTER,GOLD
44008-0052-ES
|
|||
|
Unavailable |
|||
|
#44013
PIPE-FORK INNER,LH,F.
44013-0093-11E
|
$628.09 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH,F.
44013-0094-11E
|
$628.09 | ||
|
Available to order. Add to View Price |
|||
|
#44023A
CYLINDER-SET-FORK
44023-0094
|
$454.80 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK
44026-0158
|
$160.97 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0039
|
$696.84 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,F.S
44039-0060-11E
|
$323.71 | ||
|
Available to order. Add to View Price |
|||
|
#44071B
DAMPER-ASSY,FORK,LH,G
44071-5118
|
$1,198.46 | ||
|
Available to order. Add to View Price |
|||
|
#44071C
DAMPER-ASSY,FORK,RH,G
44071-5119
|
$1,198.46 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1905
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK
92026-0045
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-1522
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK,AIR TUBE
92055-1333
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1480
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-0006
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,8X40
92153-0484
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,10X25
92153-0548
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,8X27
92153-0768
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0085
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
