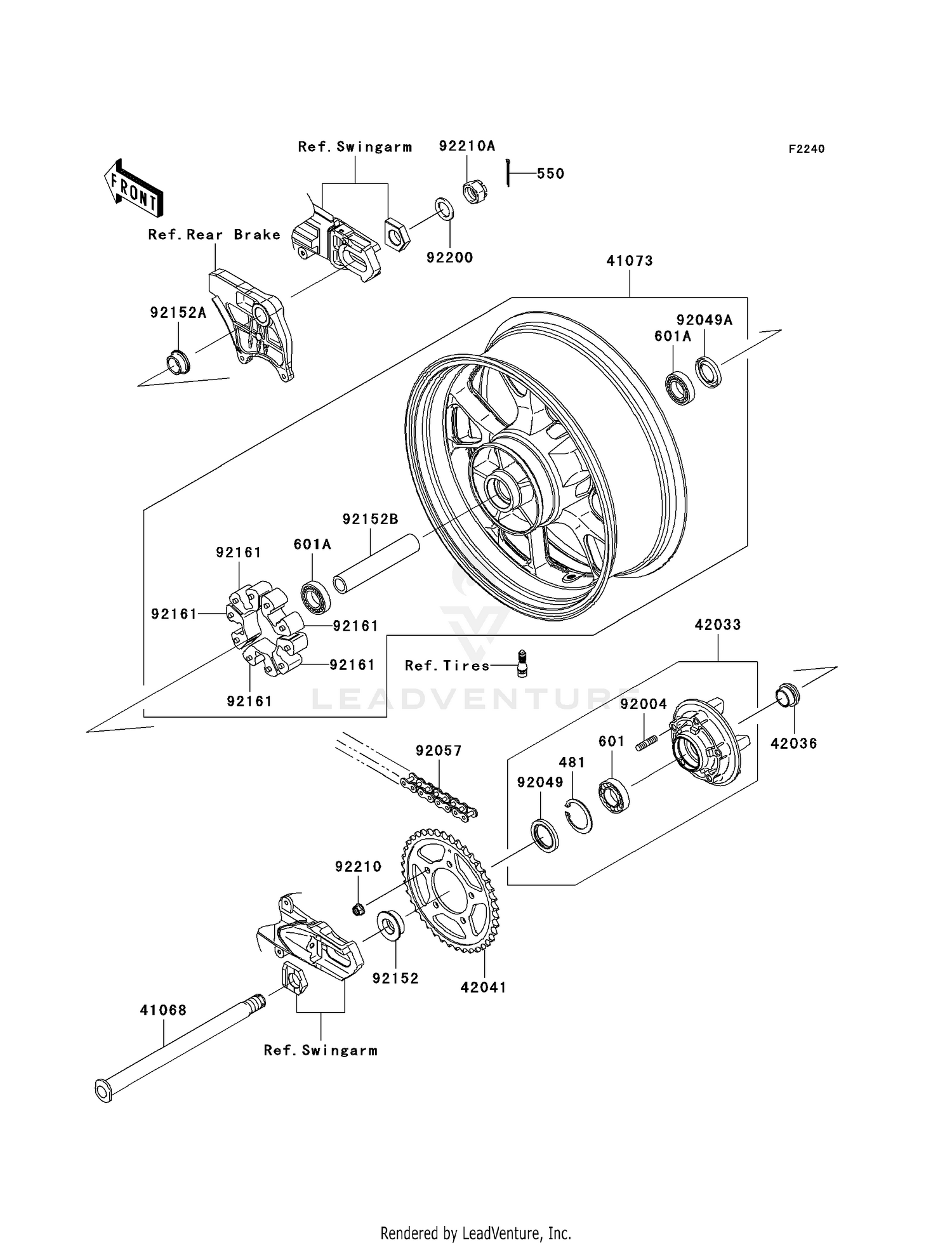

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR,24X350
41068-0050
Superseded by 41068-0612
|
$118.81 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,G.BLACK
41073-0064-18F
Superseded by 41073-0617-18F
|
$1,076.58 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-0021
|
$254.87 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=22
42036-1279
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,41T
42041-0023
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X24
92004-0029
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,PJN40556
92049-1263
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN 32 52 5
92049-1375
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID50ZVZX
92057-0146
|
$441.58 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR AXLE,LH,L=16.5
92152-0340
Superseded by 92152-2767
|
$37.82 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,RH,L=16
92152-0341
Superseded by 92152-2768
|
$55.69 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR HUB,L=152.5
92152-1080
|
$32.22 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-1286
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,25.5X38X3.2
92200-0278
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CASTLE,24MM
92210-0280
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
