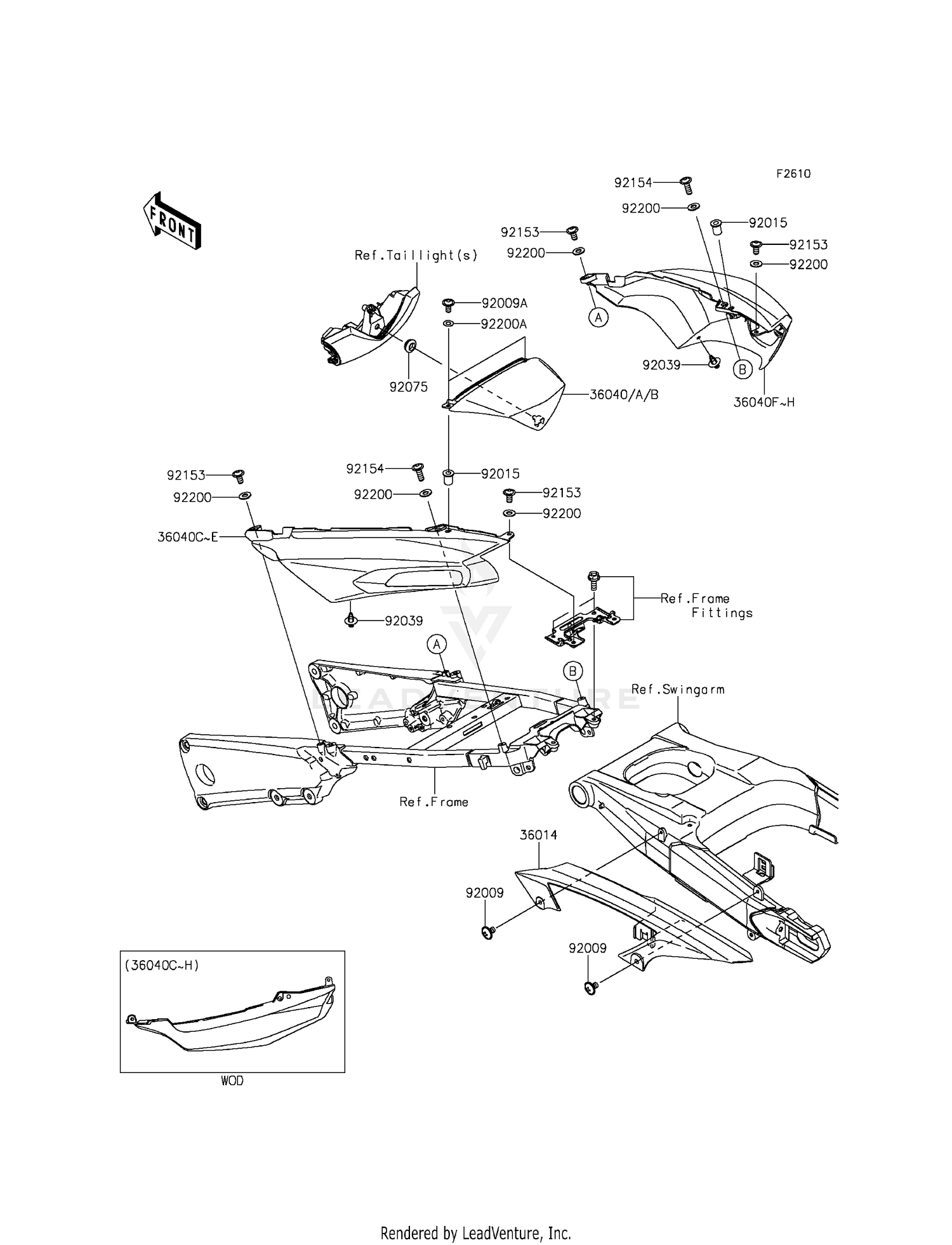

Side Covers/chain Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36014
CASE-CHAIN
36014-0030
|
$71.69 | ||
|
Available to order. Add to View Price |
|||
|
#36040A
COVER-TAIL,CNT,M.M.C.GRAY
36040-0058-51B
|
$92.60 | ||
|
Available to order. Add to View Price |
|||
|
#36040B
COVER-TAIL,CNT,M.S.BLACK
36040-0058-660
|
$92.60 | ||
|
Available to order. Add to View Price |
|||
|
#36040D
COVER-TAIL,LH,M.M.C.GRAY
36040-0136-51B
|
$256.82 | ||
|
Available to order. Add to View Price |
|||
|
#36040E
COVER-TAIL,LH,M.S.BLACK
36040-0136-660
Superseded by 36041-0027-660
|
$247.25 | ||
|
Available to order. Add to View Price |
|||
|
#36040G
COVER-TAIL,RH,M.M.C.GRAY
36040-0137-51B
|
$247.28 | ||
|
Available to order. Add to View Price |
|||
|
#36040H
COVER-TAIL,RH,M.S.BLACK
36040-0137-660
|
$247.25 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10
92009-1661
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X16
92009-1909
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1289
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,6X16X7
92075-1011
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X12
92153-1617
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X18
92154-0139
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X14X1
92200-1388
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,NYLON,5.3X11.5X0.5
92200-1480
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
