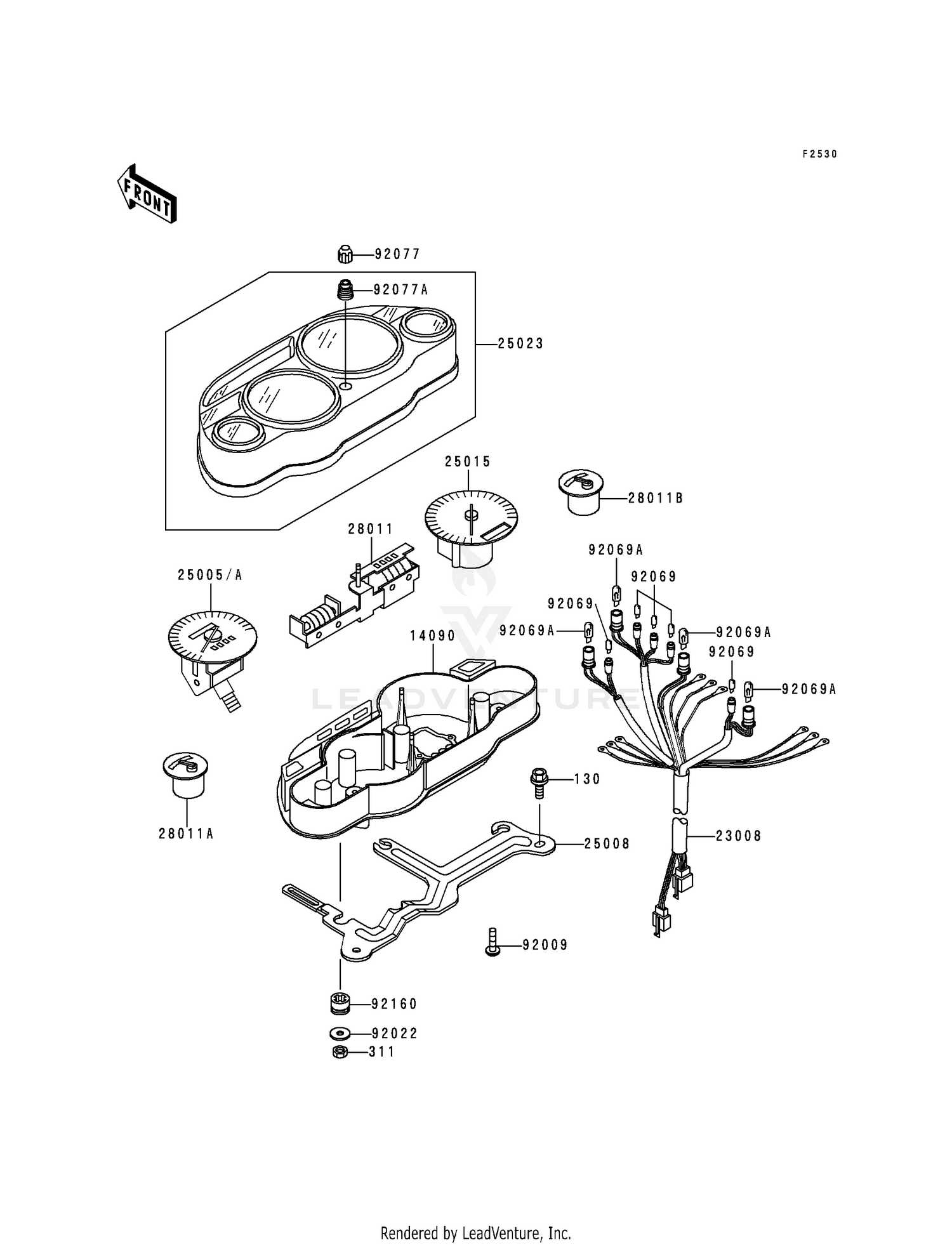

Meter(s)(zx600-e4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X14
130J0614
Superseded by 130BB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,METER HOUSING
14090-1286
|
$106.60 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1504
|
$115.54 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,KPH
25005-1529
|
|||
|
Unavailable |
|||
|
#25005A
SPEEDOMETER,MPH
25005-1530
|
$304.44 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1195
|
$81.84 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1318
|
$472.47 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1201
|
$165.20 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,TRIP
28011-1130
|
$120.29 | ||
|
Available to order. Add to View Price |
|||
|
#28011A
METER,FUEL
28011-1131
|
$120.29 | ||
|
Available to order. Add to View Price |
|||
|
#28011B
METER,TEMP
28011-1132
|
$120.29 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X14
92009-1503
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X18X1.2
92022-1369
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 1.7W,T10
92069-1059
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,TRIP RESET KNOB
92077-1094
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#92077A
KNOB,TRIP RESET
92077-1112
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1436
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
