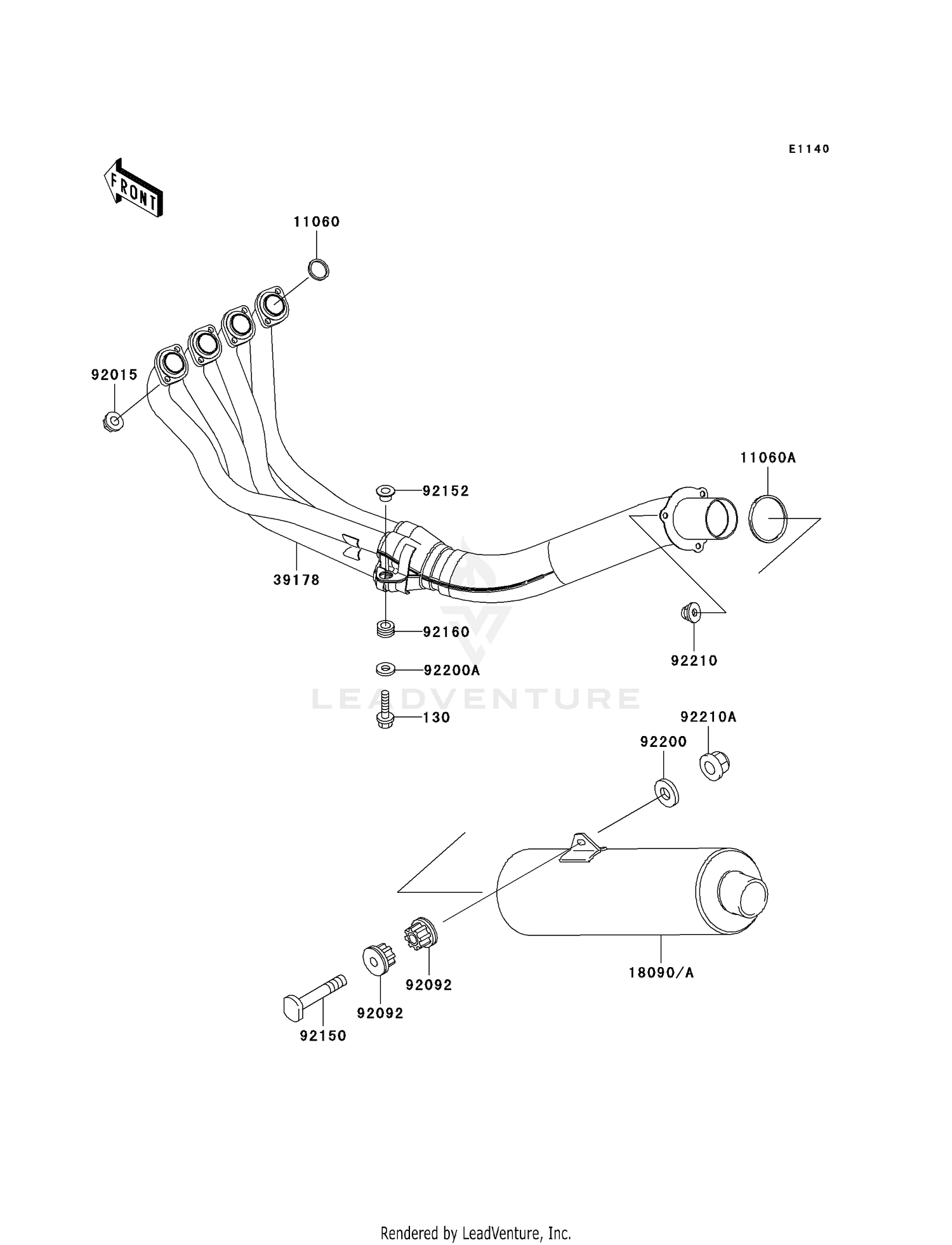

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X35
130Z0835
Superseded by 130CD0835
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,EXHAUST PIPE
11060-1203
Superseded by 11061-1387
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,MUFFLER CONNEC
11060-1813
|
$23.39 | ||
|
Available to order. Add to View Price |
|||
|
#18090
BODY-COMP-MUFFLER
18090-1820
|
$811.32 | ||
|
Available to order. Add to View Price |
|||
|
#18090A
BODY-COMP-MUFFLER
18090-1821
|
$908.05 | ||
|
Available to order. Add to View Price |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-1318
|
$1,224.48 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1402
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1013
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X55
92150-1792
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1211
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,MUFFLER
92160-1543
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X25X2.0
92200-1377
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,8.5X28X3.2
92200-1392
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CAP,8MM
92210-1120
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CAP,10MM
92210-1121
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
