1998 Kawasaki NINJA ZX-6R Chassis Electrical Equipment OEM Parts

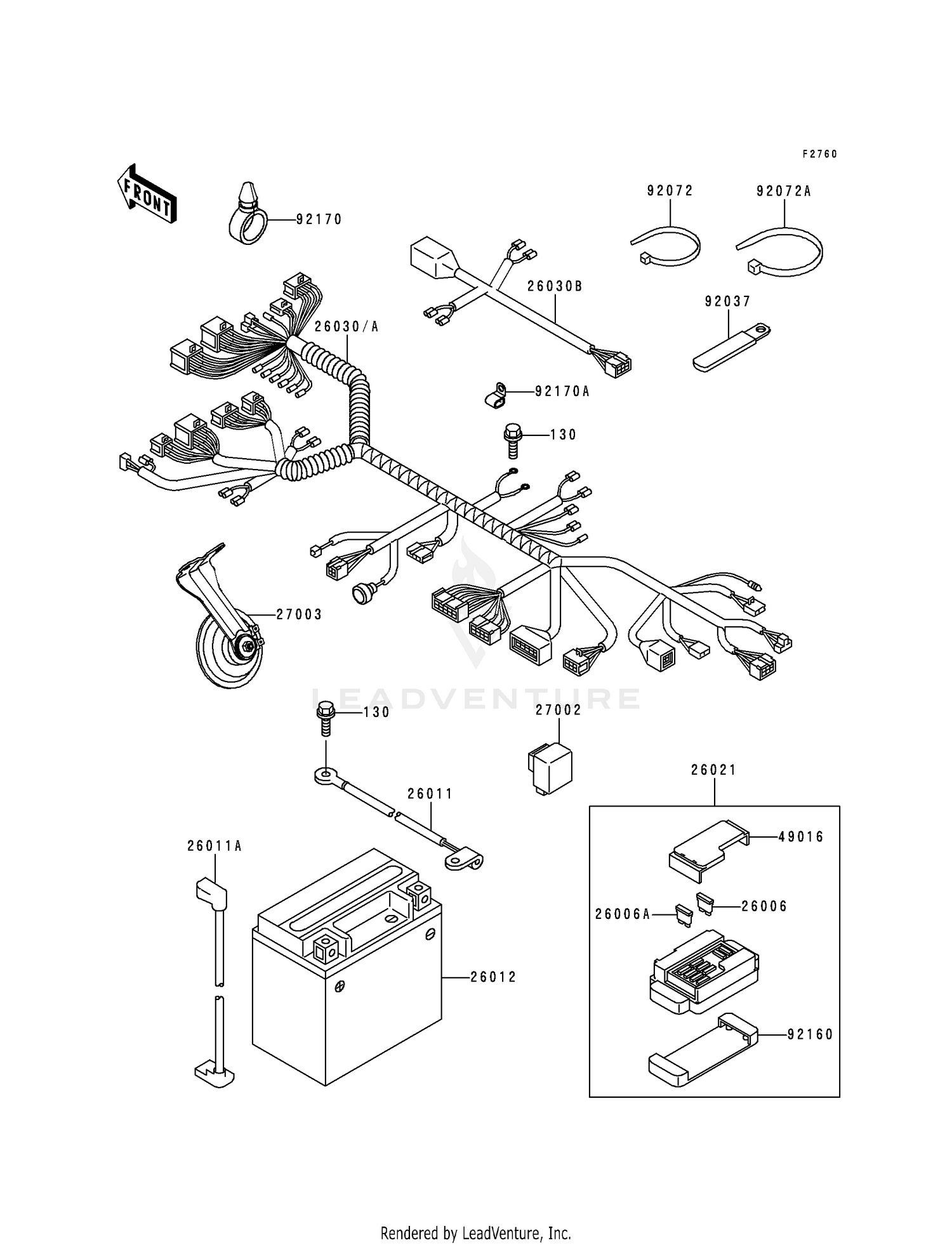

Chassis Electrical Equipment Diagram

Item	MSRP	Qty
#130 BOLT-FLANGED,6X10 130V0610 Superseded by 130BA0610	$1.17
Available to order. Add to View Price
#26006 FUSE,BLADE,30A,GREEN 26006-1067 Superseded by 26006-1006	$4.80
Available to order. Add to View Price
#26006A FUSE,BLADE,10A,RED 26006-1068 Superseded by 26006-1007	$4.80
Available to order. Add to View Price
#26011 WIRE-LEAD,BATTERY(-) 26011-1692	$23.26
Available to order. Add to View Price
#26011A WIRE-LEAD,BATTERY(+) 26011-1693	$31.94
Available to order. Add to View Price
#26012 BATTERY,YTX9-BS,12V 8AH 26012-1326 Superseded by 26012-1524	$136.54
Unavailable
#26021 JUNCTION BOX 26021-1096 Superseded by 26021-0070	$161.47
Available to order. Add to View Price
#26030 HARNESS,MAIN 26030-1552	$328.43
Available to order. Add to View Price
#26030A HARNESS,MAIN 26030-1553	$334.32
Available to order. Add to View Price
#26030B HARNESS,FR 26030-1567	$55.44
Available to order. Add to View Price
#27002 RELAY-ASSY,TURN SIGNAL 27002-1101	$69.60
Available to order. Add to View Price
#27003 HORN 27003-1409	$67.80
Available to order. Add to View Price
#49016 COVER-SEAL,FUSE 49016-1177	$9.21
Available to order. Add to View Price
#92037 CLAMP,L=60 92037-1069 Superseded by 92171-0652	$2.54
Available to order. Add to View Price
#92072 BAND,L=202 92072-1195	$1.53
Available to order. Add to View Price
#92072A BAND,L=365 92072-1197	$7.57
Available to order. Add to View Price
#92160 DAMPER,JUNCTION BOX 92160-1650	$12.96
Available to order. Add to View Price
#92170 CLAMP 92170-1067	$7.19
Available to order. Add to View Price
#92170A CLAMP 92170-1577	$3.73
Available to order. Add to View Price
