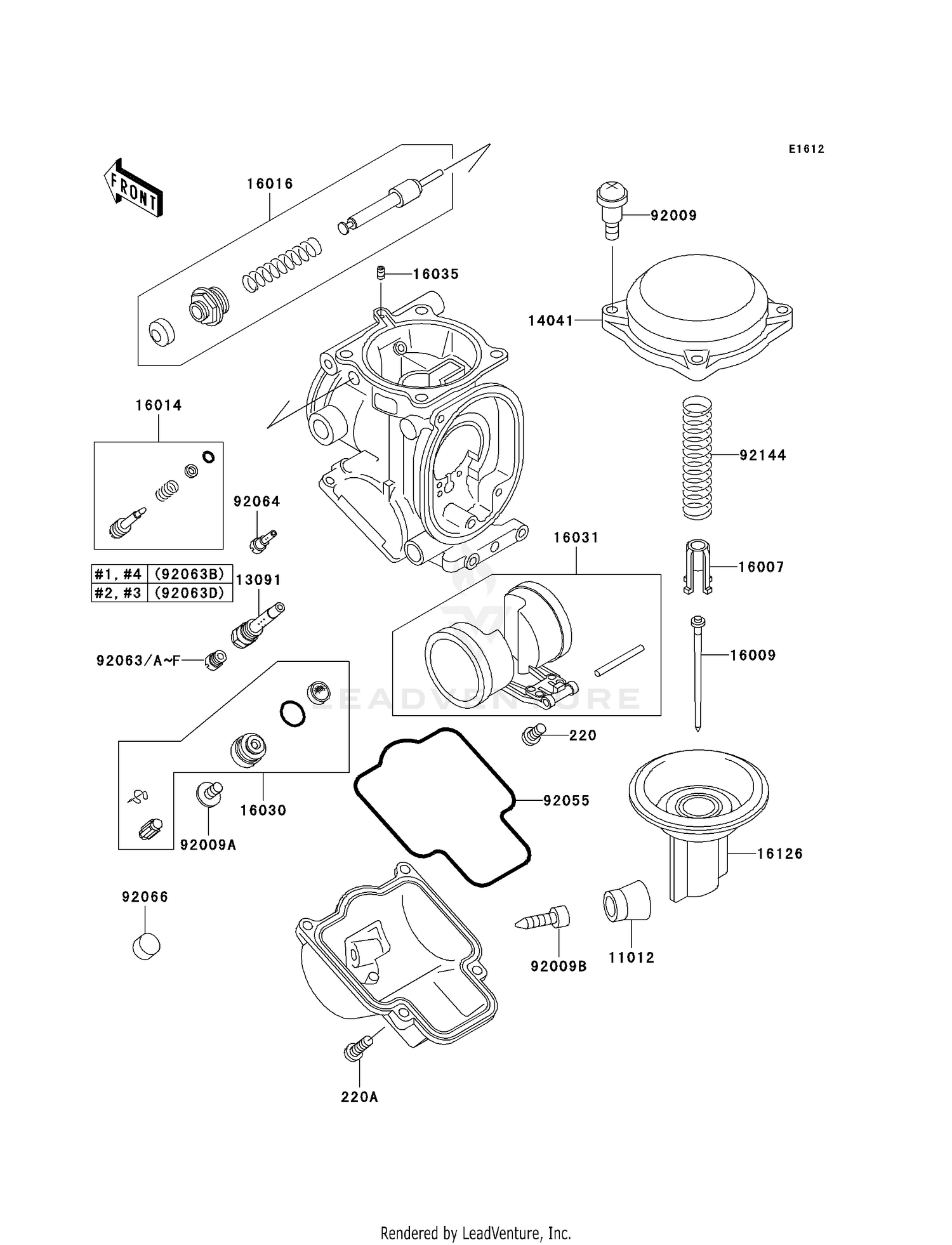

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,4X8
220D0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,DRAIN SCREW
11012-1675
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,#2
13091-1887
|
$34.24 | ||
|
Available to order. Add to View Price |
|||
|
#14041
COVER-COMP,MIXING
14041-1100
|
$83.60 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1117
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N14Q
16009-1892
|
$38.43 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1086
|
$35.96 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1090
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1076
|
$118.70 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1080
|
$57.07 | ||
|
Available to order. Add to View Price |
|||
|
#16035
JET-AIR,LEAK
16035-1055
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1319
|
$204.75 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4X4.4
92009-1549
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,4X8
92009-1550
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1426
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#160
92063-1345
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#165
92063-1347
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#170
92063-1386
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#175
92063-1387
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#180
92063-1388
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#185
92063-1390
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#190
92063-1391
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,VACUUM VALVE
92144-1962
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
