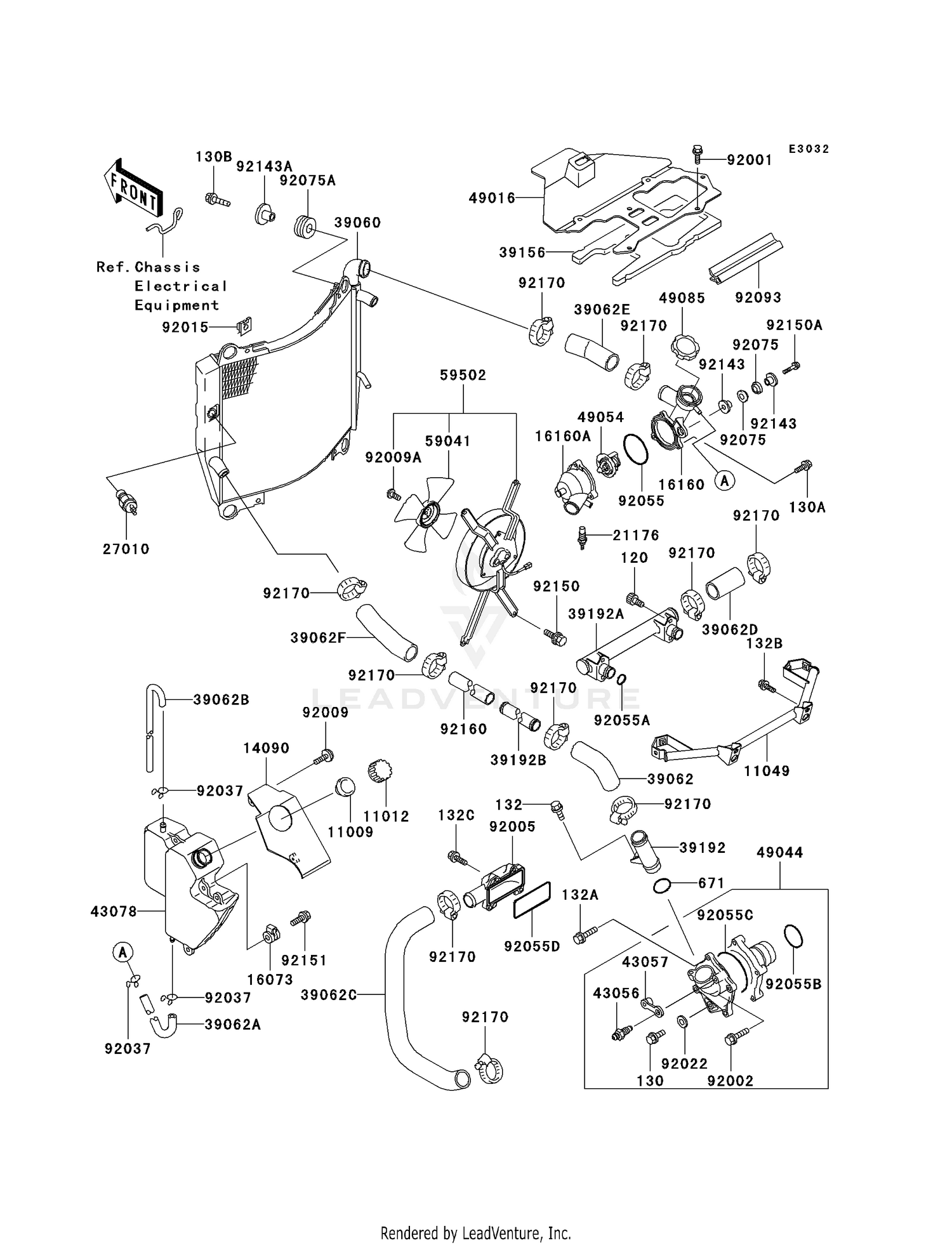

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11049
BRACKET,RADIATOR
11049-1349
|
$81.80 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,RESERVOIR
14090-1634
|
$39.21 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-1107
|
$5.28 | ||
|
Unavailable |
|||
|
#16160
BODY,THERMOSTAT CAP
16160-1252
|
$159.81 | ||
|
Available to order. Add to View Price |
|||
|
#16160A
BODY,THERMOSTAT CASE
16160-1253
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,WATER
21176-1054
|
$70.78 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FAN
27010-1202
|
$94.98 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-1133
|
$557.55 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,WATER PU
39062-1472
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,OVERFLOW
39062-1570
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,DRAIN
39062-1610
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,PUMP-CYL
39062-1660
|
$48.85 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,HEAD-THE
39062-1663
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,CAP-RADI
39062-1664
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#39062F
HOSE-COOLING,RADIATOR
39062-1666
|
$19.39 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,HEAD COVER
39156-1516
|
$21.38 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER
39192-1041
|
$35.38 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER
39192-1042
|
$108.44 | ||
|
Available to order. Add to View Price |
|||
|
#39192B
PIPE-WATER
39192-1047
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1051
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1170
|
$67.55 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1185
|
$37.34 | ||
|
Available to order. Add to View Price |
|||
|
#49044
PUMP-WATER
49044-1089
|
$334.37 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1067
Superseded by 49054-0004
|
$56.71 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1067
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#59041
FAN,FAN
59041-1057
|
$66.73 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-1135
|
$870.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X16
92001-1863
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X22
92002-1392
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1316
|
$37.04 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1436
Superseded by 92172-0010
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,FAN
92009-1900
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6MM
92022-1976
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,53.5X2.6
92055-112
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1282
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X12
120P0612
Superseded by 120CA0612
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10,BLACK
130C0610
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,5X20
130J0520
Superseded by 130BB0520
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X45
132J0645
Superseded by 132BB0645
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,8X12
132J0812
Superseded by 132BB0812
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,6X25
132Y0625
Superseded by 132BD0625
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,25MM
671B2525
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,33.2X2.4
92055-1424
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,WATER PUMP
92055-1495
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O
92055-1545
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,8MM
92075-1138
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1665
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-1276
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1057
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1063
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1186
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X25
92150-1829
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X30
92151-1086
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,WATER PIPE
92160-1297
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1284
Superseded by 92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
