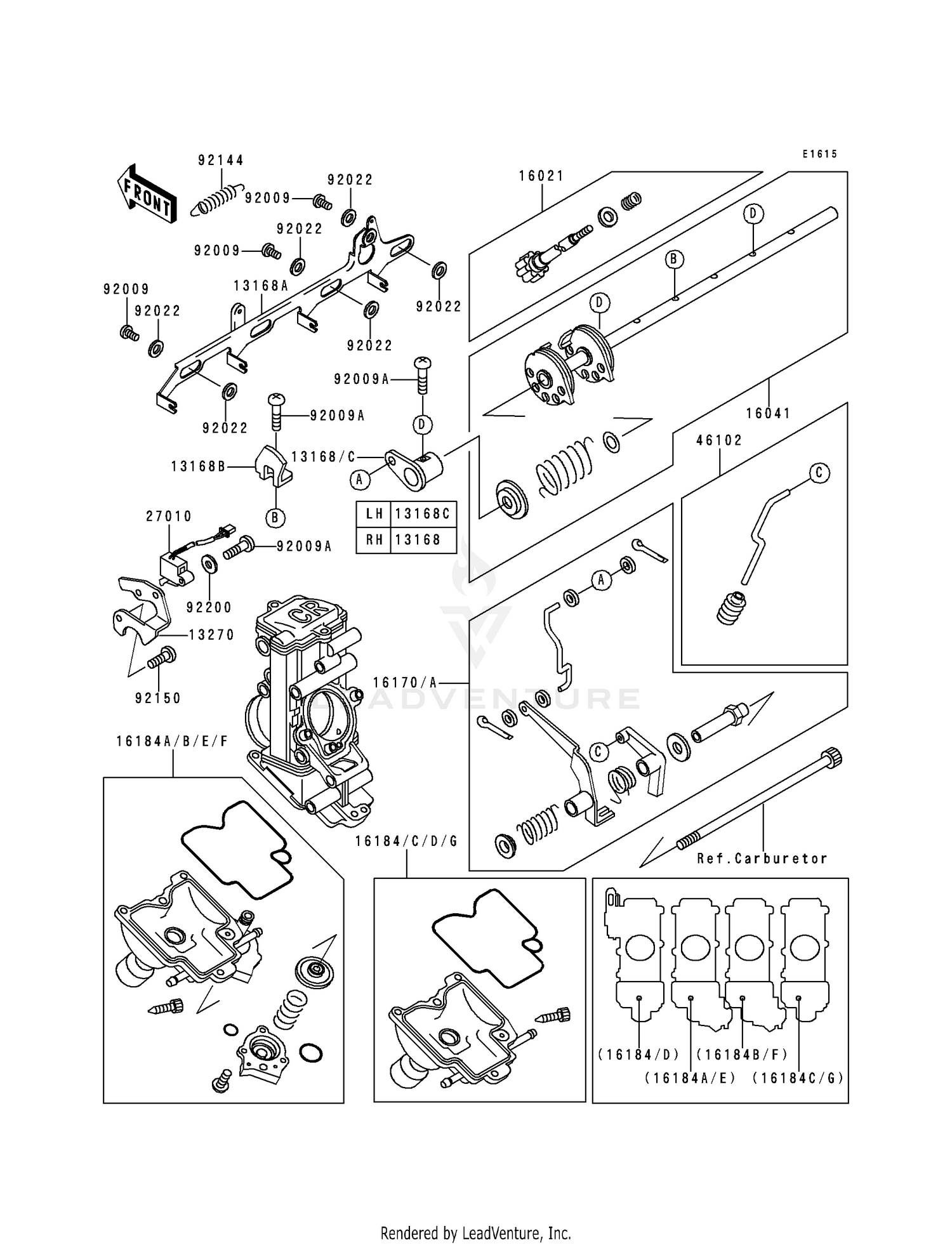

Accelerator Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER,ACCELERATOR LIN
13168-1489
|
$61.40 | ||
|
Available to order. Add to View Price |
|||
|
#13168A
LEVER,STARTER
13168-1593
|
$123.76 | ||
|
Available to order. Add to View Price |
|||
|
#13168B
LEVER,SWITCH
13168-1594
|
$42.81 | ||
|
Available to order. Add to View Price |
|||
|
#13168C
LEVER,ACCELERATOR LIN
13168-1595
|
$61.40 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,CRUISE CANSEL S
13270-1651
|
$64.26 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1210
|
$78.16 | ||
|
Available to order. Add to View Price |
|||
|
#16041
SHAFT-CARBURETOR
16041-1066
|
$408.14 | ||
|
Available to order. Add to View Price |
|||
|
#16170
LINK-ASSY,ACCELERATOR
16170-1053
|
$193.93 | ||
|
Available to order. Add to View Price |
|||
|
#16170A
LINK-ASSY,ACCELERATOR
16170-1054
|
$193.93 | ||
|
Available to order. Add to View Price |
|||
|
#16184
CHAMBER-ASSY-FLOAT,LH
16184-1071
Superseded by 16184-1075
|
$213.49 | ||
|
Available to order. Add to View Price |
|||
|
#16184A
CHAMBER-ASSY-FLOAT,LH
16184-1072
Superseded by 16184-1076
|
$279.04 | ||
|
Available to order. Add to View Price |
|||
|
#16184B
CHAMBER-ASSY-FLOAT,RH
16184-1073
Superseded by 16184-1077
|
$279.04 | ||
|
Available to order. Add to View Price |
|||
|
#16184C
CHAMBER-ASSY-FLOAT,RH
16184-1074
Superseded by 16184-1078
|
$213.49 | ||
|
Available to order. Add to View Price |
|||
|
#16184D
CHAMBER-ASSY-FLOAT,LH
16184-1075
|
$213.49 | ||
|
Unavailable |
|||
|
#16184E
CHAMBER-ASSY-FLOAT,LH
16184-1076
|
$279.04 | ||
|
Unavailable |
|||
|
#16184F
CHAMBER-ASSY-FLOAT,RH
16184-1077
|
$279.04 | ||
|
Unavailable |
|||
|
#16184G
CHAMBER-ASSY-FLOAT,RH
16184-1078
|
$213.49 | ||
|
Unavailable |
|||
|
#27010
SWITCH,CRUISE CANSEL
27010-1290
|
$55.40 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,ACCELERATOR PUMP
46102-1296
|
$30.60 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1262
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1631
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,STARTER LEVER
92144-1961
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1440
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1068
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
