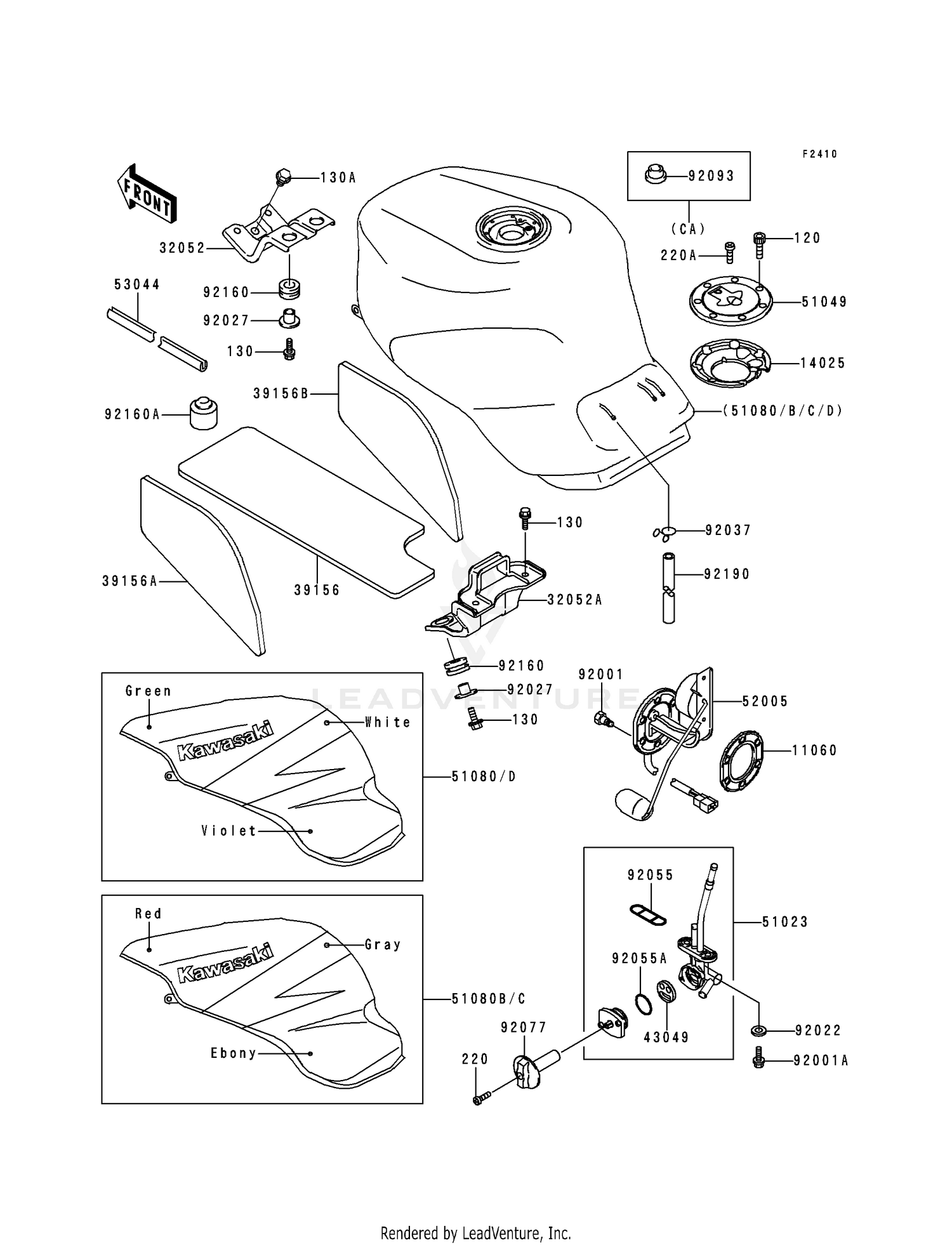

1994 Kawasaki NINJA ZX9R ZX900B FUEL TANK (ZX900-B1) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,FUEL GAUGE
11060-1337
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,TANK CAP
14025-1913
|
$20.19 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,FR
32052-1386
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#32052A
BRACKET-TANK,RR
32052-1387
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK,FR
39156-1392
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK,LH
39156-1394
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK,RH
39156-1395
|
$20.11 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,TAP VALVE
43049-1066
Superseded by 43049-1091
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1213
Superseded by 51023-1329
|
$97.48 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1091
Superseded by 51049-0018
|
$105.59 | ||
|
Available to order. Add to View Price |
|||
|
#51080
TANK-COMP-FUEL,GREEN/
51080-5081-89
|
$1,073.36 | ||
|
Available to order. Add to View Price |
|||
|
#51080B
TANK-COMP-FUEL,EBONY/
51080-5083-91
|
$1,138.01 | ||
|
Available to order. Add to View Price |
|||
|
#51080C
TANK-COMP-FUEL,EBONY/
51080-5084-91
|
$1,192.67 | ||
|
Available to order. Add to View Price |
|||
|
#51080D
TANK-COMP-FUEL,GREEN/
51080-5087-89
|
$1,073.36 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1108
|
$151.24 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,COWLING
53044-1120
|
$28.96 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FUEL GAUGE
92001-1069
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,6X20
92001-1091
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14.1
92027-1920
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130J0620
Superseded by 130BB0620
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X12
130J0812
Superseded by 130BB0812
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROSS
220C0425
Superseded by 220AB0425
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP PACKING
92055-1112
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,TAP LEVER
92055-1419
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,FUEL TAP
92077-1115
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1162
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1513
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,5X10X720
92190-1552
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
