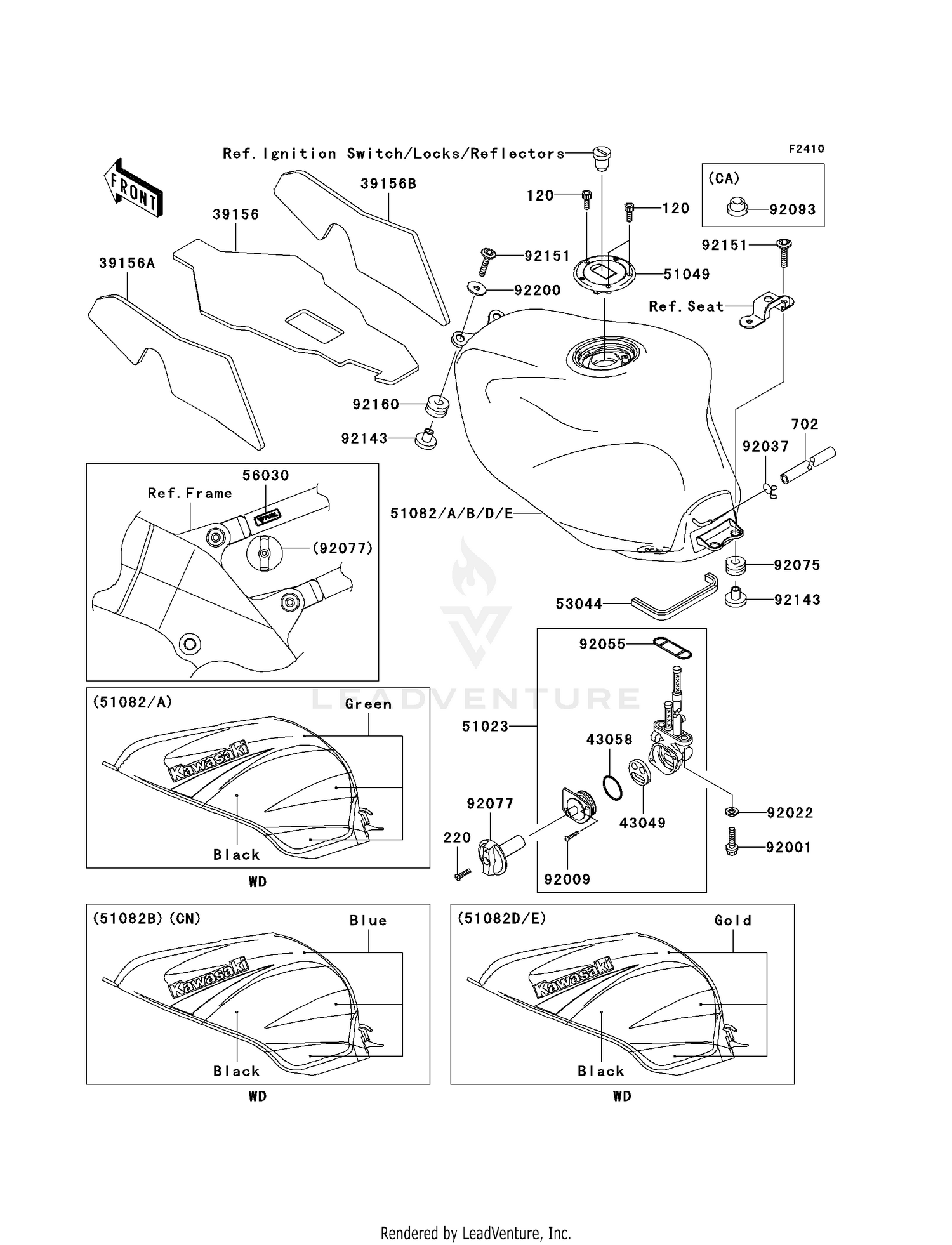

Fuel Tank (zx900-f1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39156
PAD,FUEL TANK,CNT
39156-1600
|
$81.65 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK,LH
39156-1601
|
$26.43 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK,RH
39156-1602
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,TAP VALVE
43049-1099
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING
43058-1083
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1318
|
$126.67 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1127
Superseded by 51049-0021
|
$113.41 | ||
|
Available to order. Add to View Price |
|||
|
#51082
TANK-COMP-FUEL,GREEN/
51082-5100-226
|
$1,177.64 | ||
|
Available to order. Add to View Price |
|||
|
#51082A
TANK-COMP-FUEL,GREEN/
51082-5101-226
|
$1,177.64 | ||
|
Available to order. Add to View Price |
|||
|
#51082B
TANK-COMP-FUEL,BLUE/BLACK
51082-5102-239
|
|||
|
Unavailable |
|||
|
#51082D
TANK-COMP-FUEL,BLACK/
51082-5105-230
|
$1,177.64 | ||
|
Available to order. Add to View Price |
|||
|
#51082E
TANK-COMP-FUEL,BLACK/
51082-5106-230
|
$1,177.64 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1296
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#56030
LABEL,FUEL TAP
56030-1195
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X25
92001-1524
Superseded by 92153-0514
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW PAN HEAD 3X8
92009-1386
Superseded by 220E0308
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP PACKING
92055-1112
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,FUEL TAP
92077-1123
|
$18.72 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1515
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET
120S0516
Superseded by 120CB0516
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X16
220C0416
Superseded by 220AB0416
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X9X750
702A06520
Superseded by 702A06750
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X30
92151-1605
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1162
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X22X1.6
92200-1087
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
