1999 Kawasaki NINJA ZX-9R Chassis Electrical Equipment OEM Parts

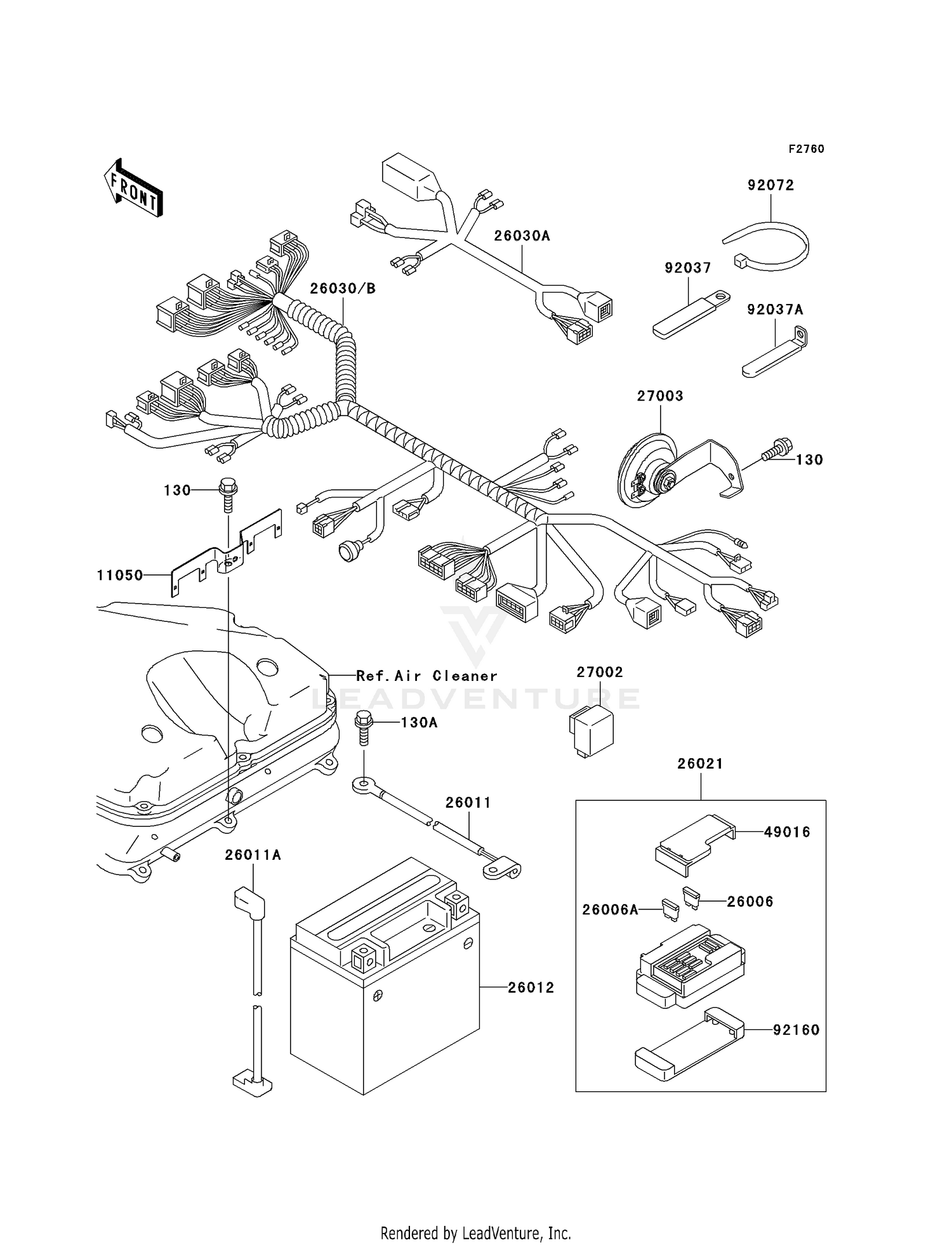

Chassis Electrical Equipment Diagram

Item	MSRP	Qty
#130 BOLT-FLANGED,6X12 130J0612 Superseded by 130BB0612	$2.28
Available to order. Add to View Price
#130A BOLT-FLANGED,6X10 130V0610 Superseded by 130BA0610	$1.17
Available to order. Add to View Price
#11050 BRACKET 11050-1791	$13.44
Available to order. Add to View Price
#26006 FUSE,BLADE,30A,GREEN 26006-1067 Superseded by 26006-1006	$4.80
Available to order. Add to View Price
#26006A FUSE,BLADE,10A,RED 26006-1068 Superseded by 26006-1007	$4.80
Available to order. Add to View Price
#26011 WIRE-LEAD,BATTERY(+) 26011-1690	$35.67
Available to order. Add to View Price
#26011A WIRE-LEAD,BATTERY(-) 26011-1691	$26.26
Available to order. Add to View Price
#26012 BATTERY,YTX9-BS,12V 8AH 26012-1326 Superseded by 26012-1524	$136.54
Unavailable
#26021 JUNCTION BOX 26021-1096 Superseded by 26021-0070	$161.47
Available to order. Add to View Price
#26030 HARNESS,MAIN 26030-1531	$437.70
Available to order. Add to View Price
#26030A HARNESS,FR 26030-1532	$101.92
Available to order. Add to View Price
#26030B HARNESS,MAIN 26030-1586	$410.13
Available to order. Add to View Price
#27002 RELAY-ASSY,TURN SIGNAL 27002-1101	$69.60
Available to order. Add to View Price
#27003 HORN 27003-1407	$77.73
Available to order. Add to View Price
#49016 COVER-SEAL,FUSE 49016-1177	$9.21
Available to order. Add to View Price
#92037 CLAMP,L=60 92037-1069 Superseded by 92171-0652	$2.54
Available to order. Add to View Price
#92037A CLAMP 92037-1608	$7.82
Available to order. Add to View Price
#92072 BAND,L=202 92072-1195	$1.53
Available to order. Add to View Price
#92160 DAMPER,JUNCTION BOX 92160-1650	$12.96
Available to order. Add to View Price
