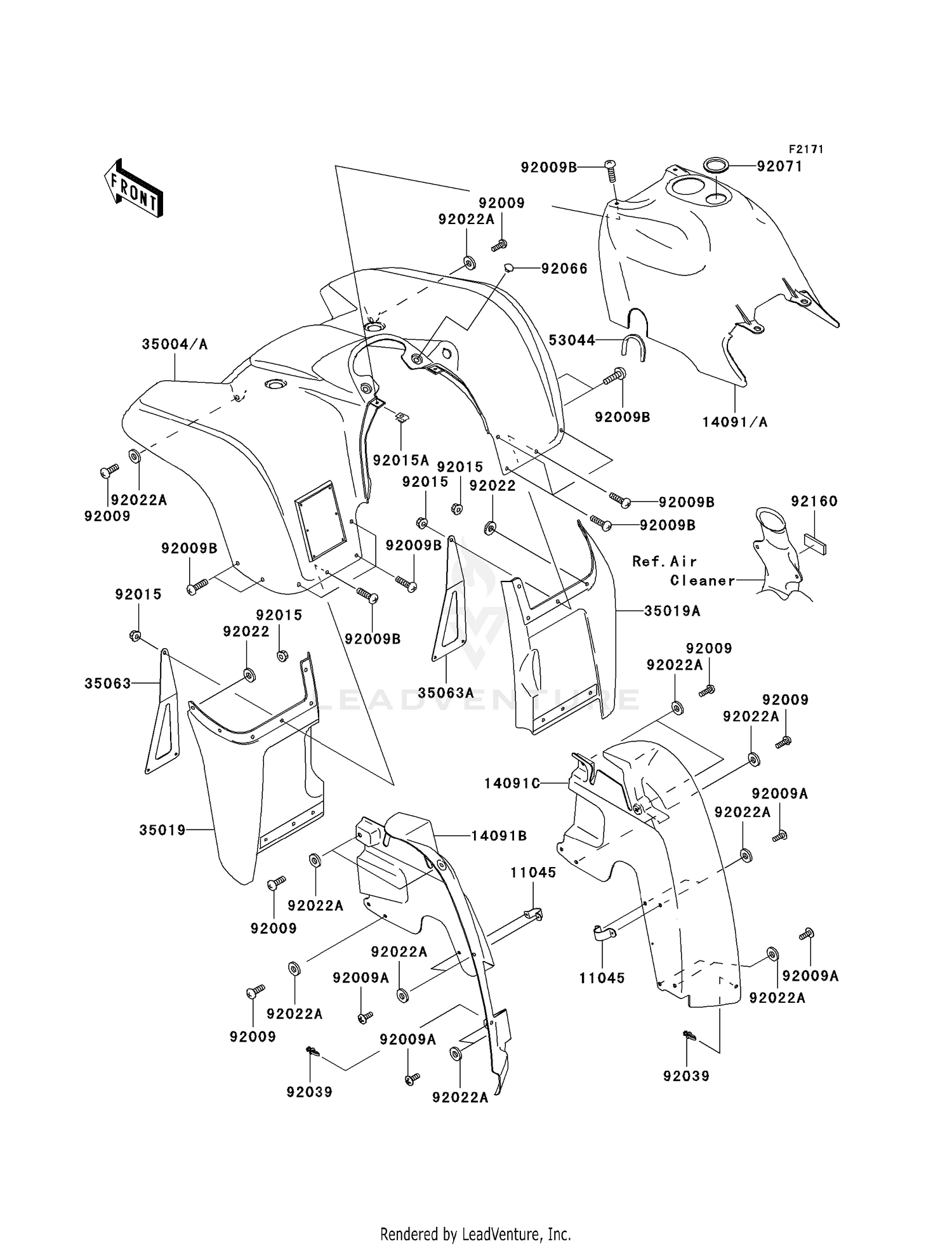

Front Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11045
BRACKET,FENDER
11045-1882
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,FUEL TANK,C.H.G
14091-0007-836
|
$56.15 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,INNER FLAP,LH
14091-7521
|
$28.90 | ||
|
Available to order. Add to View Price |
|||
|
#14091C
COVER,INNER FLAP,RH
14091-7527
|
$28.90 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,C.H.GREE
35004-0001-836
Superseded by 35004-0144-836
|
$644.39 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,FR,LH,F.BLACK
35019-0021-6Z
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,FR,RH,F.BLACK
35019-0022-6Z
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,FRONT FENDER,LH
35063-7506
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,FRONT FENDER,RH
35063-7507
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1303
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1166
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,5X14
92009-1197
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CLAMP,6MM
92015-1678
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1.0
92022-1093
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.5X20X1.6,BLACK
92022-1346
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1229
Superseded by 92039-0776
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1485
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,FUEL TANK COV
92071-7503
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1834
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
