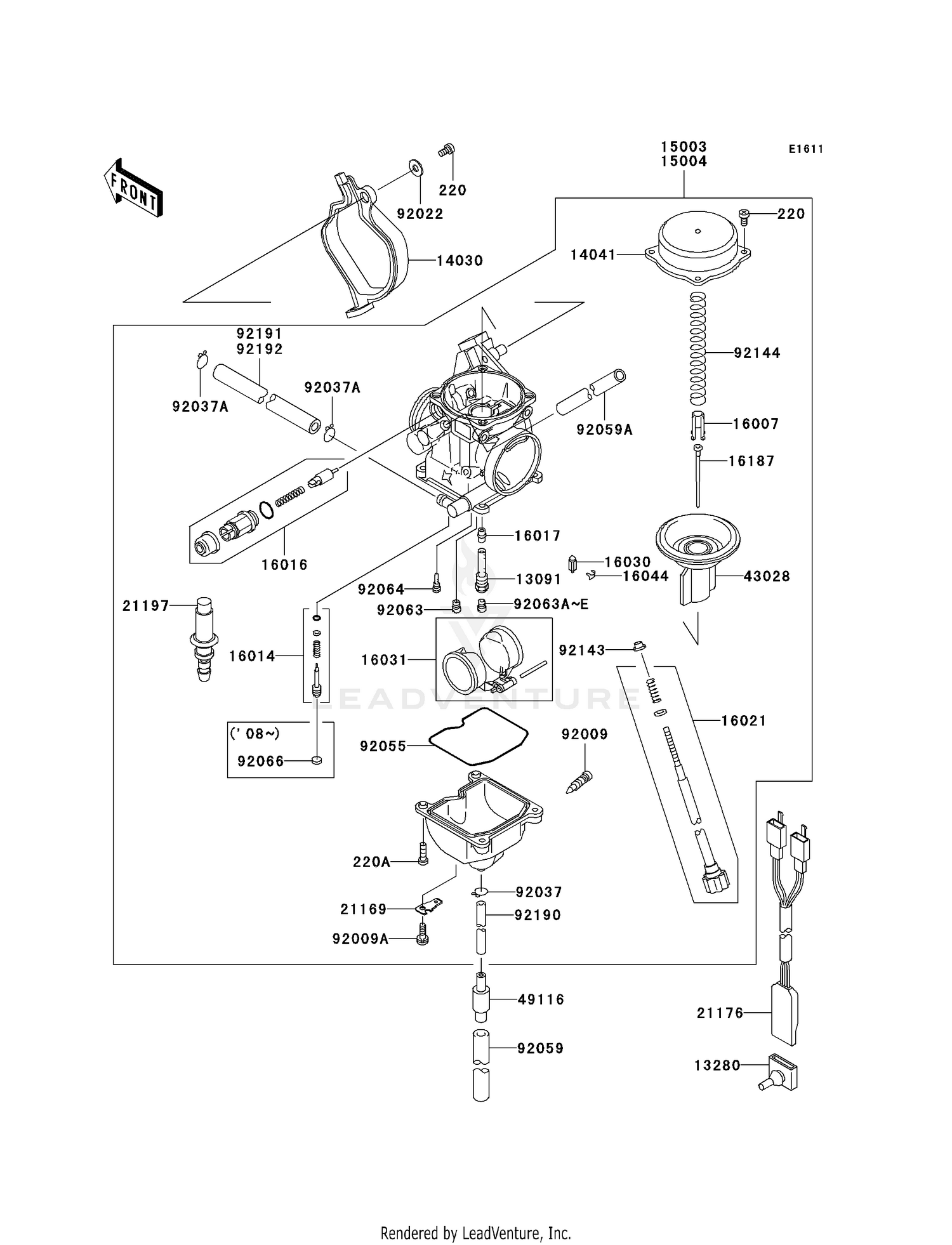

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1914
|
$29.34 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,CARBURETOR
13280-1253
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14030
COVER-CARBURETOR
14030-1054
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER,MIXING
14041-1061
Superseded by 16005-1065
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#15004
CARBURETOR-ASSY,CVK34
15004-0041
|
$617.16 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1134
|
$40.42 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1081
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1101
|
$56.24 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,#6
16017-1254
Superseded by 16017-0055
|
$46.24 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1242
|
$66.53 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,N2LQ
16187-1236
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#21169
TERMINAL
21169-1072
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,CARBURETOR
21176-1111
|
$141.91 | ||
|
Available to order. Add to View Price |
|||
|
#21197
HEATER
21197-1006
|
$102.44 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,VALVE
43028-1081
|
$178.38 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1126
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1713
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1201
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1531
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7X10X100
92059-1736
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X320
92059-1861
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,2ND,#90
92063-1003
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#150
92063-1330
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#152
92063-1331
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#155
92063-1332
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#158
92063-1344
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#160
92063-1345
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1589
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,VACUUM VALVE
92144-1066
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,4.5X8X330
92190-1557
|
$14.92 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,4.5X8.5X35
92192-0595
|
$27.45 | ||
|
Available to order. Add to View Price |
|||
