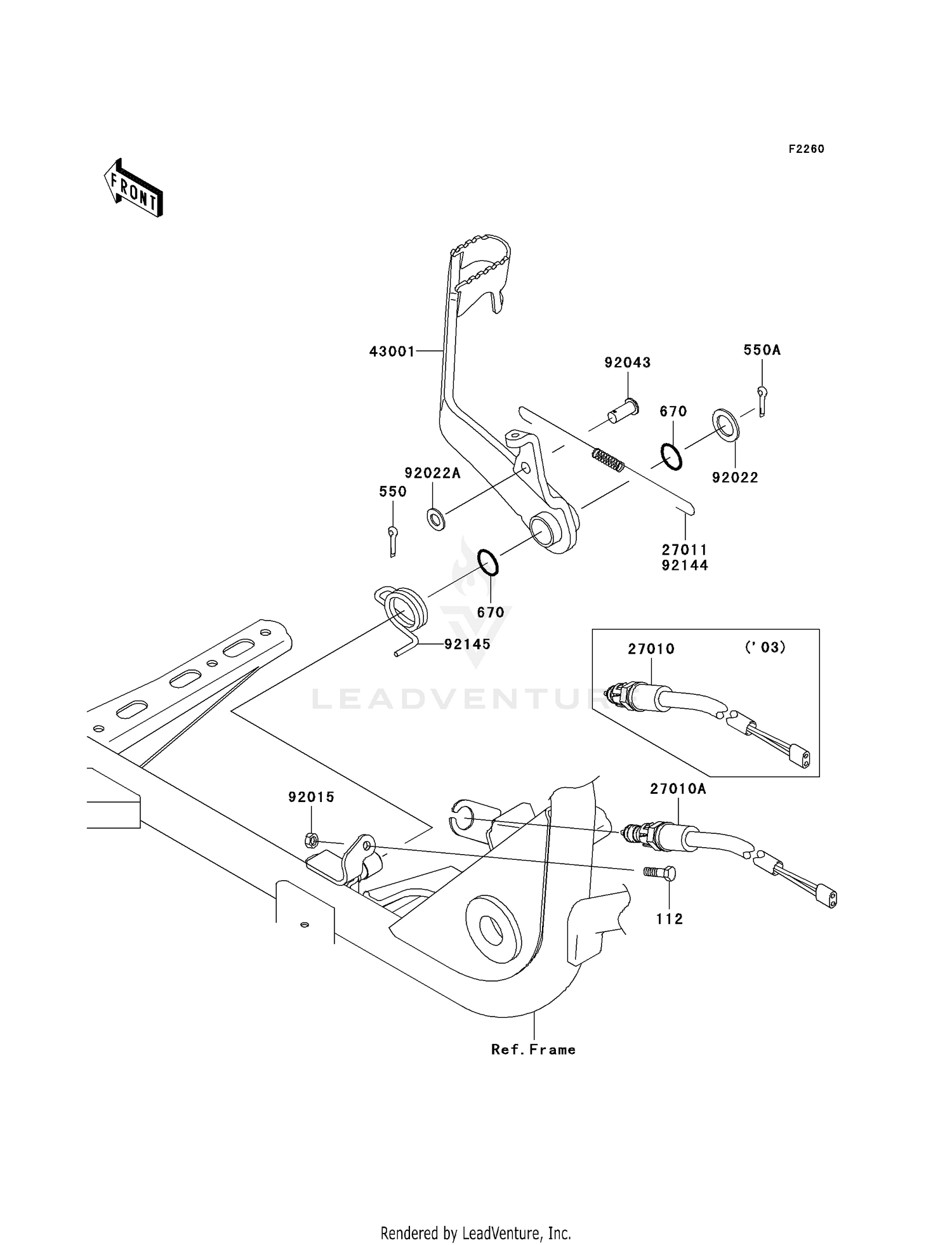

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET,6X22
112D0622
Superseded by 112AA0622
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN-COTTER,2.0X22
550D2022
Superseded by 550AA2022
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,15MM
670B2015
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,BRAKE
27010-1494
|
$48.53 | ||
|
Available to order. Add to View Price |
|||
|
#27011
SPRING,BRAKE LIGHT SW
27011-015
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-7501
|
$41.15 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1410
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,15.5X24X1.6
92022-1049
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-PLAIN-SMALL,8MM
92022-1582
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X16
92043-1013
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,BRAKE PEDAL RE
92145-7503
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
