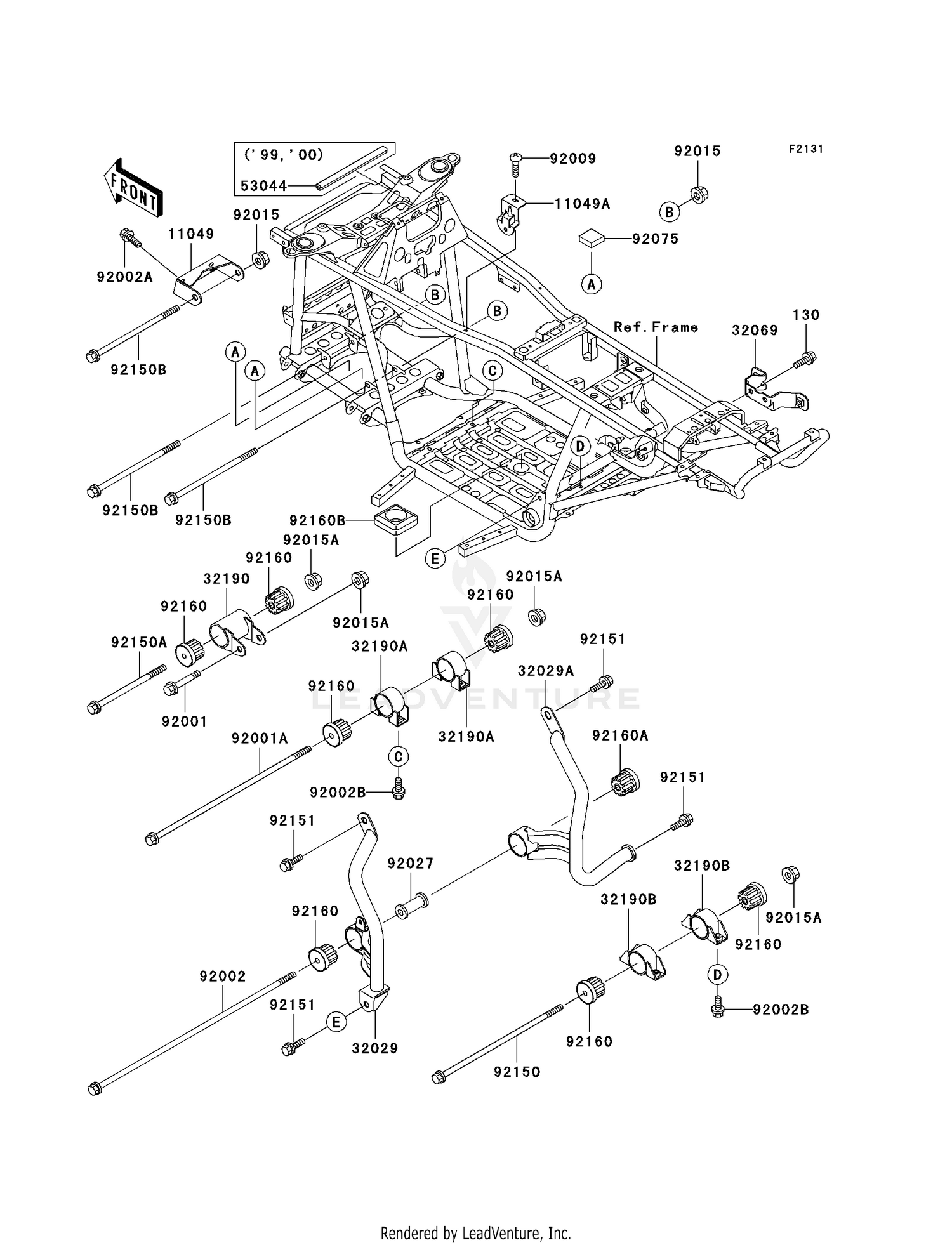

1999 Kawasaki PRAIRIE 400 4X4 FRAME FITTINGS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X14
130J0814
Superseded by 130CB0814
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#11049
BRACKET,DIFF MOUNT
11049-1524
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11049A
BRACKET
11049-1738
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#32029
BRACKET-ENGINE,RR,UPP
32029-1970
|
$26.43 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE,RR,UPP
32029-1971
|
$26.43 | ||
|
Available to order. Add to View Price |
|||
|
#32069
BRACKET-MUFFLER
32069-1547
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#32190
BRACKET-ENGINE,HEAD
32190-1078
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#32190A
BRACKET-ENGINE,FR,LWR
32190-1096
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#32190B
BRACKET-ENGINE,RR,LWR
32190-1097
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1306
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X70
92001-1600
Superseded by 92001-1618
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,10X225,B
92001-1622
|
$22.12 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X230
92002-1531
|
$19.34 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,8X14
92002-1589
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,8X16
92002-1645
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1166
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1727
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=54MM.
92027-275
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK,RR
92075-1483
|
$10.37 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,10X173.5
92150-1493
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED,10X100
92150-1731
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,FLANGED,10X120
92150-1831
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,10X16
92151-1137
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,ENGINE MOUNT
92160-1692
|
$30.94 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,ENGINE MOUNT
92160-1759
|
$29.77 | ||
|
Available to order. Add to View Price |
|||
|
#92160B
DAMPER
92160-1772
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
