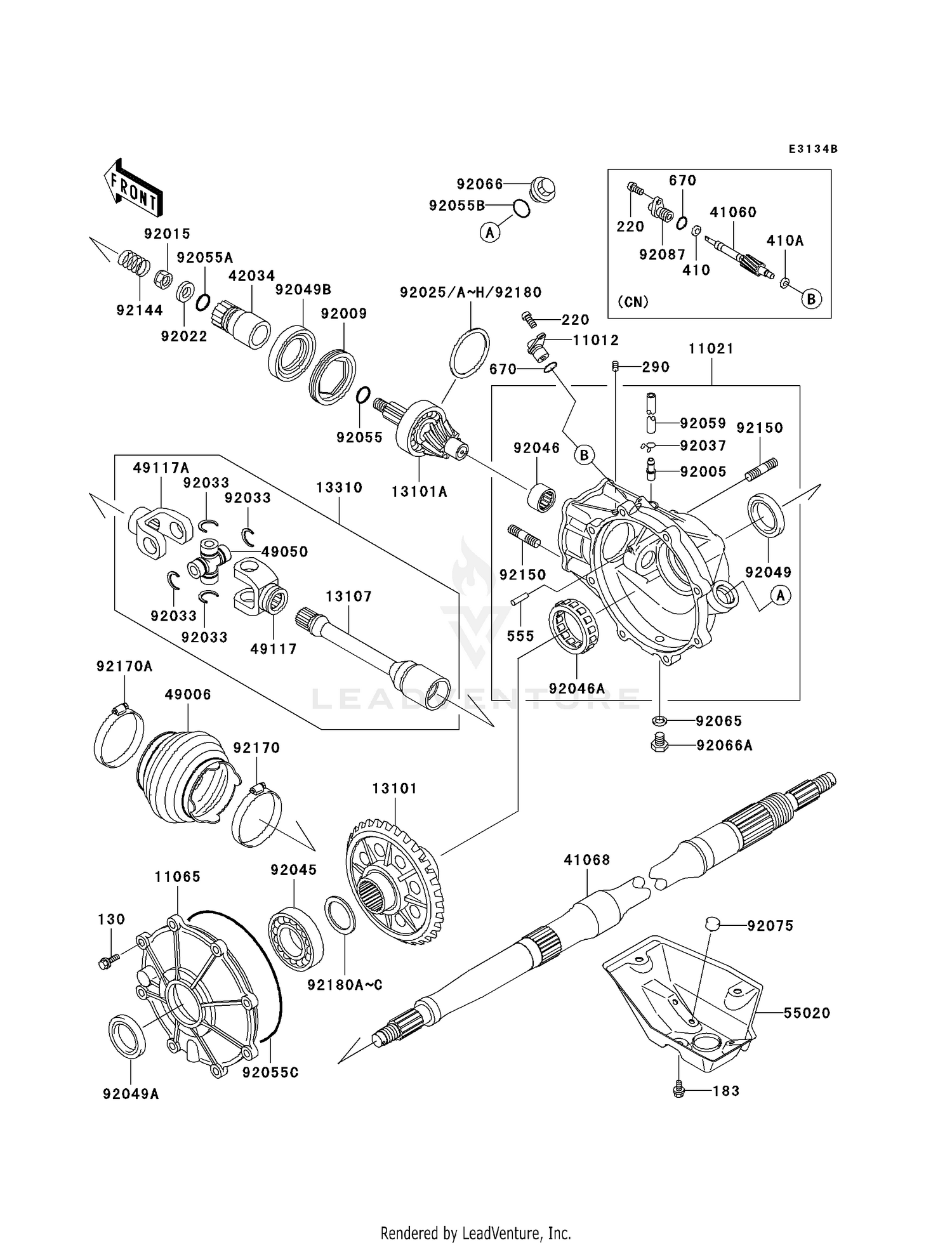

Drive Shaft (rear) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,METER GEAR
11012-1650
|
$23.72 | ||
|
Available to order. Add to View Price |
|||
|
#11021
CASE-ASSY,DRIVE SHAFT
11021-1126
|
$261.85 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-1103
|
$192.74 | ||
|
Available to order. Add to View Price |
|||
|
#13101
GEAR-ASSY,BEVEL
13101-1236
Superseded by 13101-1286
|
$311.85 | ||
|
Available to order. Add to View Price |
|||
|
#13101A
GEAR-ASSY,BEVEL
13101-1237
|
$210.19 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-1351
|
$140.61 | ||
|
Available to order. Add to View Price |
|||
|
#13310
SHAFT-ASSY
13310-1016
|
$192.87 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR-METER SCREW
41060-1157
|
$36.65 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE
41068-1388
|
$384.40 | ||
|
Available to order. Add to View Price |
|||
|
#42034
COUPLING
42034-1145
|
$134.10 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1307
|
$28.69 | ||
|
Available to order. Add to View Price |
|||
|
#49050
SPIDER
49050-1057
|
$104.33 | ||
|
Available to order. Add to View Price |
|||
|
#49117
YOKE,DRIVE
49117-1083
|
$58.39 | ||
|
Available to order. Add to View Price |
|||
|
#49117A
YOKE,DRIVE
49117-1084
|
$58.39 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD
55020-1551
|
$20.29 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-1127
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1528
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,12MM
92015-1182
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12X3X25X3.2
92022-1293
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM,52.5X61.5X0.15
92025-1669
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92025A
SHIM,52.5X61.5X0.18
92025-1670
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92025B
SHIM,52.5X61.5X0.8
92025-1671
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92025C
SHIM,52.5X61.5X0.9
92025-1672
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92025D
SHIM,52.5X61.5X1.0
92025-1673
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92025E
SHIM,52.5X61.5X1.1
92025-1674
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92025F
SHIM,52.5X61.5X1.2
92025-1675
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92025G
SHIM,52.5X61.5X1.3
92025-1676
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92025H
SHIM,52.5X61.5X1.4
92025-1677
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1283
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING,BALL,#6009
92045-1015
|
$34.52 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,NK20/1
92046-1183
|
$39.66 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE
92046-1247
|
$50.60 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1248
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL
92049-1460
|
$19.39 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-012
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X25
130P0825
Superseded by 130CA0825
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183H0814
Superseded by 183BA0814
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220X0614
Superseded by 220AD0614
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW-SET-SOCKET
290Q0612
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#555
PIN-SPRING
555A0422
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,12MM
670B2012
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-0,27MM
92055-1119
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,25.7X2.4
92055-1136
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,154.1X2.5
92055-1410
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,4.7X8.5X900
92059-1929
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1303
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG
92066-1490
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBB OIL TANK
92075-021
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92087
BUSHING-METER GEAR
92087-1057
|
$23.46 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1278
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X22
92150-1197
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1763
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1764
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#92180
SHIM,52.5X61.5X0.10
92180-1115
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#92180A
SHIM,T=1.0
92180-1205
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92180B
SHIM,T=0.1
92180-1206
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#92180C
SHIM,T=0.5
92180-1207
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
