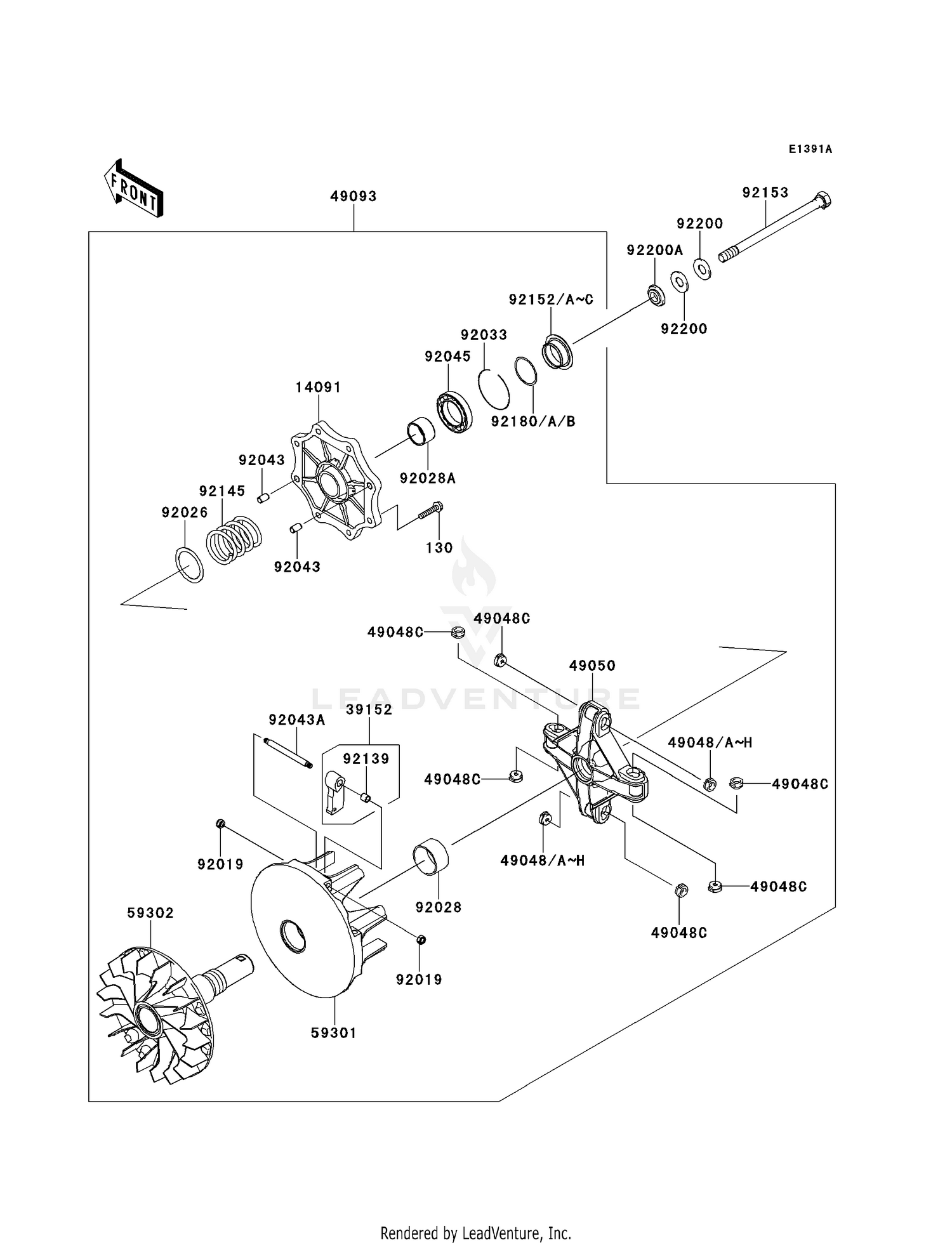

Drive Converter (vf750de082165-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130CA0630
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-1804
|
$52.00 | ||
|
Available to order. Add to View Price |
|||
|
#39152
WEIGHT-RAMP
39152-0026
|
$55.58 | ||
|
Available to order. Add to View Price |
|||
|
#49048
SHOE,T=7.2
49048-1087
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048A
SHOE,T=7.3
49048-1088
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048B
SHOE,T=7.4
49048-1089
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048C
SHOE,T=7.5
49048-1090
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048D
SHOE,T=7.6
49048-1091
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048E
SHOE,T=7.7
49048-1092
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048F
SHOE,T=7.8
49048-1093
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048G
SHOE,T=7.9
49048-1094
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048H
SHOE,T=8.0
49048-1095
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49050
SPIDER
49050-0016
|
$140.51 | ||
|
Available to order. Add to View Price |
|||
|
#49093
CONVERTER-ASSY-DRIVE
49093-0063
Superseded by 49093-0088
|
$1,049.08 | ||
|
Unavailable |
|||
|
#59301
SHEAVE-MOVABLE
59301-0007
|
$225.23 | ||
|
Available to order. Add to View Price |
|||
|
#59302
SHEAVE-COMP,FIXED
59302-0080
|
$339.00 | ||
|
Available to order. Add to View Price |
|||
|
#92019
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,39X49.5X1.0
92026-1603
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1975
Superseded by 92139-1244
|
$12.35 | ||
|
Unavailable |
|||
|
#92028A
BUSHING
92028-1980
Superseded by 92139-1243
|
$7.63 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP
92033-0063
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN
92043-1688
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6907DDG8C4 S6NS
92045-1453
|
$32.37 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING
92139-0215
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1465
|
$25.81 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,T=1.6
92152-1436
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,T=3.0
92152-1437
|
$27.84 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,T=2.3
92152-1438
|
$26.52 | ||
|
Available to order. Add to View Price |
|||
|
#92152C
COLLAR,T=3.7
92152-1440
|
$28.68 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,12X180
92153-1726
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#92180
SHIM,35X40X0.10
92180-1378
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92180A
SHIM,35X40X0.20
92180-1379
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92180B
SHIM,35X40X0.30
92180-1380
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,SPRING
92200-1504
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1634
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
